GY-50 L3G4200D 3-Axis Digital Gyroscope Sensor Angular Velocity Module IIC/SPI Communication ProtocolItem NO.: GY-50
-
Customized Requirements
- Quantity
-
-
- Product Name: GY-50 L3G4200D 3-Axis Digital Gyroscope Sensor Angular Velocity Module IIC/SPI Communication Protocol
- Item NO.: GY-50
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: 3-Axis , GY-50 , L3G4200D , Digital Gyroscope Sensor
- Creation Time: 2024-05-10

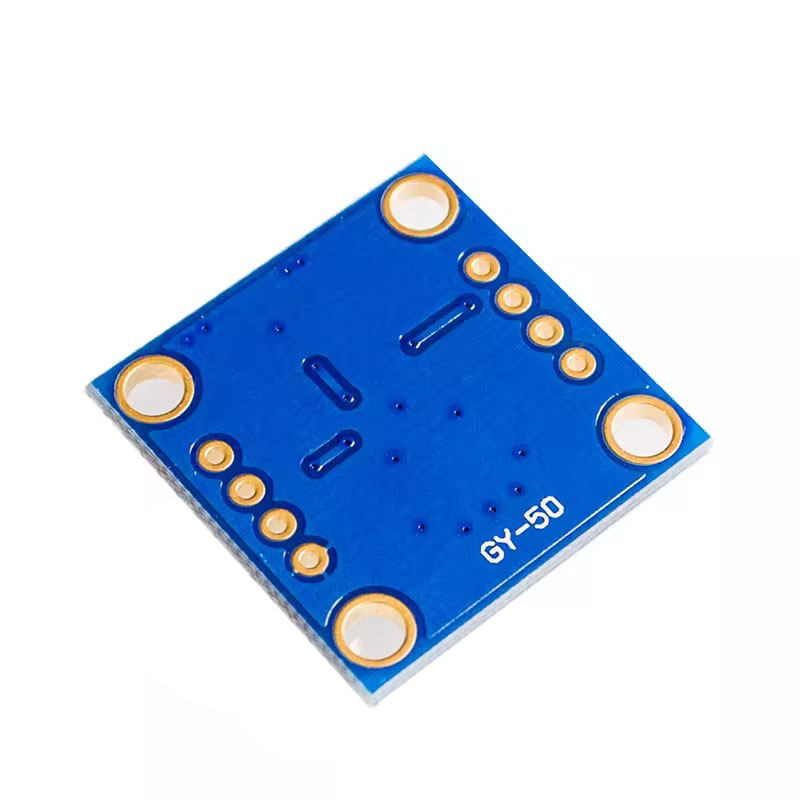

GY-50 L3G4200D 3-Axis Digital Gyroscope Sensor
Product Information:
● Product name: L3G4200D module (three-axis gyroscope module)
● Chip used: L3G4200D
● Power supply: 3-5 V
● Communication mode: IIC/SPI communication protocol
● Measuring range: 250/500/2000dps
Scope Of Application:
It is mainly used for infrared, pressure, acceleration sensors, and communication to measure the angular velocity of machinery or equipment. For example, when the helicopter is just started, because the fuselage has a reaction force with respect to the main propeller to prevent the fuselage from spinning, the gyroscope measures the angular velocity of the current fuselage from spinning, and then controls the rotation speed of the tail propeller through the processor. The tail propeller is used to counteract the reaction force, so that the fuselage remains balanced and does not spin.
Pin Definition:
● GND: ground
● SDA: 12C serial data line/4-wire SPI serial data input/3-wire SPI serial data input/output
● SLC: 12C serial clock cable/SPI serial clock port
● VCC: positive power supply
● SDO: 12C address selection pin/4-wire SPI serial data output
● CS: film selection
● DR: Data Ready/FIFO Terminal
● INT: interrupt pin
Instructions:
The 12C device address of the module in 12C mode is determined by the level of SDO pin
● When SDO=0, the address of 12C device is 1101 000X (X is the read/write selection bit)
● When SDO=0, the address of 12C device is 1101 000X (X is the read/write selection bit)
