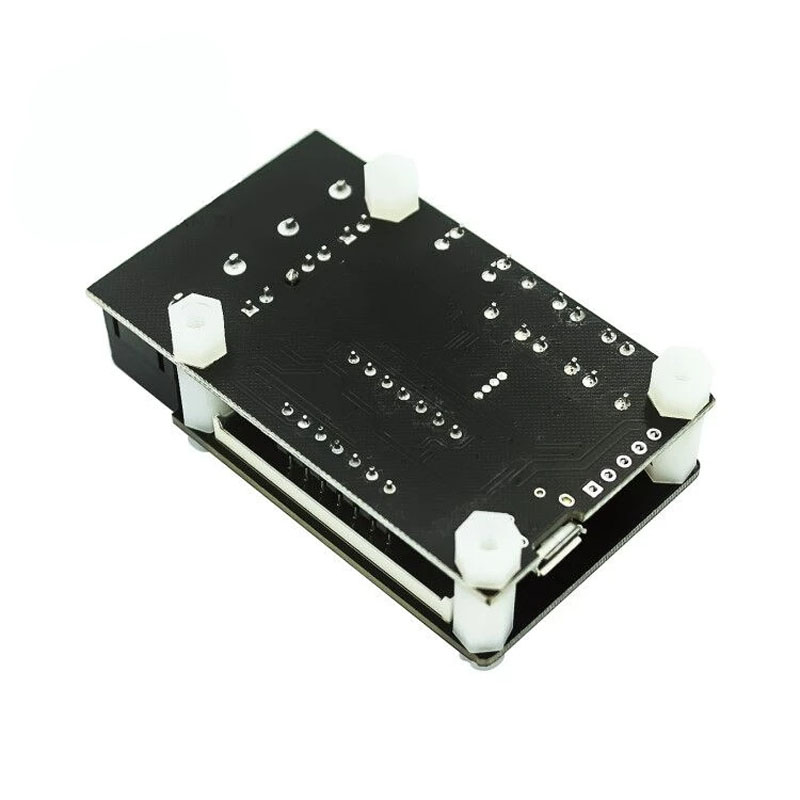

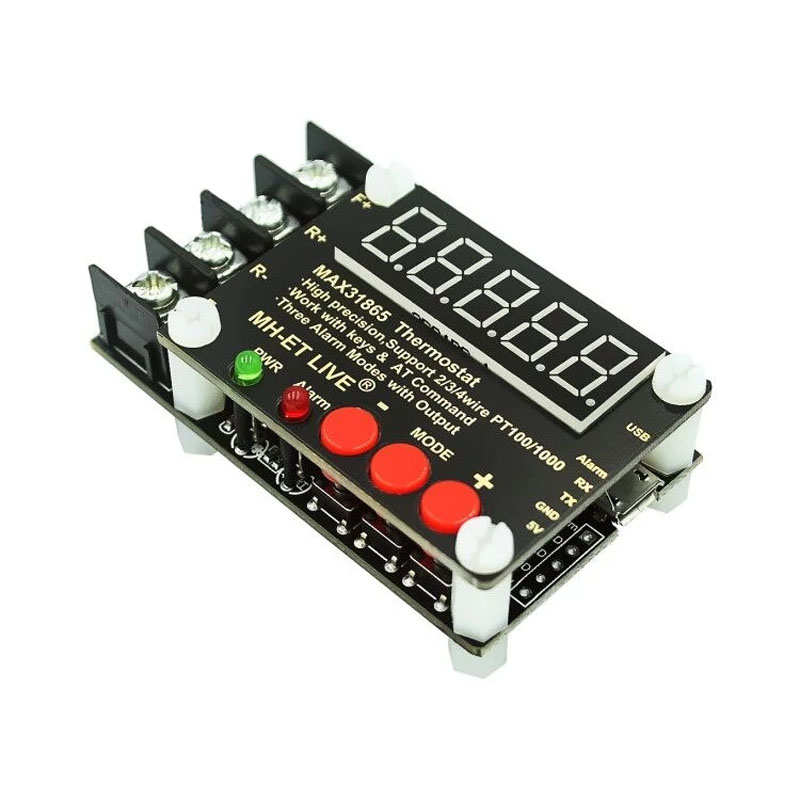

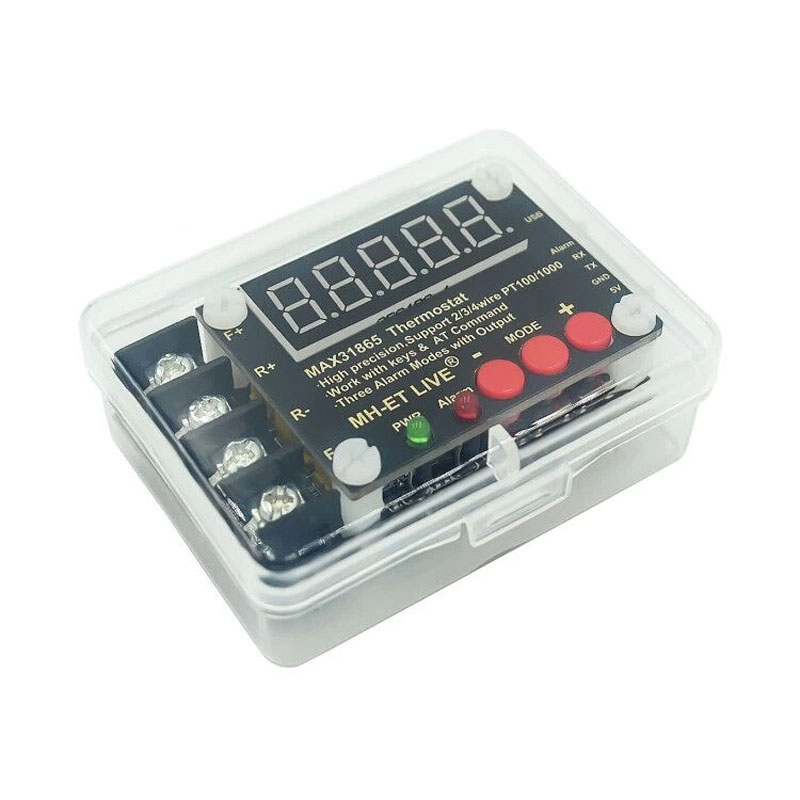

MAX31865 High-Precision Isolation Temperature Collector Module PT100 Serial Port Output Upper Computer DebuggingItem NO.: MAX31865

MAX31865 High-Precision Isolation Temperature Collector

Product Information:

● Temperature testing range: -200 ℃~50 ℃ (depending on the temperature measurement performance of the matched platinum resistor)

● Operating temperature range: -20 ℃~80 ℃

● Resolution: 0.1

● Accuracy: The total accuracy remains at 0.5% (0.05% of full scale) (depending on the matching platinum resistance temperature measurement accuracy)

● Setting method: button/serial port AT command

● Command mode: AT command

● Display mode: 0.36 inch Nixie tube displays 5-digit red

● Working voltage: DC 3.3-5V

● Working current:<100mA

● Power supply interface: MicroUSB/power port

● Data communication interface: TTL pin arrangement

● Platinum resistor interface type: compatible with 2-wire/3-wire/4-wire, fixed with KF850 terminals

● Default platinum resistance type: PT100. If PT1000 is used, the reference resistance value of the internal patch of the module needs to be changed

● Volume: length 37mm * width 62mm * height 21mm

● Fixed hole: diameter 3mm, length spacing 43mm/width spacing 30mm

● Weight: 30g

Be Careful:

1. The default support for the temperature controller is PT100 platinum resistor. If a PT1000 platinum resistor needs to be used together, the reference resistance of the temperature controller needs to be changed from 402 ohms (4020) to 4.02K ohms (4021), with an accuracy of 0.1% and a closed 0805. Please refer to the attached wiring manual for details.

2.The temperature controller is compatible with 2-wire/3-wire/4-wire platinum resistors by default. The connection methods between them and the temperature controller are different, and they need to be switched by changing the jump cap on the temperature controller. Please refer to the attached wiring manual for specific wiring methods.
