Customized Requirements
- Quantity
-
-
- Product Name: HDC1080 High-Precision Temperature And Humidity Sensor Module
- Item NO.: HDC1080
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: Temperature And Humidity Sensor Module , HDC1080
- Creation Time: 2024-05-10

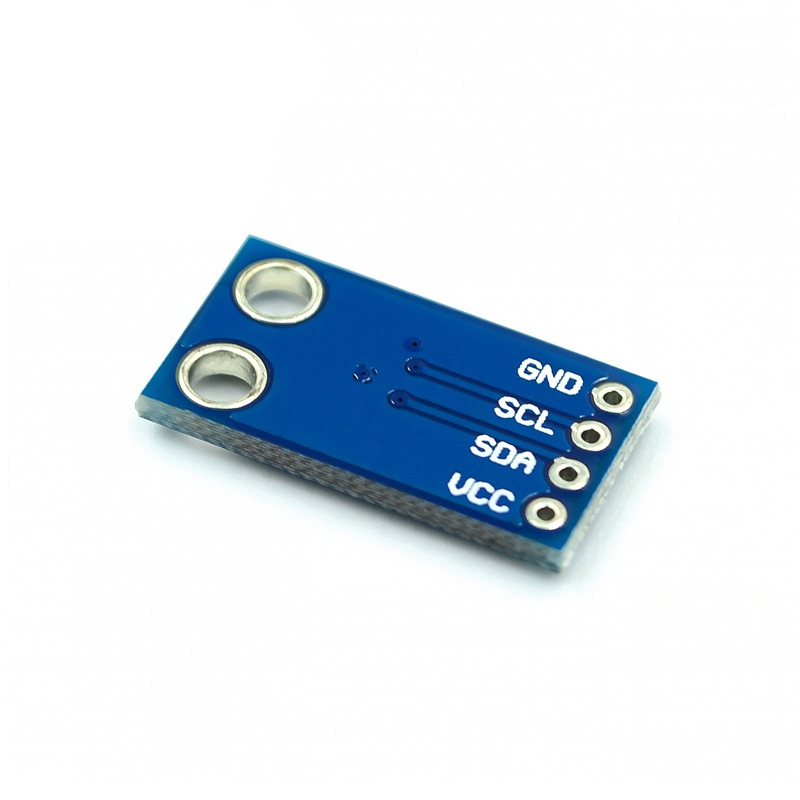

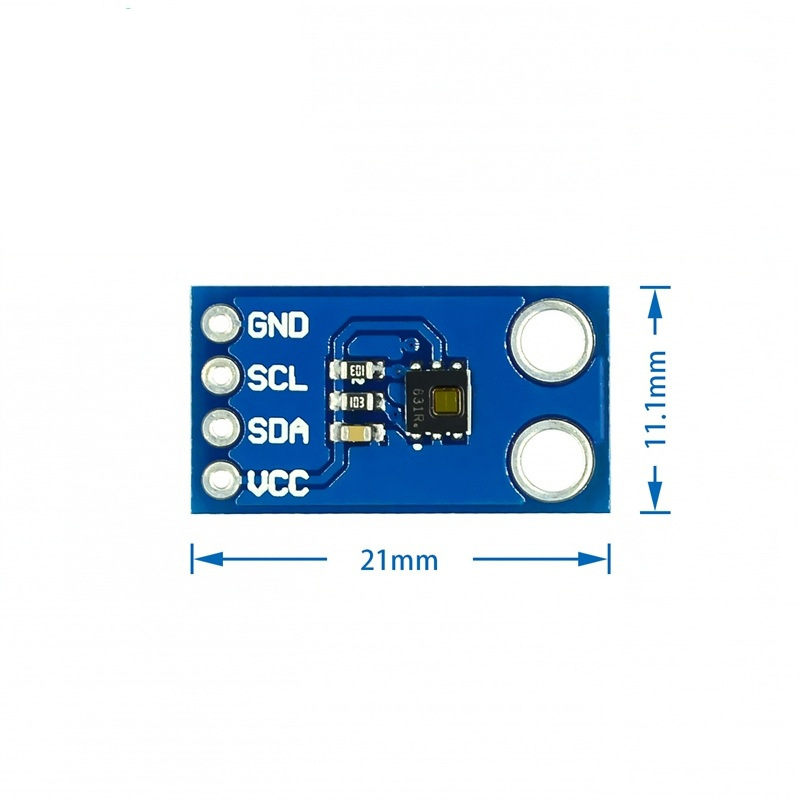

HDC1080 Temperature And Humidity Sensor
Product Overview:
HDC1080 is a digital humidity sensor with integrated temperature sensors, which can provide excellent measurement accuracy with ultra-low power consumption. HDC1080 supports a wide working power supply and voltage range, and compared to competitive solutions, this device can provide low-cost and low-power advantages for various common applications. The humidity and temperature sensors have been factory calibrated.
Product Parameters:
● Working voltage: 2.7V~5.5V
● Operating temperature: -20 ℃~+85 ℃
● Average power supply current:
1 SPS, 11 bit relative humidity measurement 710nA
1 SPS, 11 bit relative humidity and temperature measurement 1.3uA
● Sleep mode current: 100mA
● Measurement accuracy:
Relative humidity accuracy: ± 2% (typical)
Relative temperature accuracy: ± 0.2 ℃ (typical)
● Measurement resolution: 14 bits
● Communication interface: I2C
