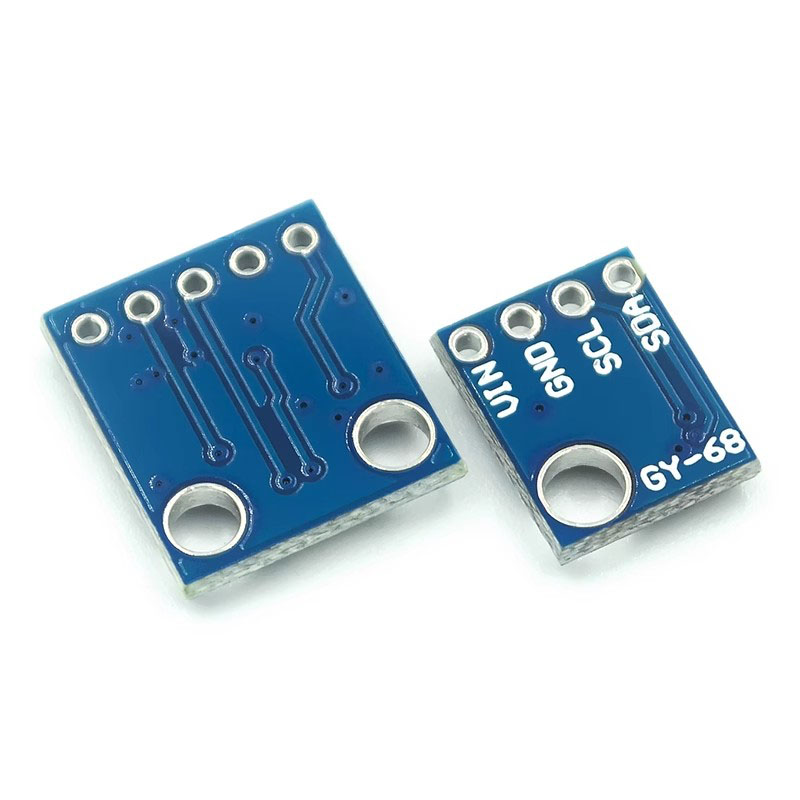

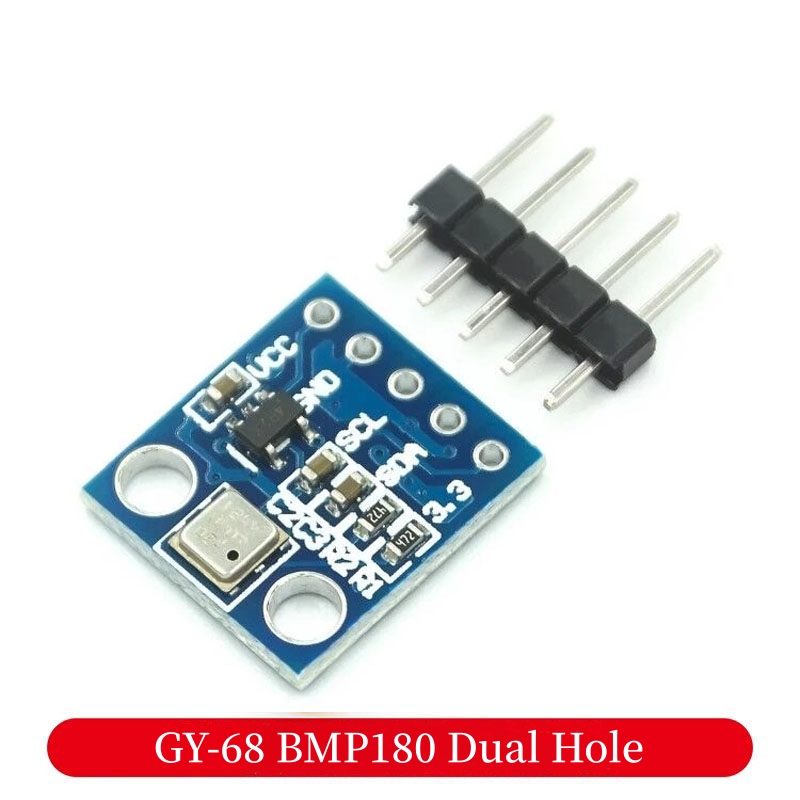

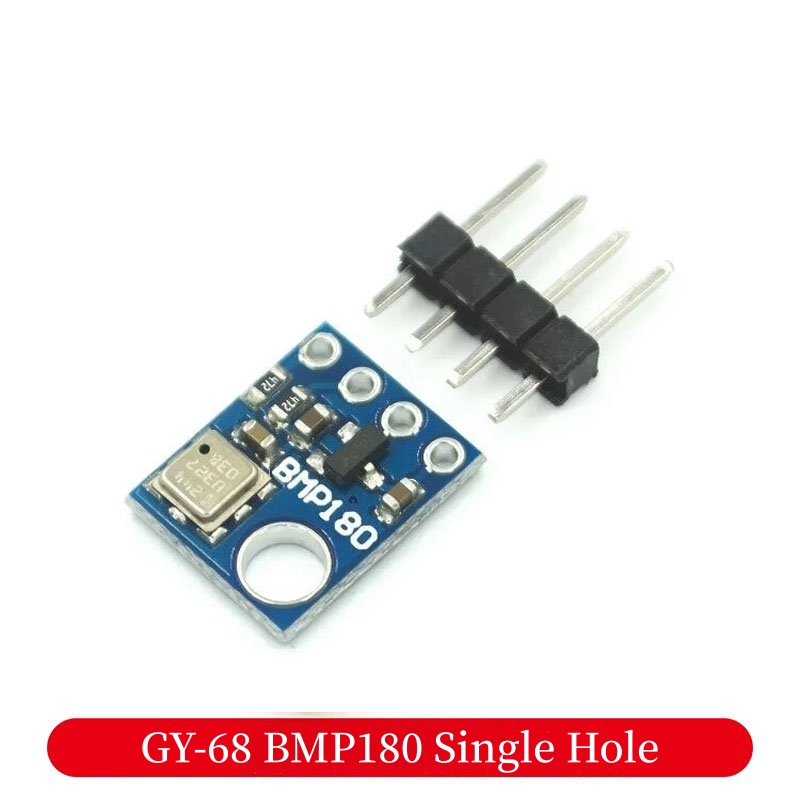

GY-68 BMP180 New Air Pressure Sensor Module Temperature Module Replaces BMP085 Single Hole Dual HoleItem NO.: GY-68
-
Customized Requirements
- Quantity
-
-
- Product Name: GY-68 BMP180 New Air Pressure Sensor Module Temperature Module Replaces BMP085 Single Hole Dual Hole
- Item NO.: GY-68
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: BMP180 , Air Pressure Sensor Module , GY-68 , Temperature Module
- Creation Time: 2024-04-15
GY-68 BMP180 New Air Pressure Sensor Module
Main Specifications:
● VCC is 5V, the output high level is 3.3V, which can be powered by 5V. There is a voltage conversion chip inside, but only one power supply mode can be selected for 5V and 3.3V. If 3.3V is selected, no more 5V can be used. If 5V is selected, no more 3.3V can be used
● BMP180 is a high-precision, small volume, and energy consuming pressure sensor, which can be used in mobile devices
● Its performance and accuracy can be 0.03hPa, and its power consumption is low, only 3 μ A
● The BMP180 is packaged with a powerful 8-pin ceramic leadless chip carrier (LCC) and can be directly connected to various microprocessors via the I2C bus
Main Features:
● Pressure range: 300~1100hPa (9000m~- 500m above sea level)
● Power supply voltage: 1.8V~3.6V (VDDA), 1.62V~3.6V (VDDD)
● LCC8 package: lead-free ceramic carrier package (LCC)

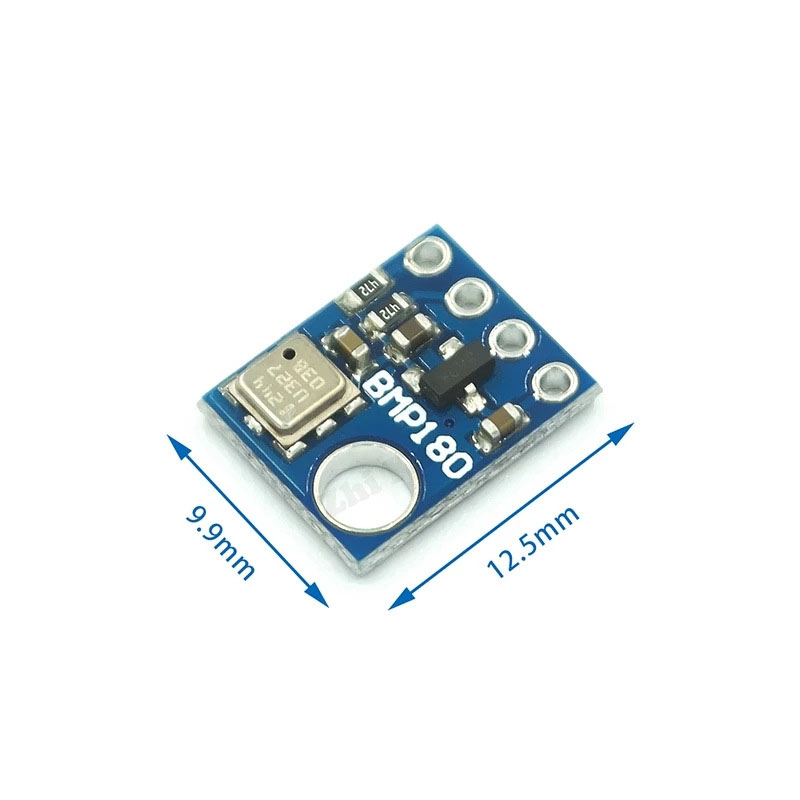

● Size: 3.6mmx3.8x0.93mm
● Low power consumption: 5 μ A. In standard mode
● High precision: under low power consumption mode, the resolution is 0.06hPa (0.5m)
● Resolution of 0.03hPa (0.25m) in high linear mode
● Including temperature output
● I2C interface
● Temperature compensation
● Lead free, RoHS compliant
● MSL 1 reaction time: 7.5ms
● Standby current: 0.1 μ A
● No external clock circuit is required
Typical Applications:
● GPS navigation (dead reckoning, upper and lower bridge detection, etc.)
● Indoor and outdoor navigation
● Monitoring of leisure, sports and medical health
● Weather forecast
● Vertical speed indication (rising/sinking speed)
● Fan power control
