GY-BMP280-3.3 High-precision Atmospheric Pressure Sensor Module Altimeter BMP280-3.3Item NO.: GY-BMP280-3.3

US$ 2.58

Quantity: 1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs

Customized Requirements

Quantity: Stock ( 49999995 )

Estimate Shipping Cost

Adding to cart succeed

GY-BMP280-3.3 High-precision Atmospheric Pressure Sensor Module Altimeter BMP280-3.3

color:red,size:xxl

Subtotal: US$ 0

View My Cart

Checkout

Detail

- Product Name: GY-BMP280-3.3 High-precision Atmospheric Pressure Sensor Module Altimeter BMP280-3.3
- Item NO.: GY-BMP280-3.3
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: Atmospheric Pressure Sensor Module , GY-BMP280-3.3 , BMP280-3.3
- Creation Time: 2024-04-15

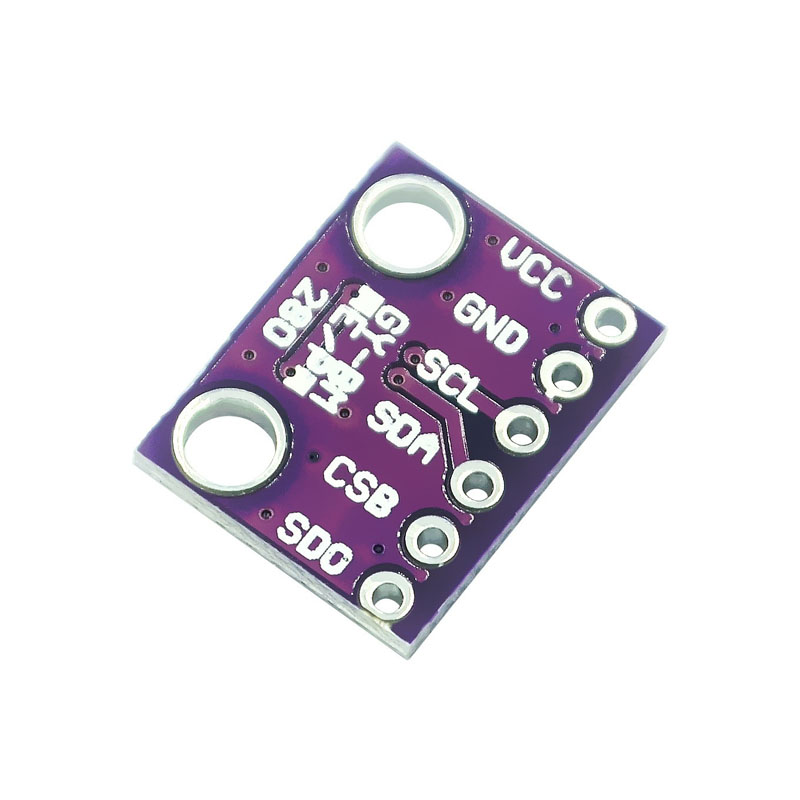

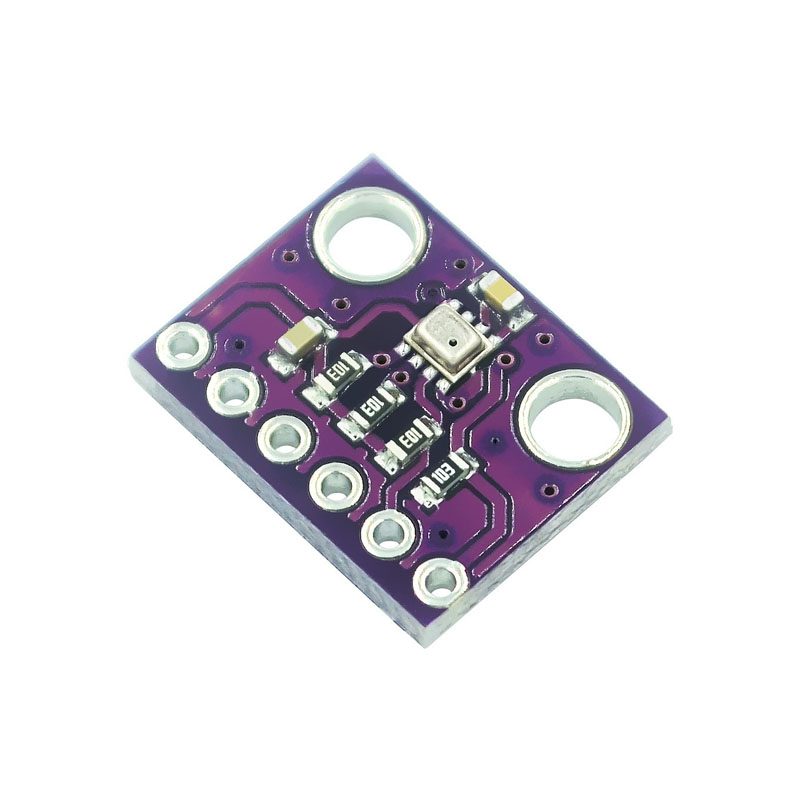

GY-BMP280-3.3V Atmospheric Pressure Module

Product Information:

The BMP280 air pressure sensor is designed for mobile applications. The sensor module is used in a very compact package. Its small size and low power consumption allow the realization of devices such as battery powered mobile phones, GPS modules or watches.

The proven piezoresistive pressure sensor technology of BMP280 has electromagnetic compatibility with high accuracy, linearity, long-term stability and robustness. Many device operation options provide flexibility, optimized power consumption, and filter performance. A test example is used when the default setting is for developers to make the design as simple as possible.

Product Parameters:

● BMP280 module, atmospheric pressure sensor module

● Module model: GY-BMP280-3.3

● Chip used: BMP280

● Power supply: 3v

● Communication mode: standard IIC/SPI communication protocol

● Air pressure range: 300-1100hPa

● Adopt the gilt PCB, and the machine welding process ensures the quality

● Pin pitch: 2.54mm

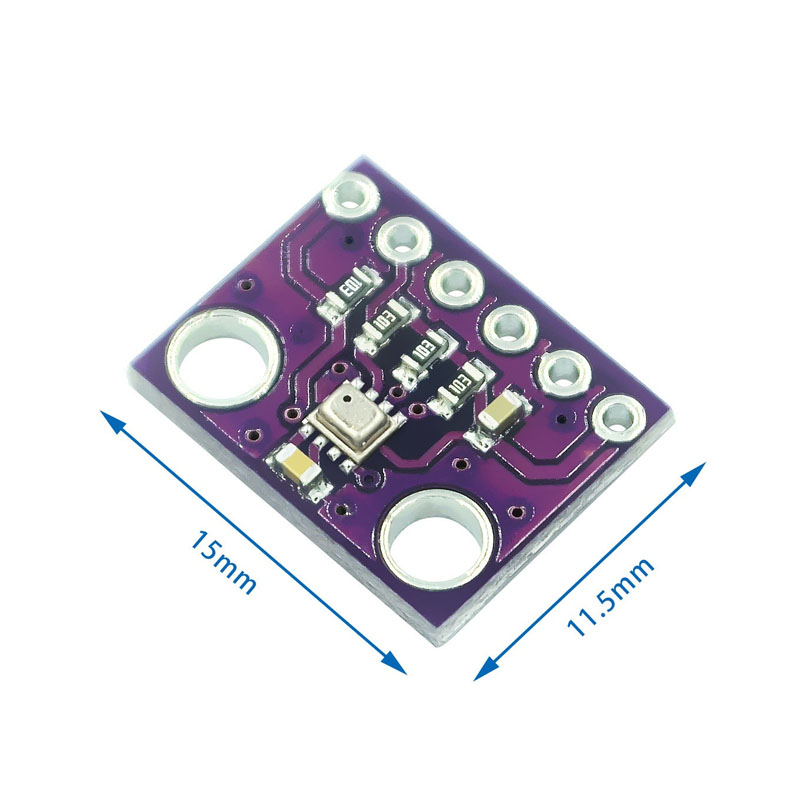

● Module size: 11.5mm * 15mm

Scope Of Application:

● GPS navigation enhancement (such as improvement of time advance repair, dead reckoning, slope detection)

● Indoor navigation (ground detection, elevator detection)

● Outdoor navigation, leisure and sports applications

● Health applications (e.g. spirometry)

● Vertical speed indication (such as rising or sinking speed)

● Weather forecast, altitude measurement, fitness and sports, etc.
