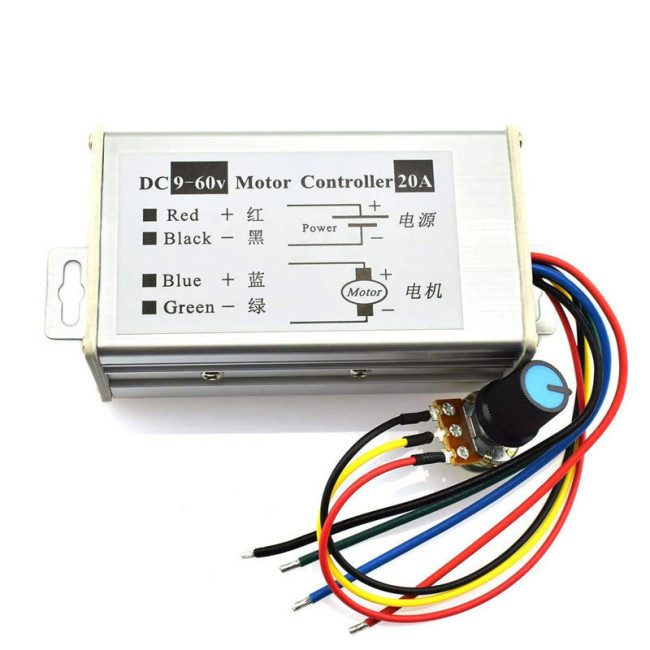

PWM DC Motor Stepless Speed Change Pulse Width Motor Speed Control Switch 9V12V24V48V60V Governor 20AItem NO.: PWM DC governor 20A
-
Customized Requirements
- Quantity
-
-
- Product Name: PWM DC Motor Stepless Speed Change Pulse Width Motor Speed Control Switch 9V12V24V48V60V Governor 20A
- Item NO.: PWM DC governor 20A
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 20A , PWM DC Motor Stepless Speed Change , Pulse Width Motor Speed Control Switch , 9V12V24V48V60V , Governor
- Creation Time: 2024-04-09

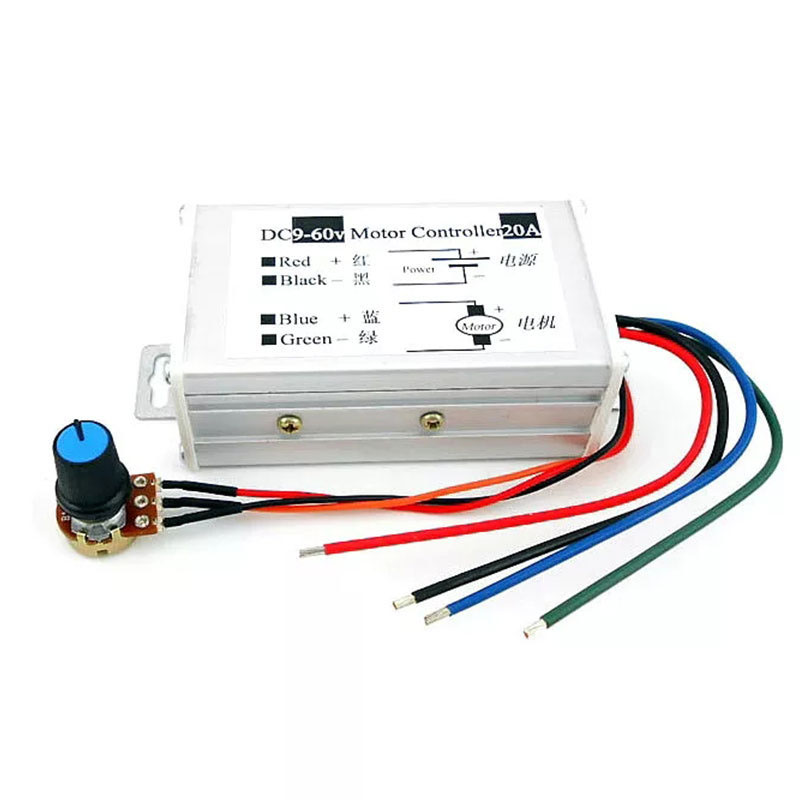

PWM DC Motor Stepless Speed Governor 20A
Product Parameters:
● Product name: 20A-19S
● Working voltage: DC9V-60V
● Output voltage: linear under load
● Maximum current: 20A
● Continuous current: 18A
● Speed regulation range: 0% -100%
● Control frequency: 25KHZ
● Speed regulation mode: Potentiometer
● Speed regulation type: current regulation

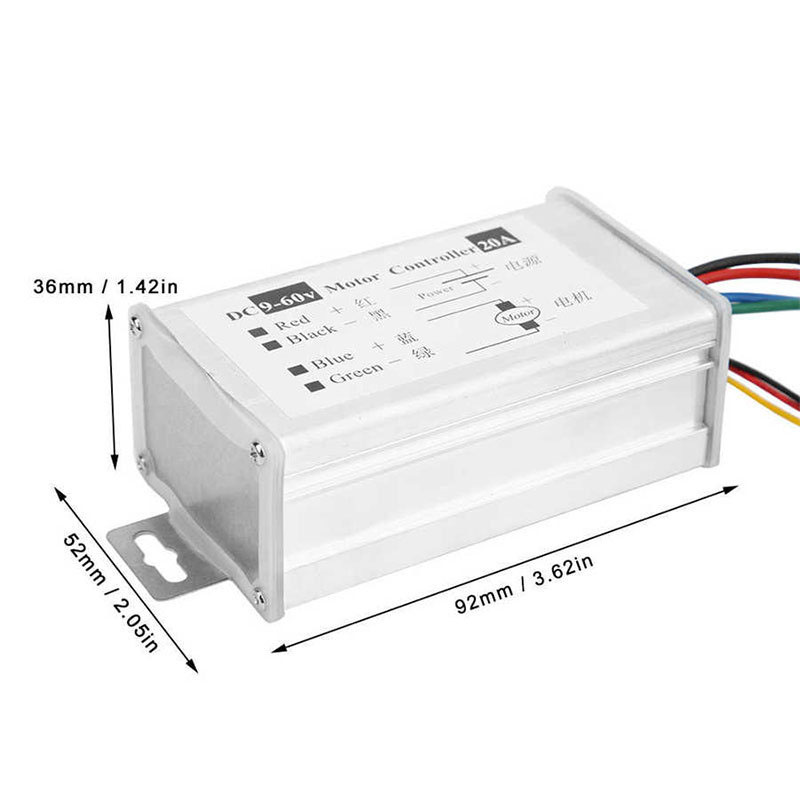

● Main board size: 92MM * 52MM * 36MM long
● Product net weight: 130 grams
● According to the installation size: the Centre-to-centre distance of the back fixing hole is 104MM
● Hole for Potentiometer installation: 7MM

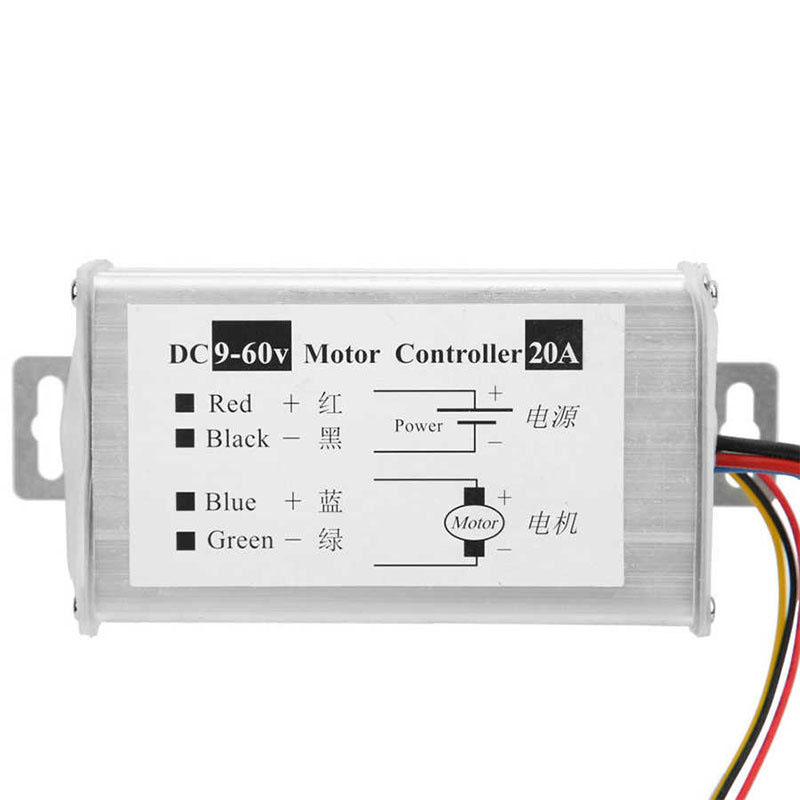

Wiring Method:
● Red wire connection: power supply positive+
● Black wire connection: power negative-
● Blue wire connection: motor positive+
● Green wire connection: motor negative-
Special Reminder:
1. The DC motor governor should not be directly connected to household 220V AC power when connected to a DC power source.
2. This is not a power module, and a motor must be connected to adjust the speed. Without the motor, the output of the multimeter remains unchanged.
3. The motor can be connected without distinguishing between positive and negative. When the running direction is not consistent with the expected direction, the direction can be changed by adjusting the wire sequence.
Please Note:
1. This governor is used for DC brushless motors.
2. Not suitable for speed regulation of DC brushless motors; It cannot be used as a Pressure regulator or voltage stabilizer!
