HC-SR04+ Upgraded Ultrasonic Distance Measurement Module Wide Voltage 3.3V-5V Ultrasonic SensorItem NO.: HC-SR04+
-
Customized Requirements
- Quantity
-
-
- Product Name: HC-SR04+ Upgraded Ultrasonic Distance Measurement Module Wide Voltage 3.3V-5V Ultrasonic Sensor
- Item NO.: HC-SR04+
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: Upgraded , Wide Voltage , 3.3V-5V , HC-SR04+ , Ultrasonic Distance Measurement Module , Ultrasonic Sensor
- Creation Time: 2024-04-12

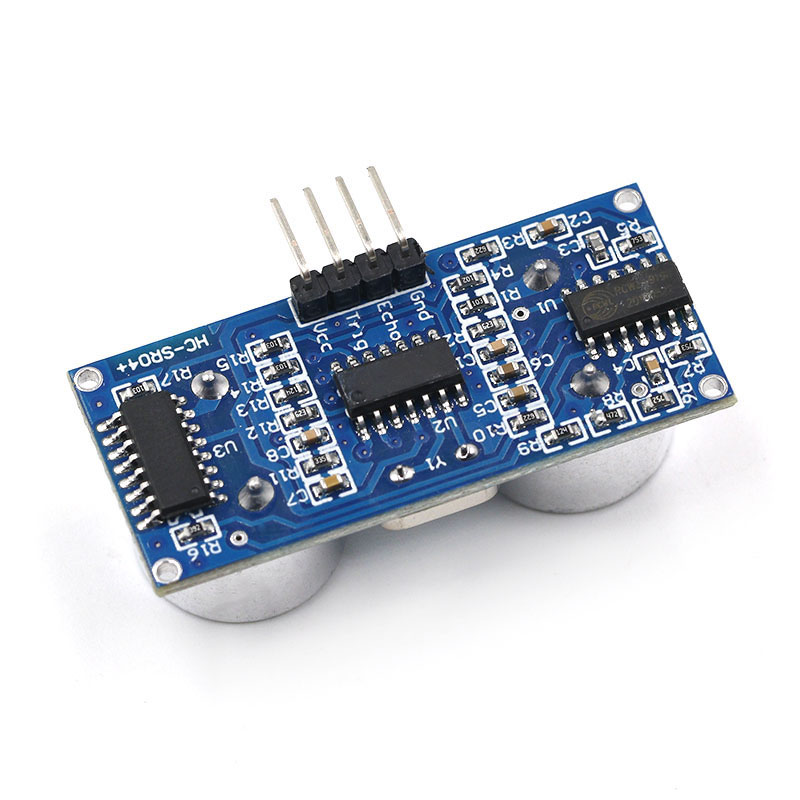

HC-SR04+ Ultrasonic Ranging Module
Product Overview:
HC-SR04+ is an ultrasonic ranging module that operates at a wide voltage. The overall dimensions and software of the module are fully compatible with the old version of HC-SR04, and can be switched infinitely with the old version of HC-SR04. The working voltage as low as 3V allows it to be directly connected to a 3.3V powered MCU.
Product Features:
● Wide voltage operation: 3.3V-5V
● Fully compatible with HC-SR04 software and hardware dimensions
● Detection distance:
5V：2cm-450cm
3.3V：2cm-400cm
● Detection angle:<15 degrees
● Adopt industrial grade MCU
● Working temperature: - 20 ℃ - 80 ℃
