DC-DC Power Step-up Module 200W High-Power Boost Module 6-35V Up To 6-55V With Aluminum CasingItem NO.: MK00131
-
Customized Requirements
- Quantity
-
-
- Product Name: DC-DC Power Step-up Module 200W High-Power Boost Module 6-35V Up To 6-55V With Aluminum Casing
- Item NO.: MK00131
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: Boost Module , DC-DC , Power Step-up Module , 6-35V Up To 6-55V
- Creation Time: 2024-05-13
200W High Power Boost Module
Product Features:
This module is a high-power boost module with wide voltage input and output, convenient for DIY power supply, high conversion efficiency, large output power, adjustable output voltage, and can be adjusted to any voltage within the range, meeting most of your voltage needs.
Product Parameters:
● Input voltage: 6-35V
● Output voltage: 6-55V
● Conversion efficiency 97.6% (measured when inputting 32V and outputting 45V/3A, the efficiency is related to the input voltage, output voltage, and current)
● Maximum input power: 200W (maximum power reached when input voltage is greater than 30V)
● Maximum input current: 10A (please leave a certain margin for long-term continuous operation)
● Maximum output current: 7A (please leave a certain margin for long-term continuous operation)

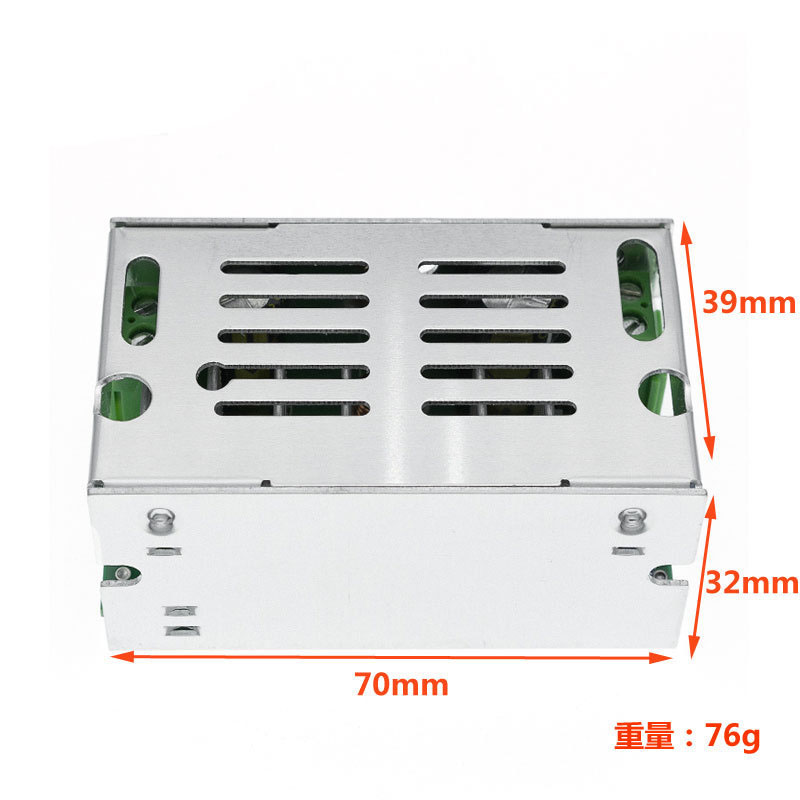

● Module size: 70 * 39 * 32mm (length * width * height)

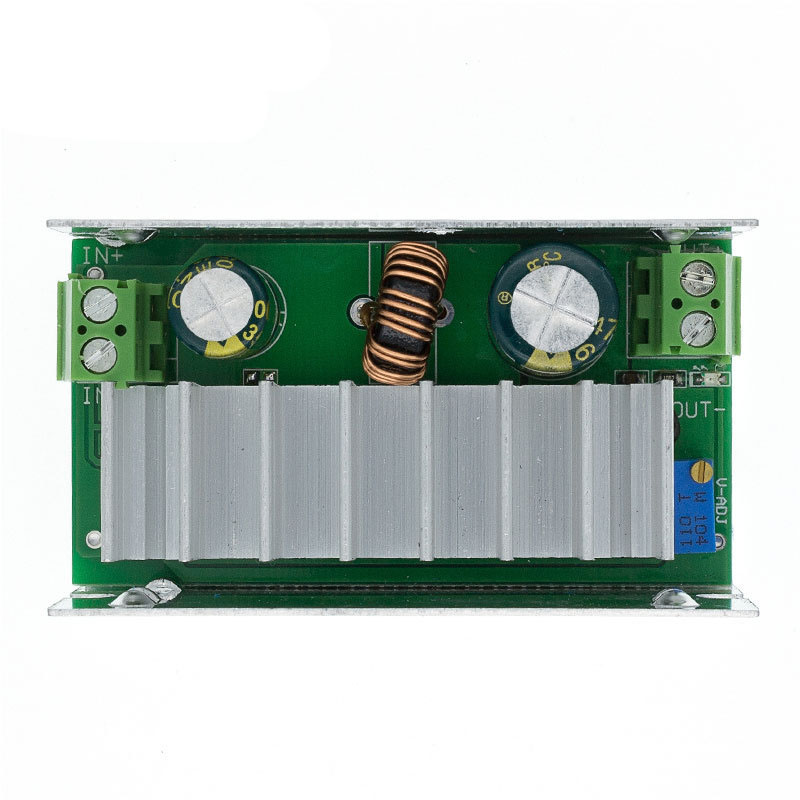

● IN+: Input positive pole
● IN -: Input negative pole
● OUT+: output positive pole
● OUT -: Output negative electrode
Precautions:
This board is a boost board, and the output voltage can only be greater than or equal to the input voltage!
