Home>Electronic Modules>Wireless Module>JDY-16 Bluetooth 4.2 Module High-speed Transparent BLE Support Airsync IBeacon Super CC2541

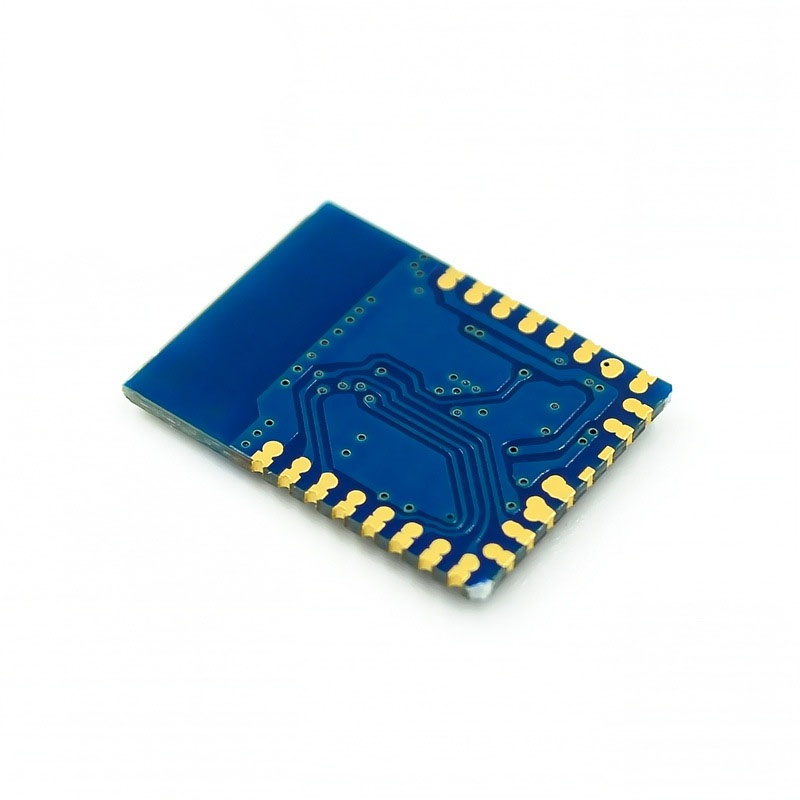

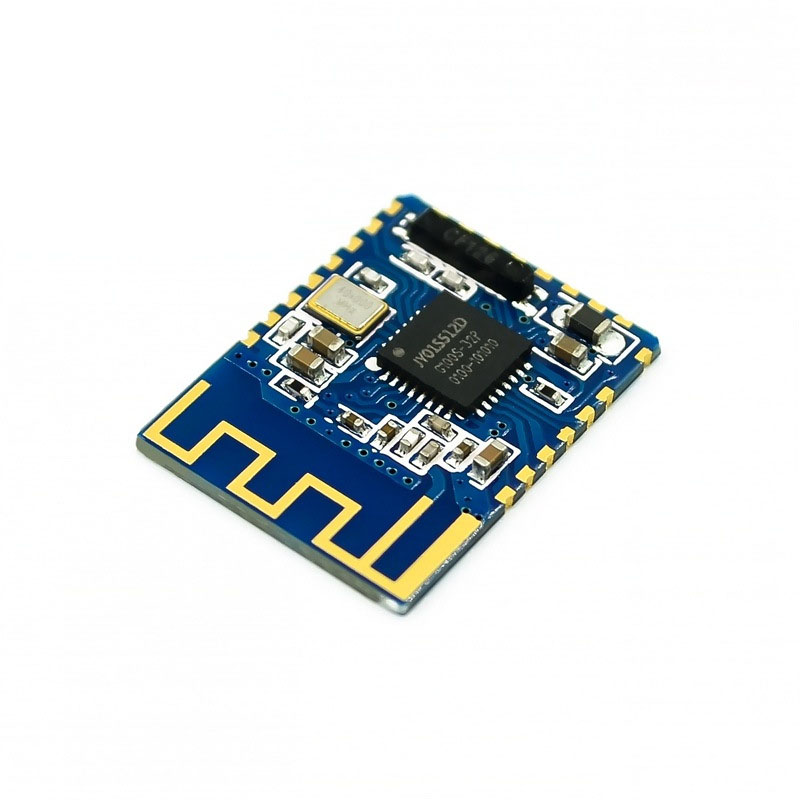

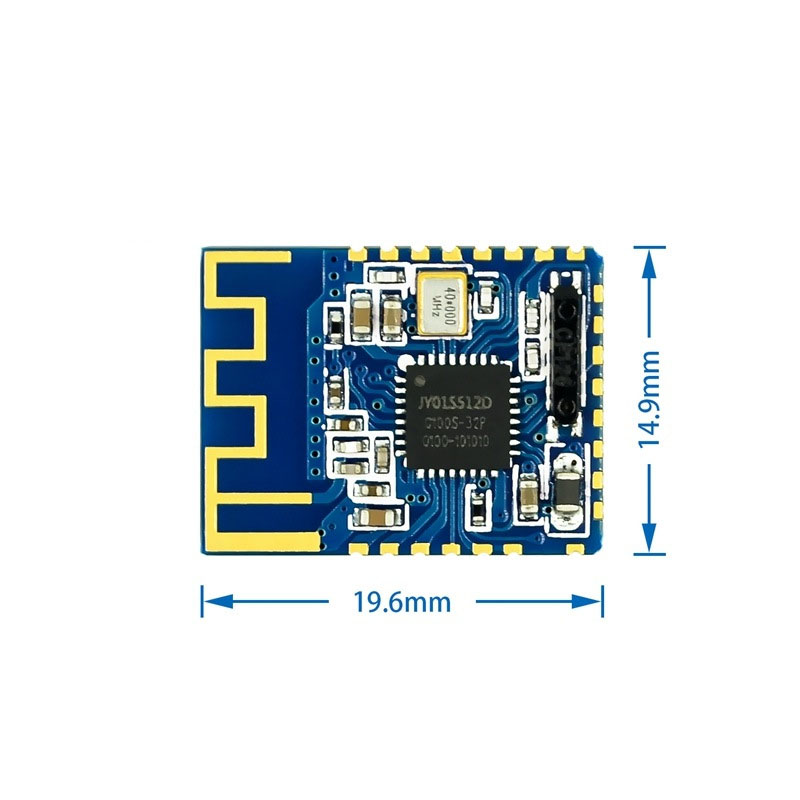

JDY-16 Bluetooth 4.2 Module High-speed Transparent BLE Support Airsync IBeacon Super CC2541

JDY-16 Bluetooth 4.2 Module High-speed Transparent BLE Support Airsync IBeacon Super CC2541Item NO.: JDY-16

US$ 4.95
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
JDY-16 Bluetooth 4.2 Module High-speed Transparent BLE Support Airsync IBeacon Super CC2541
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • JDY-16 Bluetooth 4.2 Module



    Advantages of JDY-16:



    1: JDY-16 is developed using the BLE 4.2 protocol, which is compatible with BLE 5.0 and is better compatible with mobile phones than the CC2541 module.

    2: The peak current of RF TX and RX is 5 to 6mA, and the peak current of CC2541 is more than ten MAs. In terms of low power consumption, JDY-16 is more energy-efficient and has lower power consumption than CC2541 modules. For products such as electronic locks or battery powered products, it is generally more recommended to use JDY-16 modules, with an average power consumption of at least half of JDY-08.

    3: The JDY-16 module has a large transmission rate of over 8K per second, and supports continuous transmission and reception at 115200 baud rates for master-slave communication without packet loss. The serial port testing tool uses SSCOM for testing.

    5: JDY-16 supports UART or IIC communication interfaces, which can be applied to lower cost MUC applications.

    6: JDY-16 supports SIG standard MESH, while JDY-16M supports MESH networking.

    7: JDY-16 has greatly improved computing speed and performance!
