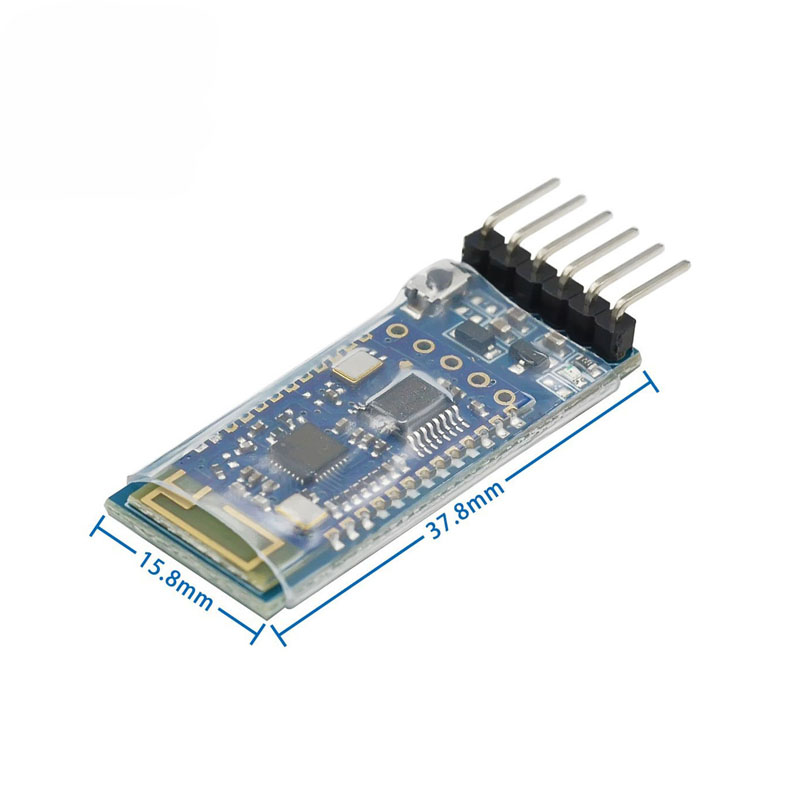

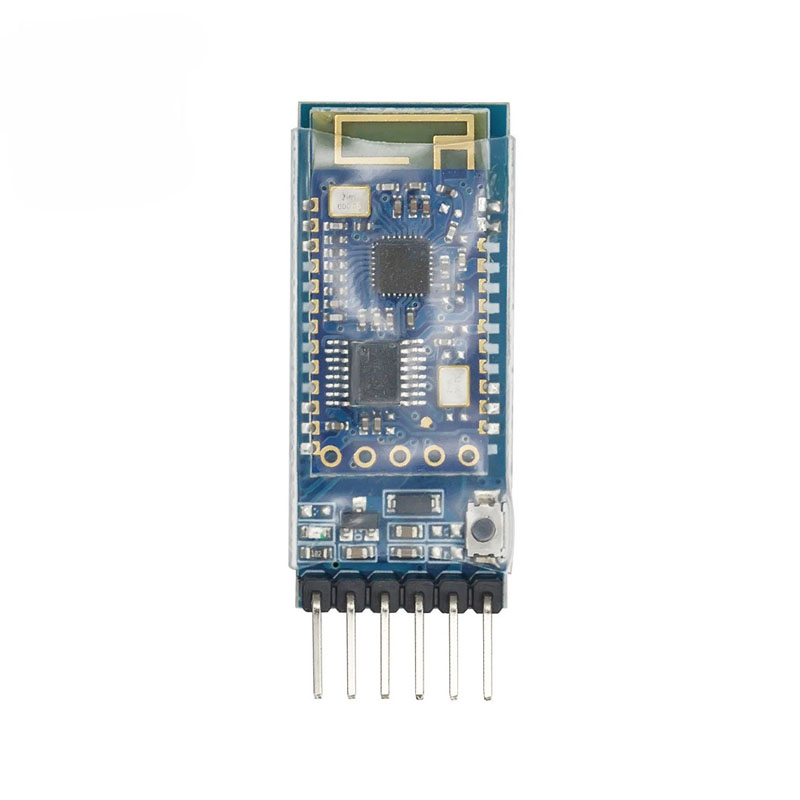

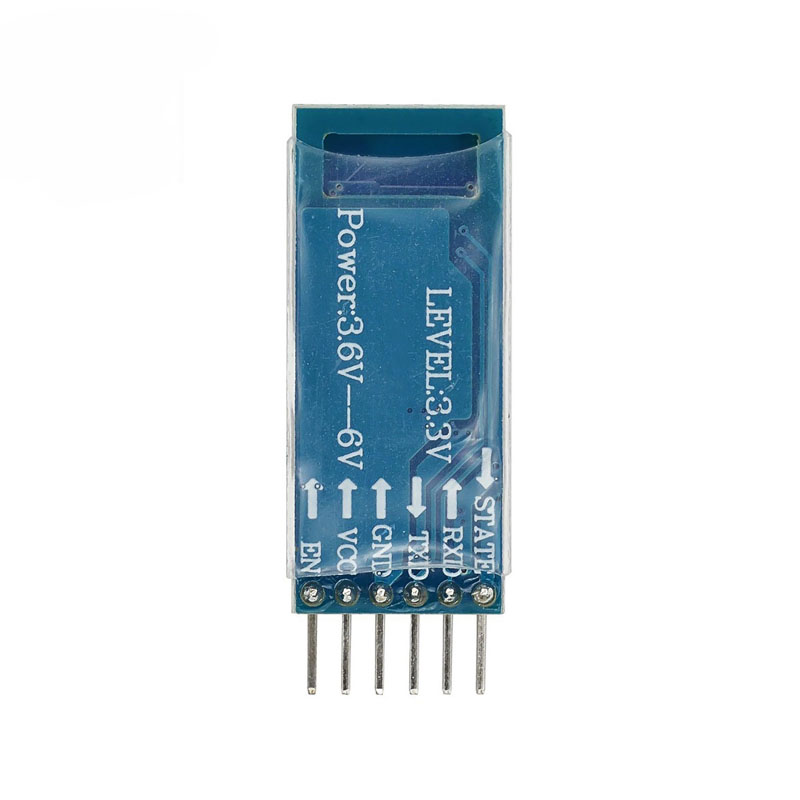

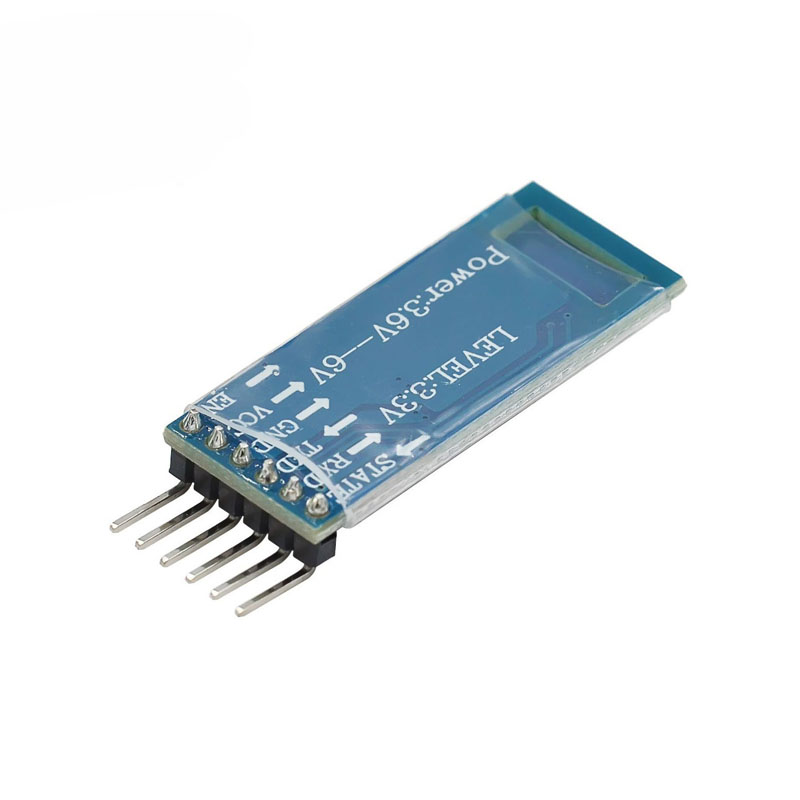

  • JDY-34 with Bottom Plate



    Product Introduction:



    The JDY-34 transparent transmission module is based on the Bluetooth BLE 4.2 protocol+3.0 standard, supporting both BLE and SPP to work simultaneously. SPP also supports multiple connections and SPP master-slave machines to work simultaneously, without the need for separate configuration as a master or slave function. In multi connection mode, SPP supports 7 master-slave machines (Android or computer) to connect to 1 IOS phone. BLE also supports Android or IOS connection. In host mode, it supports communication with all SPP slaves on the market, including JDY-30, JDY-31, JDY-32, JDY-33, printers, etc. The communication interface is standard UART, and the working mode, baud rate, BLE Bluetooth can be configured through AT commands. The main advantage of parameters such as UUID and pairing password is high-speed communication. SPP supports the transmission of 40KByte/s data per second and multi connection function when connected to mobile phones or computers.
