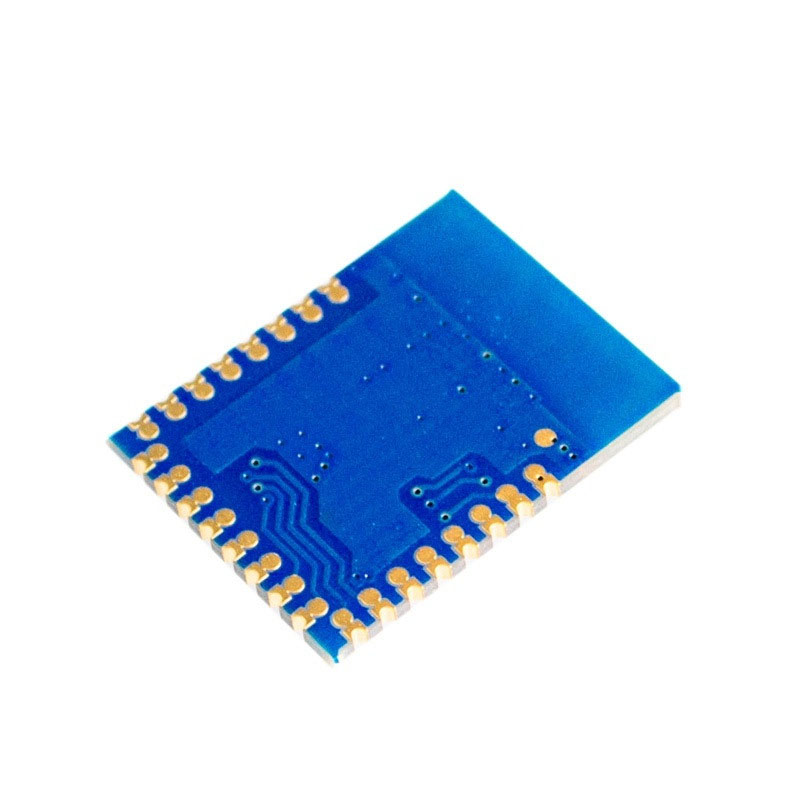

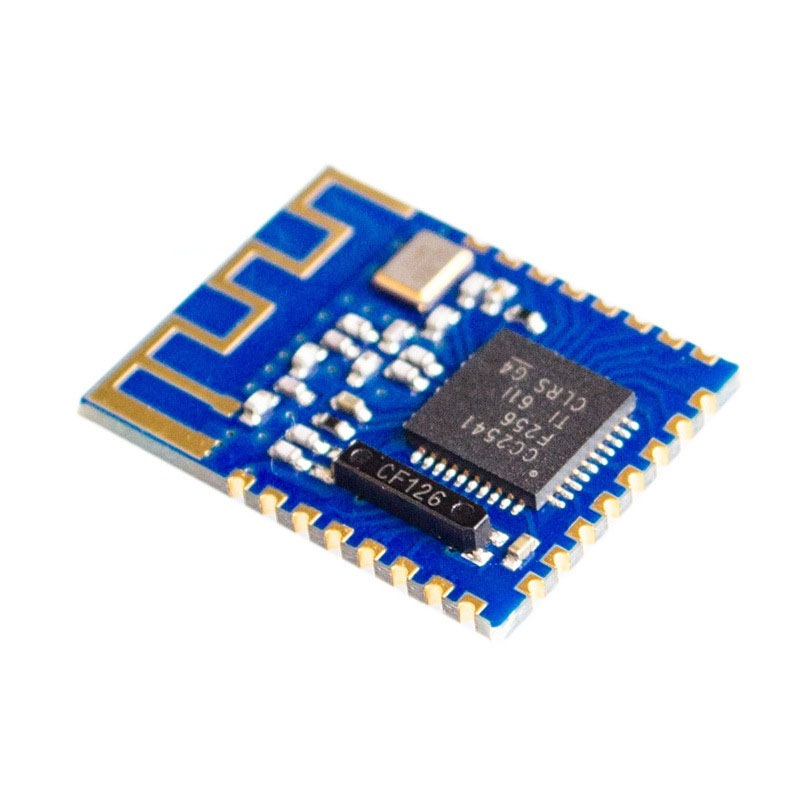

JDY-08 CC2541 Module Bluetooth 4.0 BLE Module iBeacon ModuleItem NO.: JDY-08

JDY-08 CC2541 Module

Product Introduction:

The JDY-08 transparent transmission module is based on the Bluetooth 4.0 protocol standard, with a working frequency range of 2.4GHz and a modulation method of GFSK. The maximum transmission power is 0dB and the maximum transmission distance is 80 meters. It adopts the TICC2541 chip design and supports users to modify device names, service UUID, transmission power, pairing passwords and other instructions through AT commands, making it convenient, fast, and flexible to use.

Function Introduction:

1: WeChat transparent transmission (supporting AirSync protocol, used for communication with WexinH5 or manufacturer servers, including long packet data parsing and transmission)

2: WeChat control mode (motor speed regulation, LED light switch control)

3: APP transparent transmission (supports Android and IOS data transparent transmission)

4: IBeacon mode (supports WeChat Shake One Shake Protocol and Apple iBeacon Protocol)

5: Sensor mode (temperature, humidity, and many other sensor data collection applications)

6: Host transparent transmission mode (data transparent transmission between application modules, communication between host and slave)

7: Host observer mode (application sensors, indoor positioning)

8: PWM mode (applied to motor speed regulation and LED light brightness adjustment)

9: IO mode (applied to mobile phone control relays or LED on/off)

10: Indoor room positioning application (using iBeacon data collection to achieve range positioning)

11: RTC mode

12: RTC alarm mode: The alarm time of the RTC can be set to control the IO port, supporting two alarm time settings
