  • JDY-68A Dual-mode Bluetooth



    Product Introduction:



    JDY-68A is a dual-mode Bluetooth module with Bluetooth 5.1 audio and BLE, supporting simultaneous playback of mobile music and BLE transmission. Audio supports serial port control and button control, with a communication distance of 60 meters. BLE supports 16 bit and 128 UUIDs, and all UUIDs support serial port configuration. Users can freely configure the parameters of UUIDs



    Product parameters:



    Model: JDY-68A

    Working frequency band: 2.4G

    Transmission power: 4dB (maximum)

    Communication interface: UART

    Working voltage: 2.4V-5.5V

    Working temperature: -40 ℃ -80 ℃

    Antenna: Built in PCB antenna

    Receiving sensitivity: -96dbm

    Transmission distance: 60 meters

    Master Slave Support: Slave

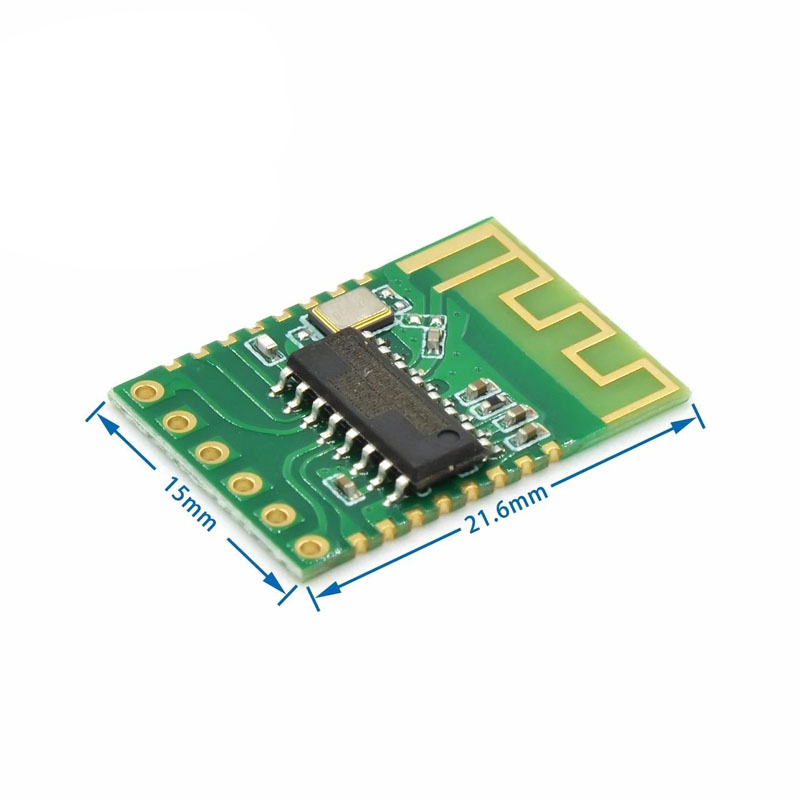

    Module size: 21.4 * 15 * 3 mm (length, width, height)

    Bluetooth version: BLE 5.1 (compatible with BLE 4.0, BLE 4.2, BLE 5.0)

    Command parameter saving: parameter configuration and power-off data are saved

    SMT welding temperature:<250 ℃

    Serial port to mobile phone: 6K Byte/S (measured speed)

    Mobile phone sends to serial port: 12K Byte/S (measured speed)

    Android MTU support: ≤ 247 bytes

    Apple MTU support: ≤ 185 bytes

    Working current: 12MA to 20MA, power off directly during sleep

    Sleep function: does not support sleep
