Customized Requirements
- Quantity
-
-
- Product Name: KY-002 Vibration Switch Module Vibration Sensor Is Applicable To Arduino
- Item NO.: KY-002
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Switch/Relay Module
- Tag: KY-002 , Vibration Switch Module , Vibration Sensor
- Creation Time: 2024-03-30

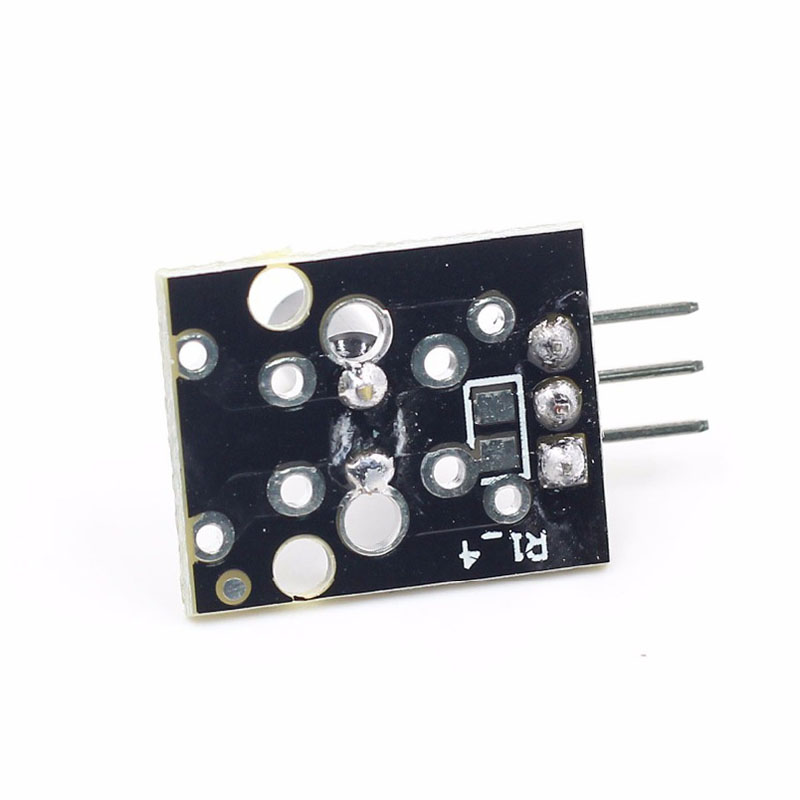

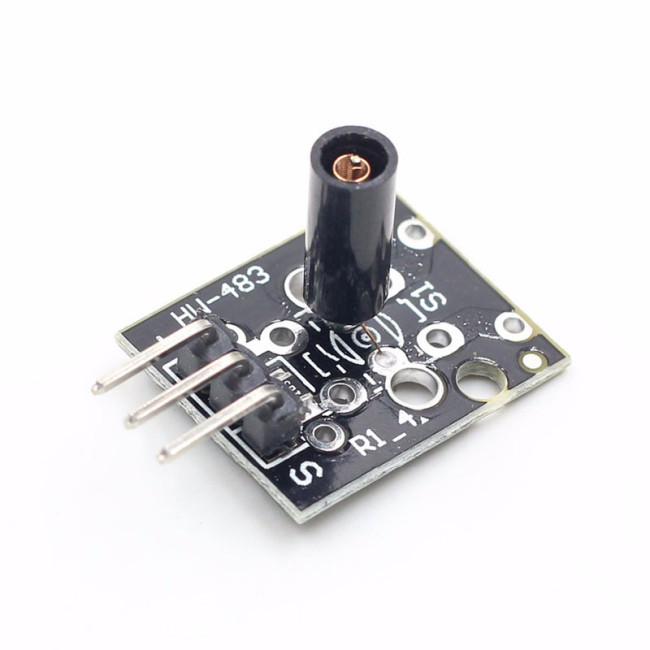

KY-002 Vibration Switch Module
Product Information:
1. The switch is in the open circuit (OFF) state when it is stationary. When it is touched by an external force and reaches the appropriate vibration force, or when the moving speed reaches the appropriate off-center force, the conductive pin will have an instant conduction (ON) state, which changes the electrical characteristics. When the external force disappears, the electrical characteristics will return to the open circuit (OFF) state.
2. There is no directionality, and the work can be triggered at any angle.
3. The P word in the model is completely sealed and can be waterproof and dustproof.
4. The trigger sensitivity can be selected according to the circuit needs.
5. This switch is applicable to the triggering of small current circuits.

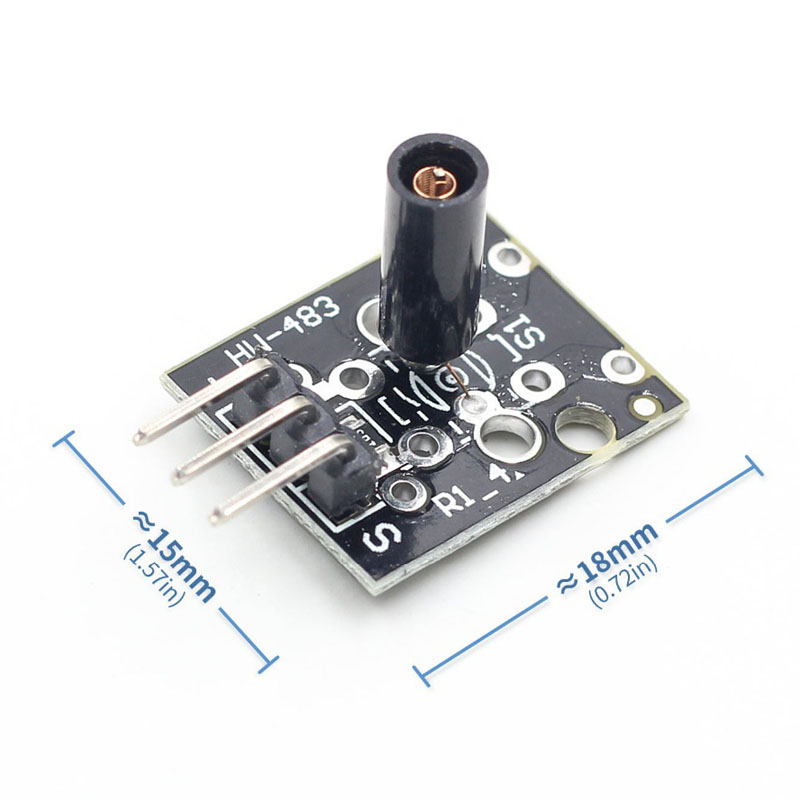

6.Dimensions: 0.94 x 0.59 x 0.35inch (2.4 x 1.5 x 0.9cm)
7.Component model: SW-18015P
8.Working voltage: 3.3V ~ 5V
9. Rated heating current: 20m
