- Product Name: 1-circuit Relay Module Delayed Power-off Disconnection Trigger Delayed Cycle Timing Circuit Switch XY-LJ02
- Item NO.: XY-LJ02
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Switch/Relay Module
- Tag: Relay Module , 1-Circuit , Delayed Power-off , Trigger Delayed , Cycle Timing Circuit Switch , XY-LJ02
- Creation Time: 2024-03-27

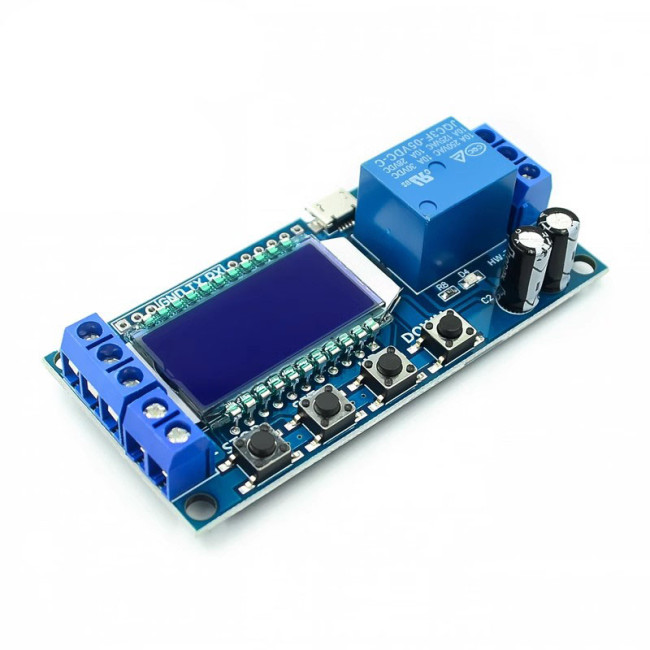

1-circuit Relay Module XY-LJ02

Module Highlights:

1. With LCD display, the current mode and parameters are clear at a glance, very clear, simple and practical;

2. Support high and low level triggering, switch quantity control, suitable for most occasions;

3. Wide voltage power supply (6-30V) supports micro USB 5.0V power supply, making it very convenient to use;

4. Support UART data upload and parameter settings;

5. It has a one button emergency stop function (STOP key) with reverse connection protection, and reverse connection does not burn;

6. Added sleep mode, which automatically turns off the LCD backlight without any operation within 5 minutes after enabling it; Wake up with any button;

7. Different OP, CL, and LOP parameters can be set, which are independent of each other and saved separately;

8. All set parameters are automatically saved after power off.

Product Parameters:

1: Working voltage: 6-30V, supporting micro USB 5.0V power supply

2: Trigger signal sources: high-level trigger (3.0V~24V), low-level trigger (0.0V~0.2V), switch quantity control (passive switch).

3: Output capacity: capable of controlling devices up to 30V DC 5A or up to 220V AC 5A

4: Static current: 15mA Working current: 50mA

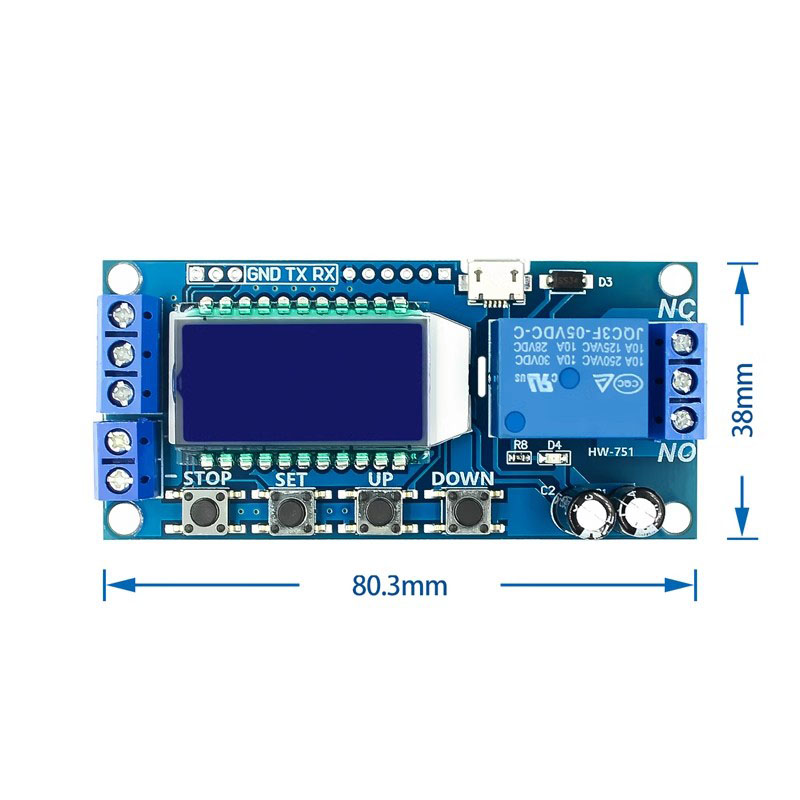

5: Service life: greater than 100000 times; Working temperature: -40-85 ℃; Size: 8.0 * 3.8 * 1.9cm

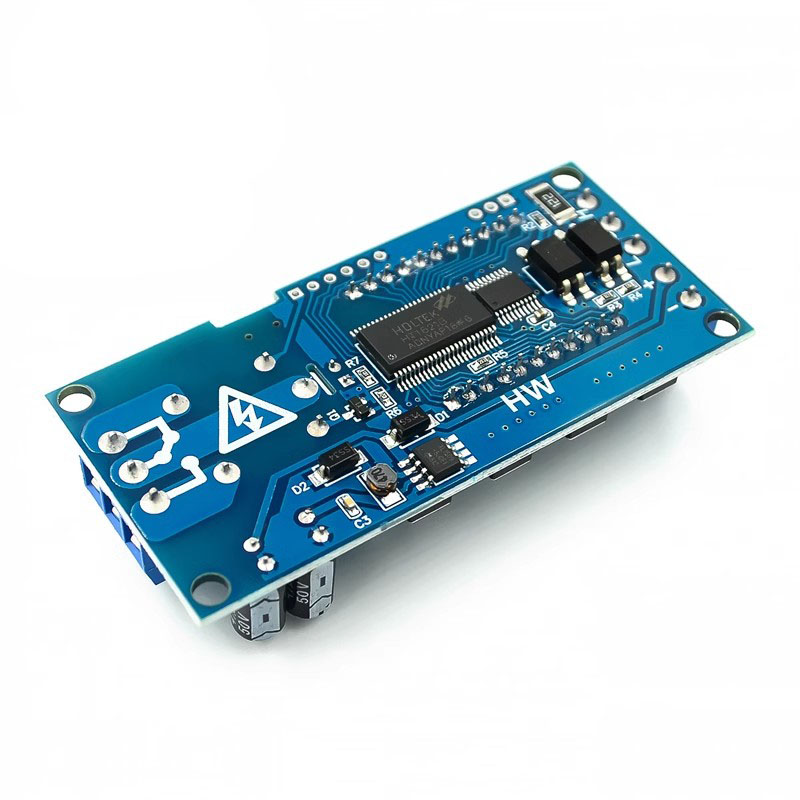

6: Equipped with optocoupler isolation, enhanced anti-interference ability, industrial grade circuit board, set parameters for permanent memory after power outage.
