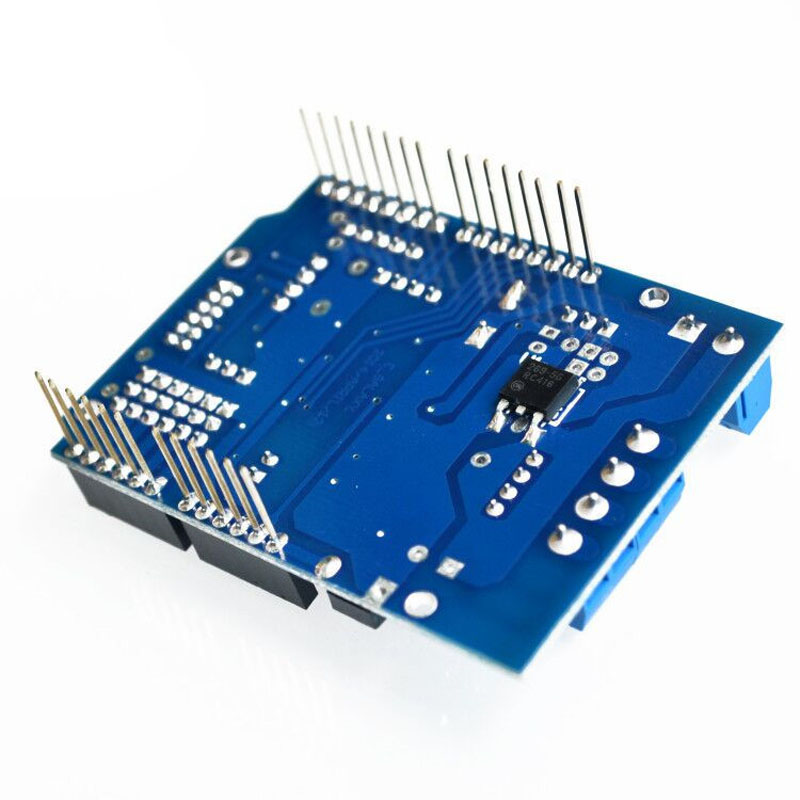

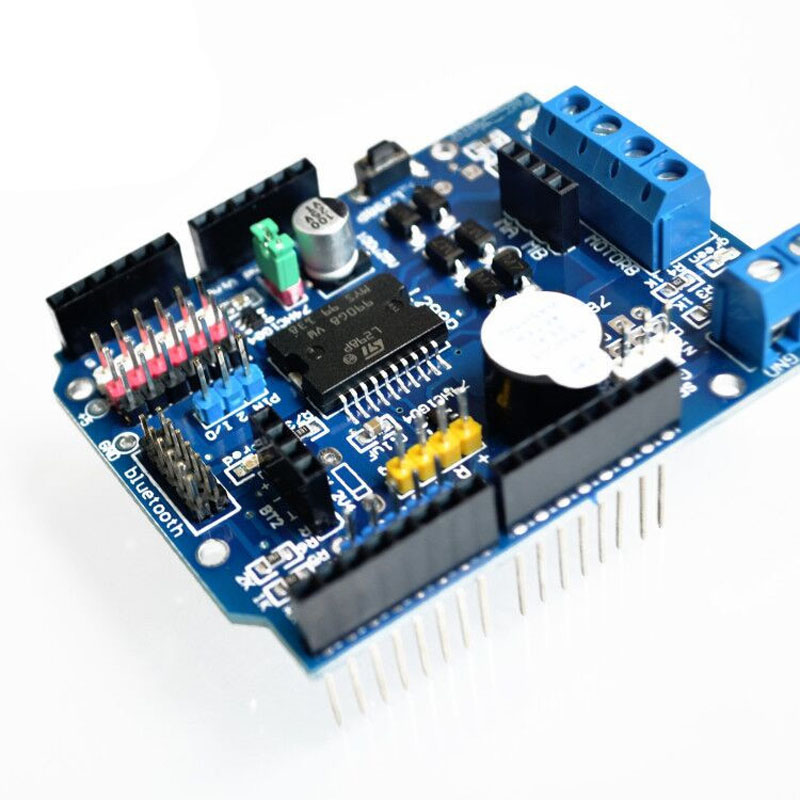

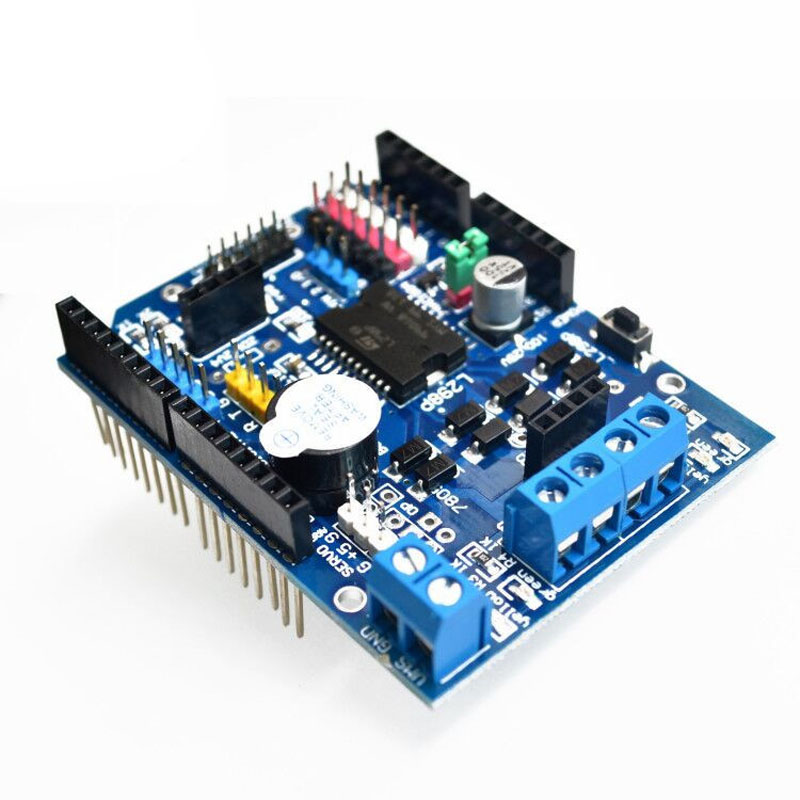

L298P Motor Shield Stepping DC Motor Drive Module Driver Expansion Board

L298P Motor Shield Stepping DC Motor Drive Module Driver Expansion BoardItem NO.: L298P extend

US$ 11.19
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
L298P Motor Shield Stepping DC Motor Drive Module Driver Expansion Board
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • L298P DC Motor Drive Module



    Product Introduction:



    The L298P Shield DC motor driver uses a high-power motor specific driver chip L298P, which can directly drive 2 DC motors with a driving current of up to 2A. The motor output end is protected by 8 high-speed Schottky diodes. The stacked design can be directly plugged into it, making it more convenient to use!



    Technical specifications:



    1. Logic input voltage VD: 5V

    2. Input voltage of the driving part VS: VIN input 6.5-12V, PWRIN input 4.8-35V

    3. Logic part working current Iss:<36mA

    4. Working current of the driving part Io:<2A

    5. Large dissipation power: 25W (T=75 ℃)

    6. Control signal input level: high level 2.3V<Vin<5V, low level -0.3V<Vin<1.5V

    7. Working temperature: -25+130 ℃

    8. Hardware interface: 5.0mm spacing terminal post

    9. Equipped with fixed buckle and able to access control signals through array connection

    10. Drive form: dual high-power H-bridge drive

    11. Pin occupation: D4~D7 direct drive motor

    12. Support PWM/PLL mode motor speed control

    13. Size: 68 * 53mm
