HCSR04 Ultrasonic Ranging Module HC-SR04 Test Board Digital Tube Display Ranging InstrumentItem NO.: HC-SR04 Ultrasonic
-
Customized Requirements
- Quantity
-
-
- Product Name: HCSR04 Ultrasonic Ranging Module HC-SR04 Test Board Digital Tube Display Ranging Instrument
- Item NO.: HC-SR04 Ultrasonic
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: Test Board , HC-SR04 , Ultrasonic Ranging Module , HCSR04 , Digital Tube , Display Ranging Instrument
- Creation Time: 2024-04-12

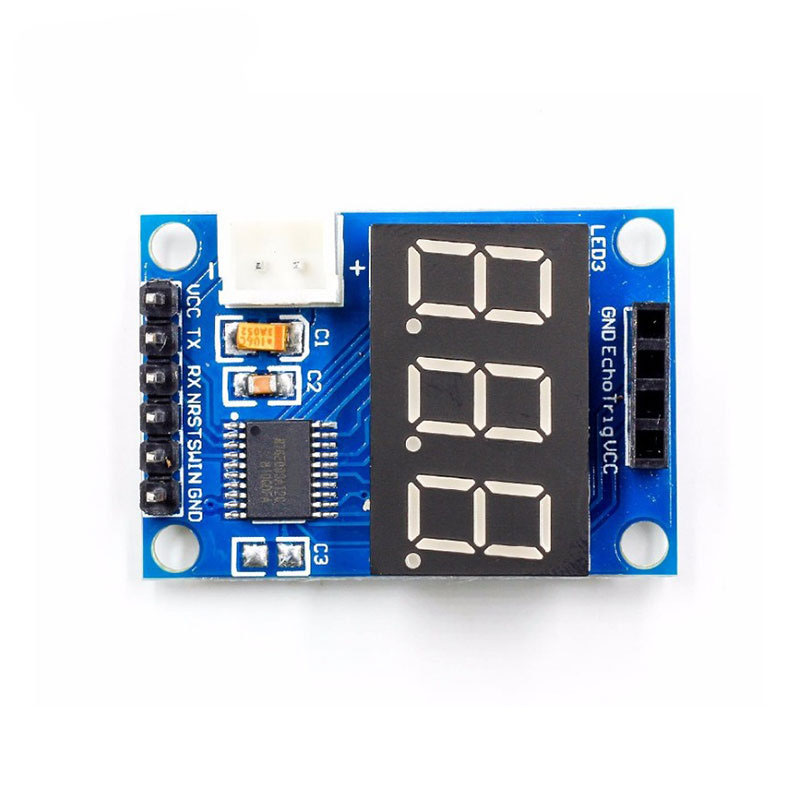

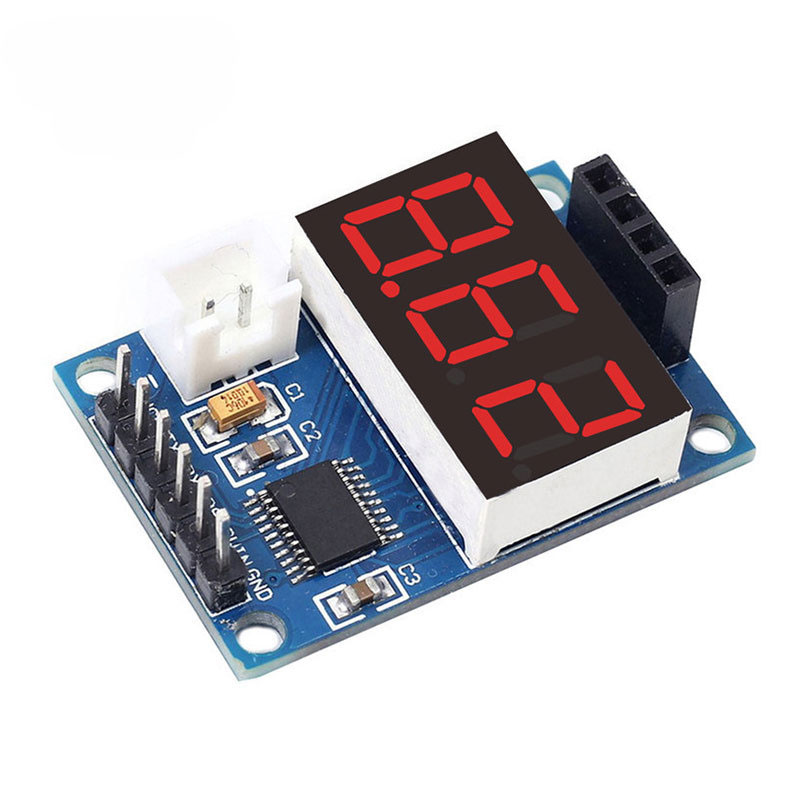

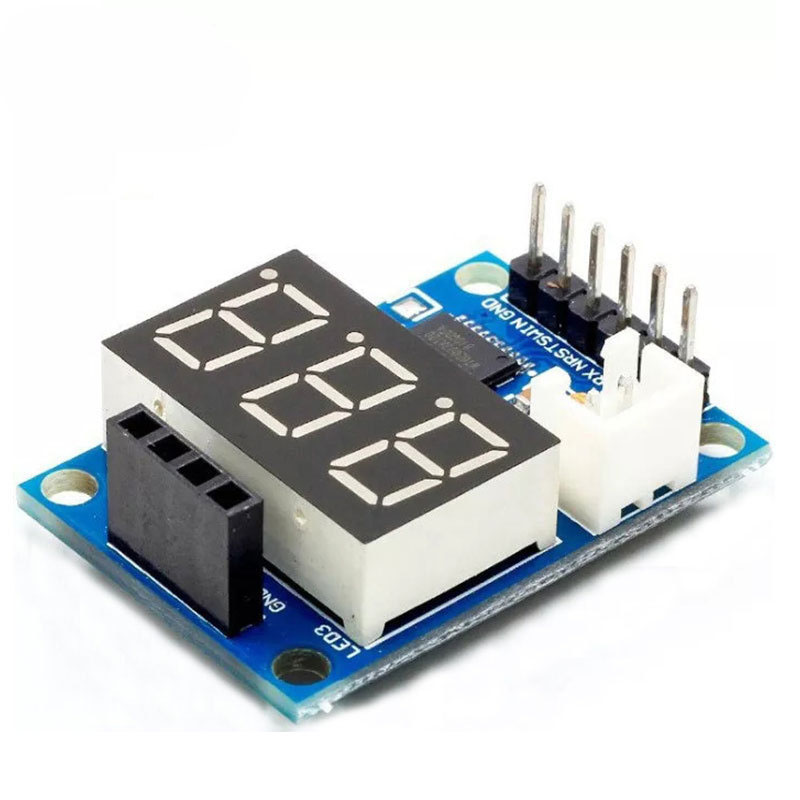

HC-SR04 Test Board
Product Overview:
The ultrasonic distance measurement display module uses an 8-bit microcontroller as the main control chip (factory burned program), which can be used for distance measurement and testing of the performance of the HC-SR04 ultrasonic module. Serial port or digital tube display can be provided.
Functional Features:
1. Onboard STM8S103 high-performance microprocessor
2. With digital tube display;
3. Data can be output through a serial port;
4. Effective measurement distance: 3cm -- 400cm;
5. Display unit: cm/cm
6. Maximum error: about 1%;
7. Working voltage: 5V.
8. Board size: 24.2 * 35.1mm
Matters Needing Attention:
1. During distance measurement, the area of the object to be measured should not be less than 0.5 square meters, and it should be as flat as possible with a slightly strong reflection ability, otherwise the test results will be affected.
2. The effective measurement distance is 3cm-400cm. Exceeding this range may result in inaccurate data or a display of 000
