OE-TP Capacitive Touch Key Switch Module Digital Touch Sensor LED Stepless Dimming 10A DriveItem NO.: OE-TP

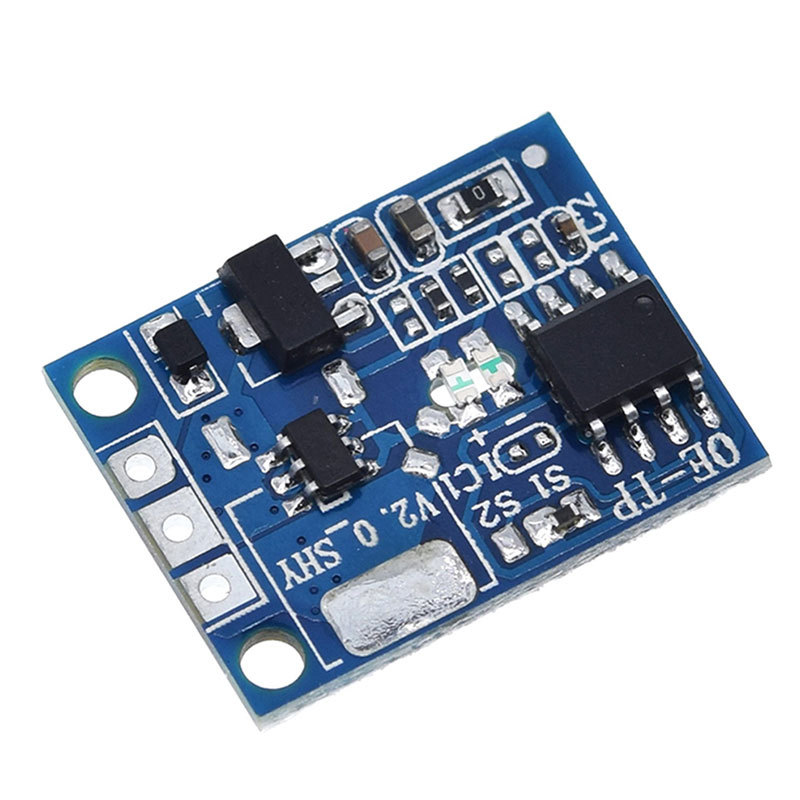

OE-TP Capacitive Touch Key Switch Module

Product Detailed Parameters:

● Product name: Touch dimming module (touch switch)

● Specification and model: OE-TP dimming (10A)

● Power supply range: DC 5-20V, recommended 12V power supply

● Output current: Pouring current MAX: 10A, recommended 3A operation

● Protection function: power supply reverse connection protection

● Induction indication: output red light on

● Working mode: configurable. (Default: fade with memory Note fade, stepless dimming) Touch distance

● Touch distance: less than 6mm (glass acrylic)

● Static current: less than 5mA

● Working temperature: - 40 ----- 85 ℃

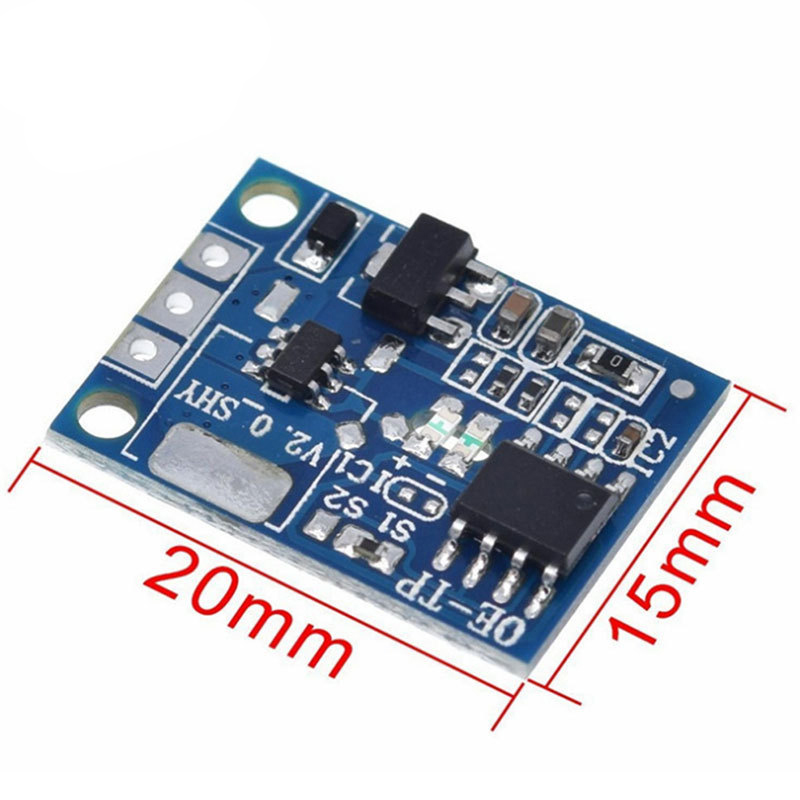

● External dimension: 20x15x2mm

● Net weight: 1.5 grams

● Remarks: Touch the surface of other media such as ceramics, plastics, wood, etc., with a thickness of less than 3mm

Mode Settings:

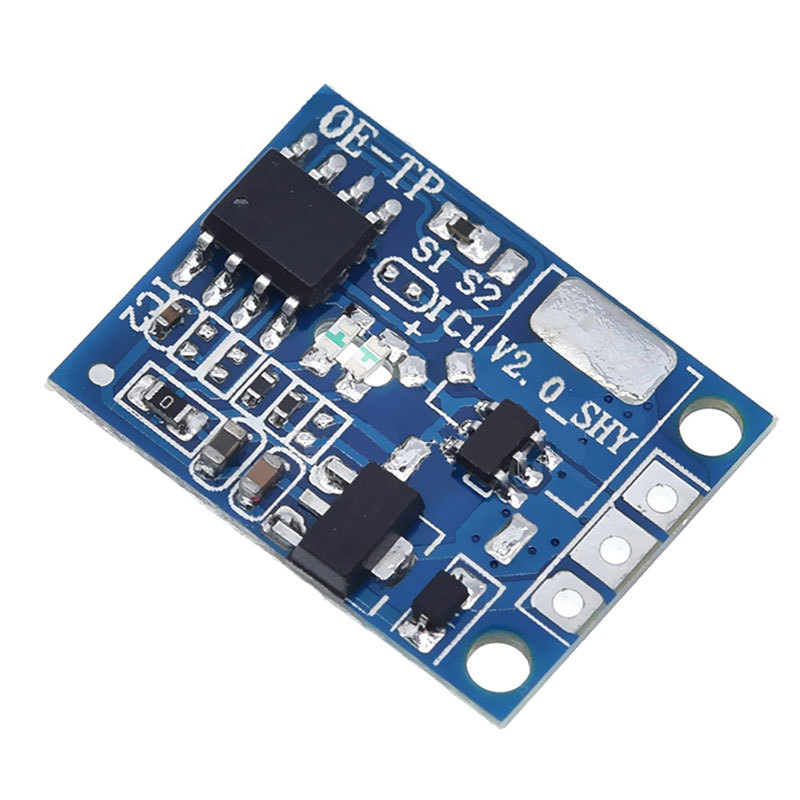

● S1 without welding S2 without welding: without memory flash, flash and dark, stepless dimming IC2:5-30NF, the greater the sensitivity, the better

● S1 welding without soldering S2 welding: gradual dimming without memory, stepless dimming IC2:5-30NF value, greater sensitivity, better

● S1 welding S2 non welding: gradually dimming with memory, stepless dimming IC2:5-30NF value, greater sensitivity, better

● S1 welding S2 welding: three-level dimming, low ->medium ->high ->off IC2:30NF default capacitance

● Memory mode: The module's last brightness is set to the default brightness for power-on, and the system's power down memory default value will be lost

● Gradual dimming: When turned on, the light brightness gradually sets the brightness, and when turned off, the light brightness gradually turns off

● Sudden brightness and sudden dimming: When the light is turned on, the brightness is directly set, and when the light is turned off, the light is directly turned off

● Long press and touch: Stepless dimming is achieved. Long press and touch once, the light brightness gradually increases, and when released, the light brightness stops at the brightness at the moment of release. Long press and touch again, the light brightness gradually decreases, and when released, the light E stool stops at the stool level at the moment of release. Suitable for motor speed regulation, output voltage regulation, and other occasions.

Common Male Connection Method:

● For example, controlling a 12V light strip:

Positive pole of 12V power supply: connected to the VCC of the module.

Negative electrode: connected to GND of the module.

The controlled lamp has a positive electrode: connected to the VCC of the module.

Negative electrode: connected to the OUT of the module.

After powering on, touch the module with your finger to control the light strip, and press and hold the touch to adjust the brightness of the light.

● For example, controlling 12V motor speed regulation:

Positive pole of 12V power supply: connected to the VCC of the module.

Negative electrode: connected to GND of the module.

Controlled motor positive pole: connected to the VCC of the module.

Negative electrode: connected to the OUT of the module.

After powering on, touch the module with your finger to achieve motor control, and press and hold the touch to achieve motor speed control.

● Control interface: VCC is the power supply, GND is the ground, and OUT is the digital signal output pin with three pins

● LED indicator light: The green (blue) light is on when powered on, and the touch sensing output red light is on.

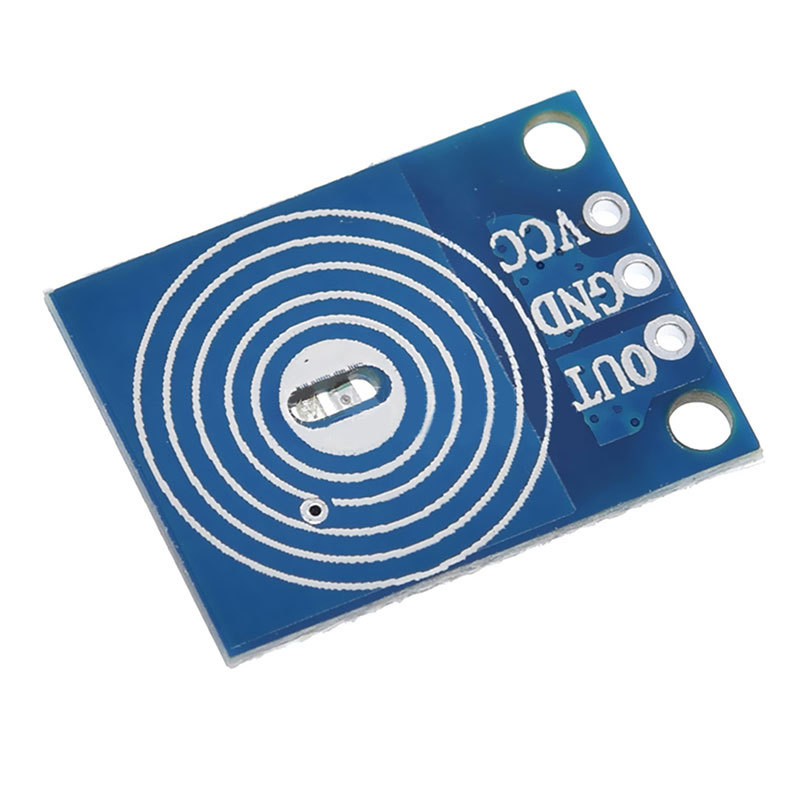

● Touch area: The internal area of an icon similar to a fingerprint, which can be triggered by lightly touching with a finger.

● Positioning hole: two M2 screw positioning holes with a diameter of 2mm, making it easy to install and position the module, and achieving assembly between modules

● Application: 12V light bar (LED) brightness adjustment touch control. 5-20V DC motor speed control.
