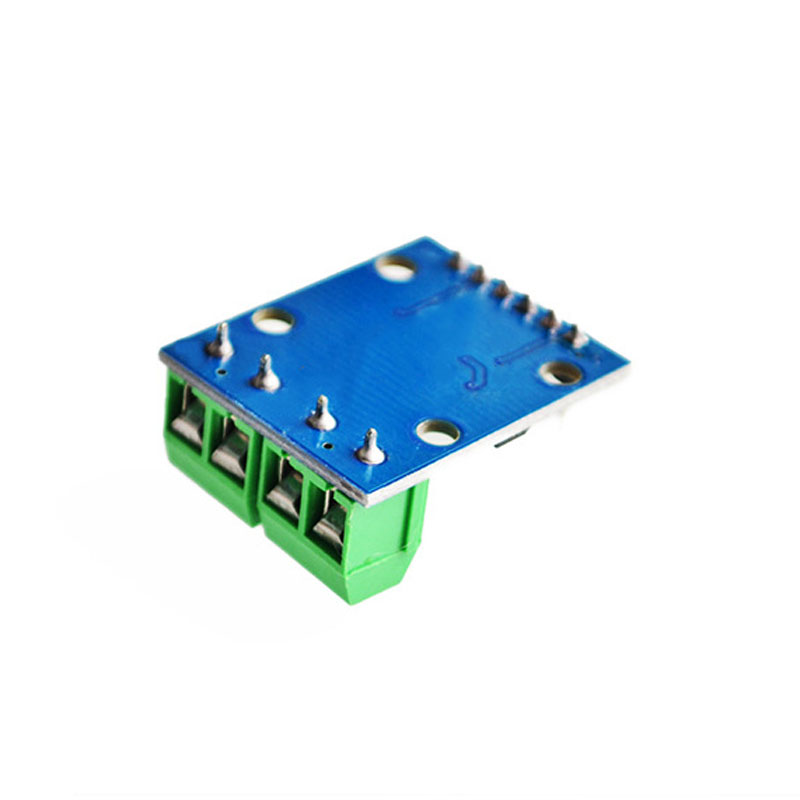

  • L9110S DC Motor/Stepper Motor Drive Board



    Module Description:



    Motor drive for 1 pair of L9110S chips

    2 module power supply voltage: 2.5-12V

    3. Suitable motor range: The working voltage of the motor is between 2.5V-12V, and the large working current is 0.8A. Currently, the voltage and current of smart cars on the market are within this range

    4 can simultaneously drive 2 DC motors or 1 4-wire 2-phase stepper motor.

    5 PCB board size: 2.8cm * 2.1cm ultra small volume, suitable for assembly

    6 with fixed installation holes, diameter: 3mm



    Module interface description:



    6P black curved needle instructions 】

    1 VCC external 2.5V-12V voltage

    2 GND external GND

    3 IA1 external microcontroller IO port

    4 IB1 external microcontroller IO port

    5 IA2 external microcontroller IO port

    6 IB2 external microcontroller IO port



    4P Green Terminal Description 】

    1 OA1 OB1 connected to 2 pins of DC motor, no direction

    2 OA2 OB2 connected to 2 pins of DC motor, no direction



    Module usage instructions:



    Turn on the VCC and the GND module power indicator light is on

    IA1 input high level, IA1 input low level, 【 OA1 OB1 】 motor forward rotation;

    IA1 input low level, IA1 input high level, 【 OA1 OB1 】 motor reverse;

    IA2 input high level, IA2 input low level, 【 OA2 OB2 】 motor forward rotation;

    IA2 input low level, IA2 input high level, 【 OA2 OB2 】 motor reverse;
