S3003 SG5010 Aircraft Remote Control Model Ship/Robot Servo/Vehicle/Mechanical Swing ArmItem NO.: S3003SG5010
-
Customized Requirements
- Quantity
-
-
- Product Name: S3003 SG5010 Aircraft Remote Control Model Ship/Robot Servo/Vehicle/Mechanical Swing Arm
- Item NO.: S3003SG5010
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Other Electronic Accessories > Intelligent Car Accessories
- Tag: Servo , S3003 , SG5010
- Creation Time: 2024-04-21
S3003 SG5010 Servo

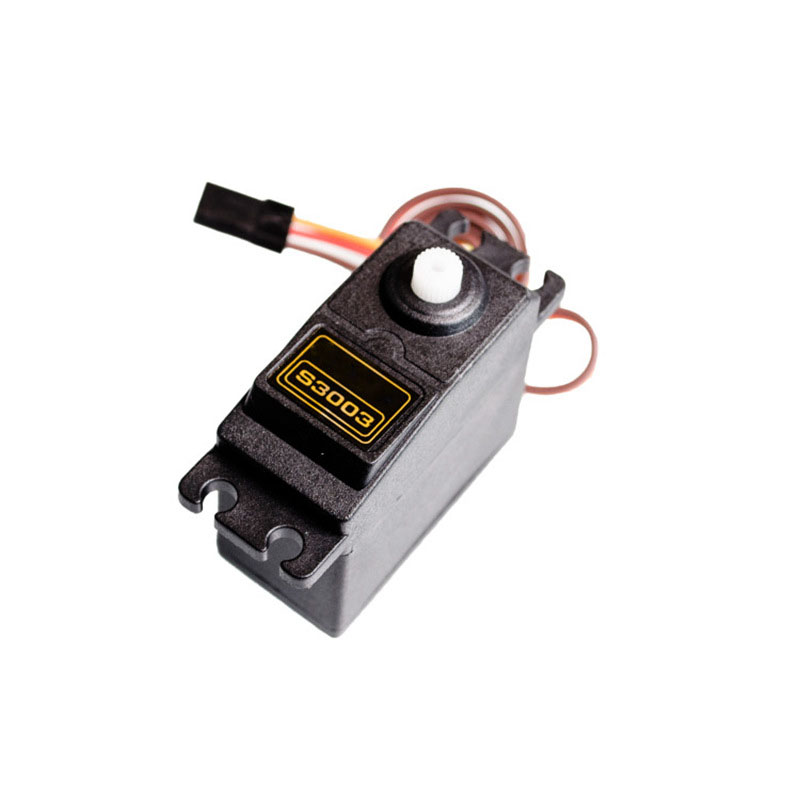

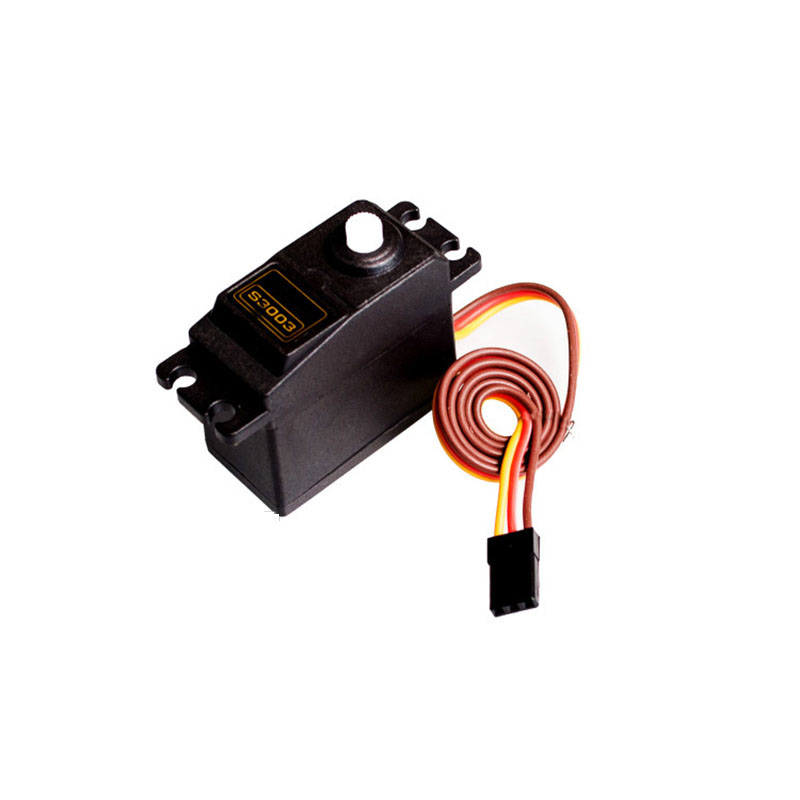

S3003 parameter standard:
Weight: 38g
Speed (4.8V): 0.12sec/60 °
Torque (4.8V): 3.5 kg/cm
Temperature range: -30 to+60C
Length of steering gear line: 27cm
Voltage range: 4.8-6.0V
S3003 standard steering gear, used on remote control models such as cars and ships, can replace Futaba's S138, S148, S22, S38, and S12

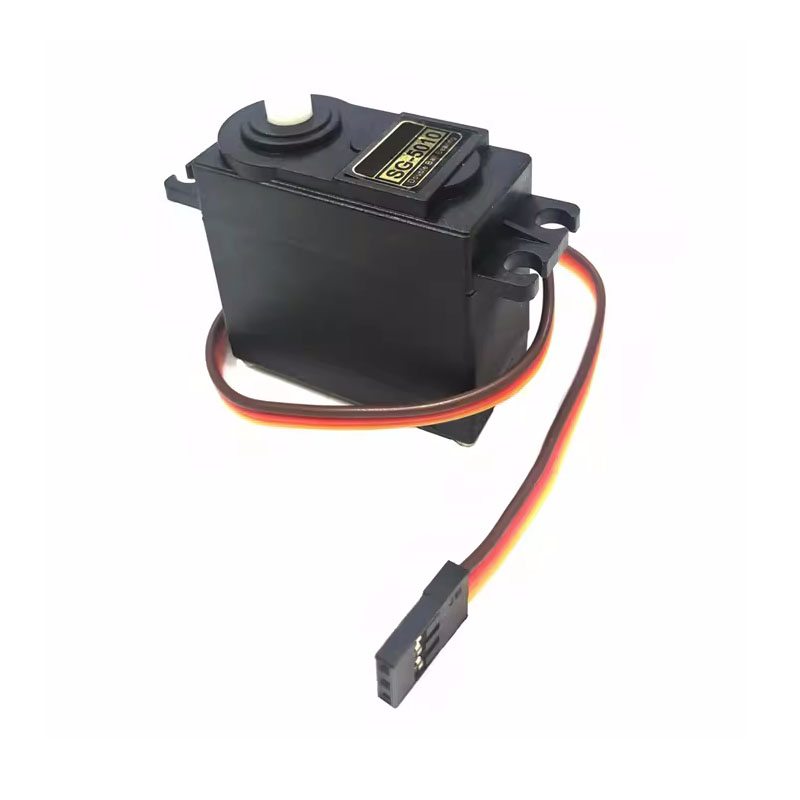

S5010 Technical parameters:
Size: 40mm * 20mm * 44mm
Weight: 39g
No load speed: 0.14 seconds/60 degrees (4.8V) 0.11 seconds/60 degrees (6.0V)
Locked rotor torque: 8 kg/cm (4.8V) 11 kg/cm (6.0V)
Operating temperature: -30 ℃~60 ℃
Deadband setting: 4ms
Operating voltage: 3.5V~8.4V
Connection line length: 300mm
Structural points: Three stage motor, all nylon gear structure, ball bearing
