LED Traffic Signal Module 5V SMT Traffic Light Module (JST1.0-4P Interface) Traffic Light Emitting Module Electronic Learning Block ProgrammingItem NO.: LED JT5V
-
Customized Requirements
- Quantity
-
-
- Product Name: LED Traffic Signal Module 5V SMT Traffic Light Module (JST1.0-4P Interface) Traffic Light Emitting Module Electronic Learning Block Programming
- Item NO.: LED JT5V
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Other Electronic Modules
- Tag: 5V , LED Traffic Signal Module , SMT Traffic Light Module , JST1.0-4P Interface , Traffic Light Emitting Module
- Creation Time: 2024-04-17

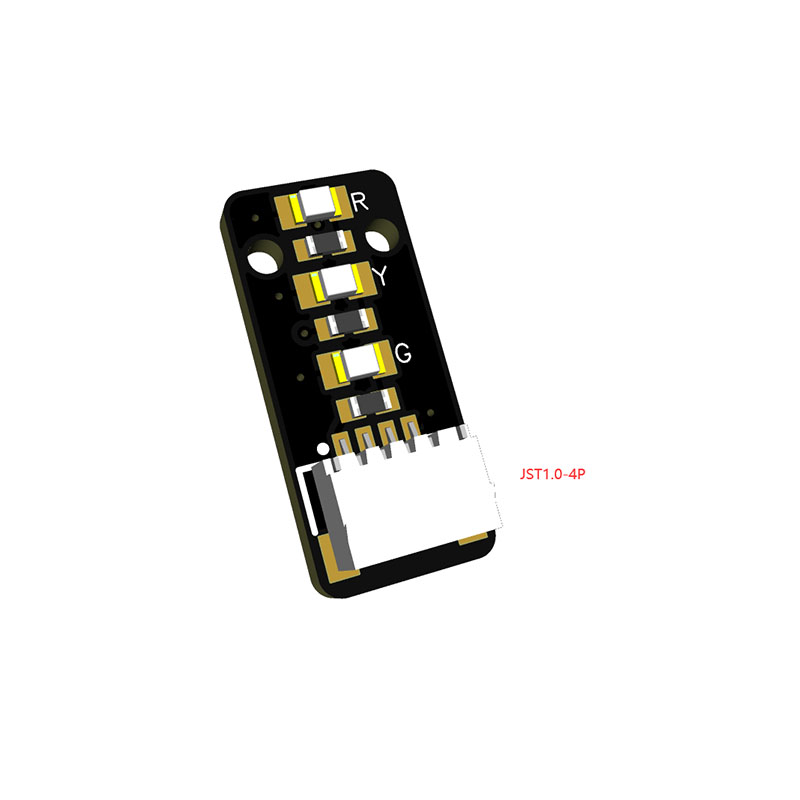

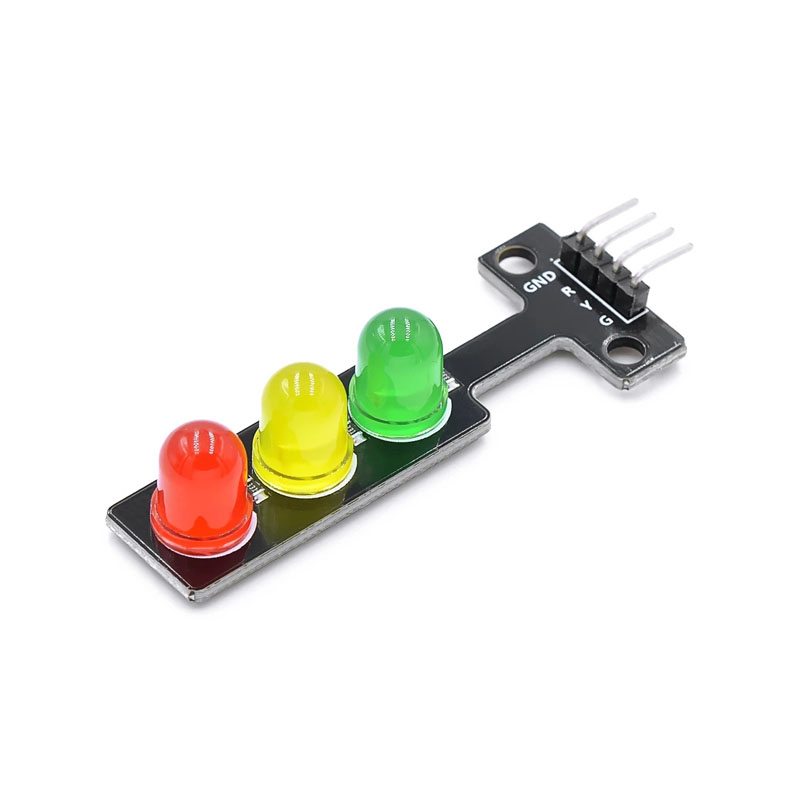

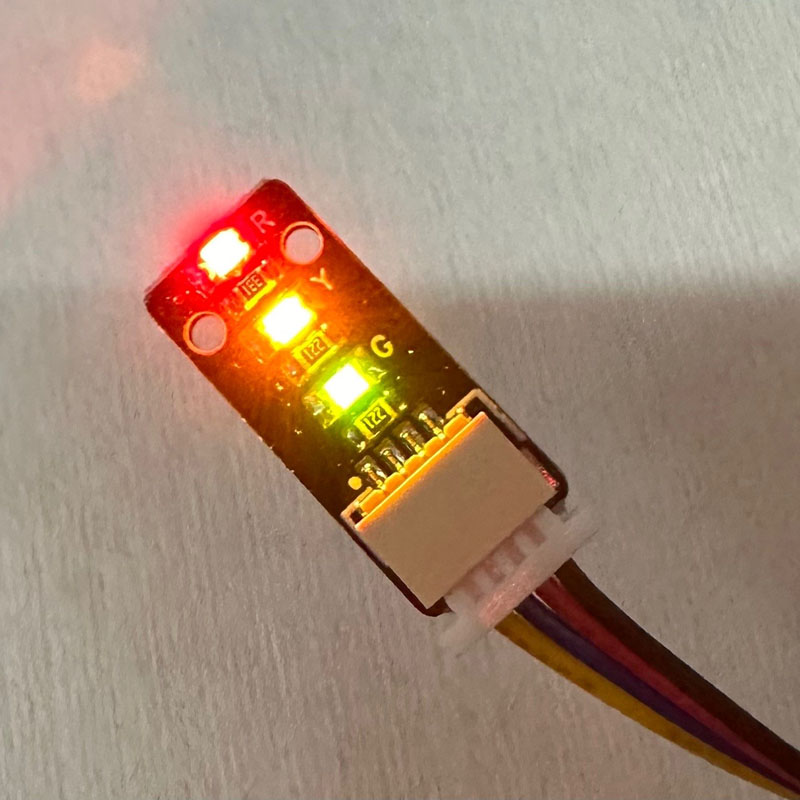

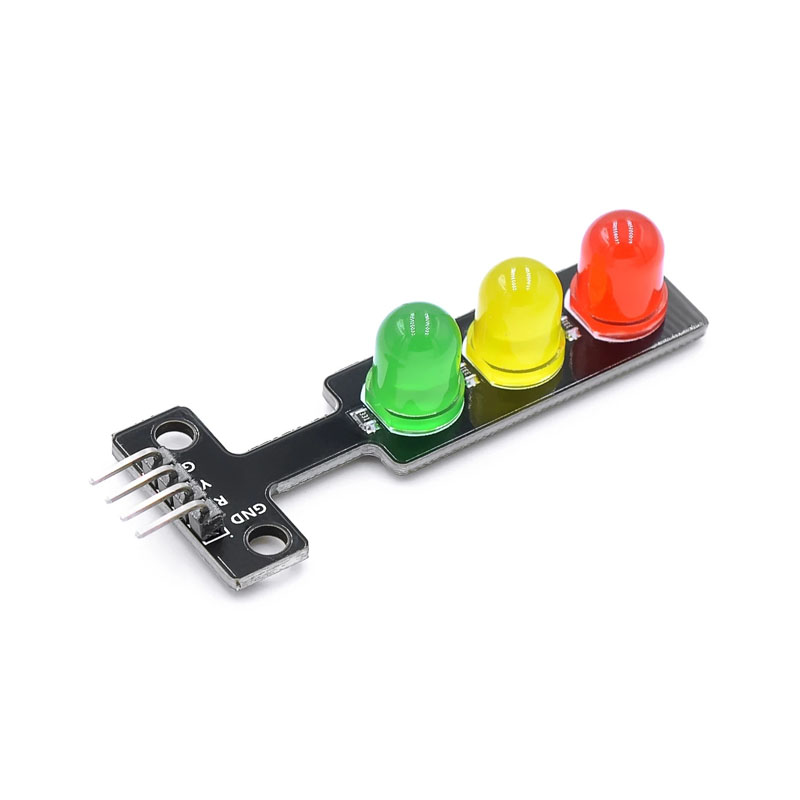

LED Traffic Light Module
This is a mini-traffic light display module, high brightness, very suitable for the production of traffic light system model.
Features:
1>. Small size.
2>. Simple wiring.
3>. Targeted.
4>. Custom installation.
Parameters :
1.Size:56*21*11mm
2.Color:Red,Yellow,green
3.LED:5mm
4.Brightness:Ordinary brightness
5.Voltage:5V
6.Input:Digital signal output
7.Interface:Common cathode, red and yellow green control Individually
8.Operating current:Red 13mA;Yellow 13mA;Green 25mA
Use Manual :
● It just support controller to contorl;
● Input High or Low level from controller to make LEDs ON or OFF.
● It can be controlled by PWM,too.
Application:
1>. Analog traffic signal system
2>. Teaching demonstration
3>. Indication sign
4>. Light alarm system
Frequency Asked Questions:
1>. Does it work with 3.3V or 5V?
Q : It can work with 3.3V and 5V.
2>. Is it RGB?
Q : No,Each LED lamp can only emit one color of light.
3>. Can 3 LEDs be illuminated at the same time?
Q : Yes,it can.It can be controlled by yourself.
