Customized Requirements
- Quantity
-
-
- Product Name: OV7670 Camera Module OV7670 Photo Capture Module SCM Suitable For Arduino
- Item NO.: ov7670-2H10
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: OV7670 Camera , OV7670 , Photo Capture Module
- Creation Time: 2024-04-16

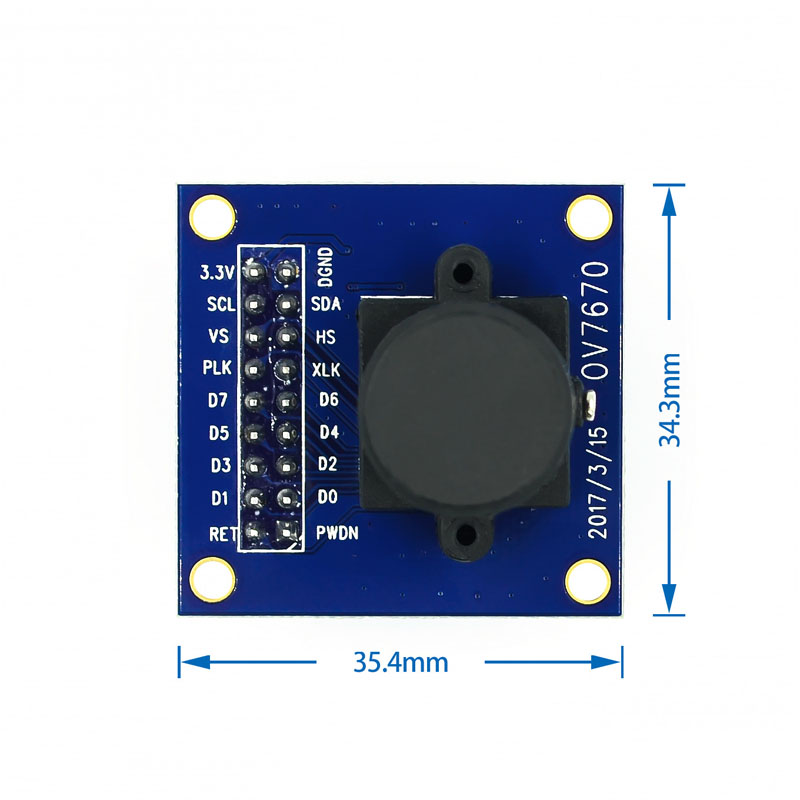

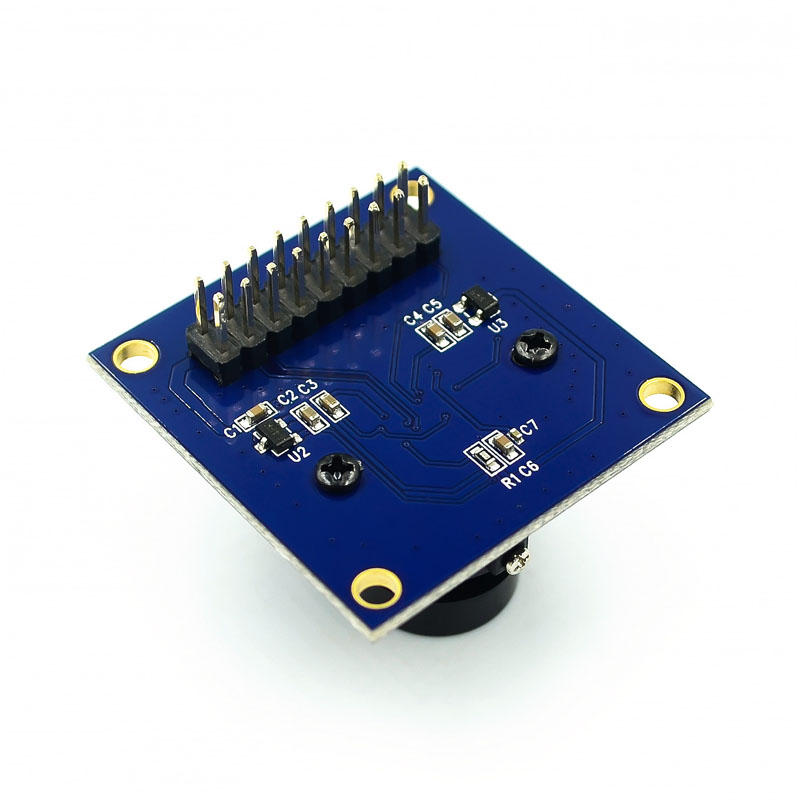

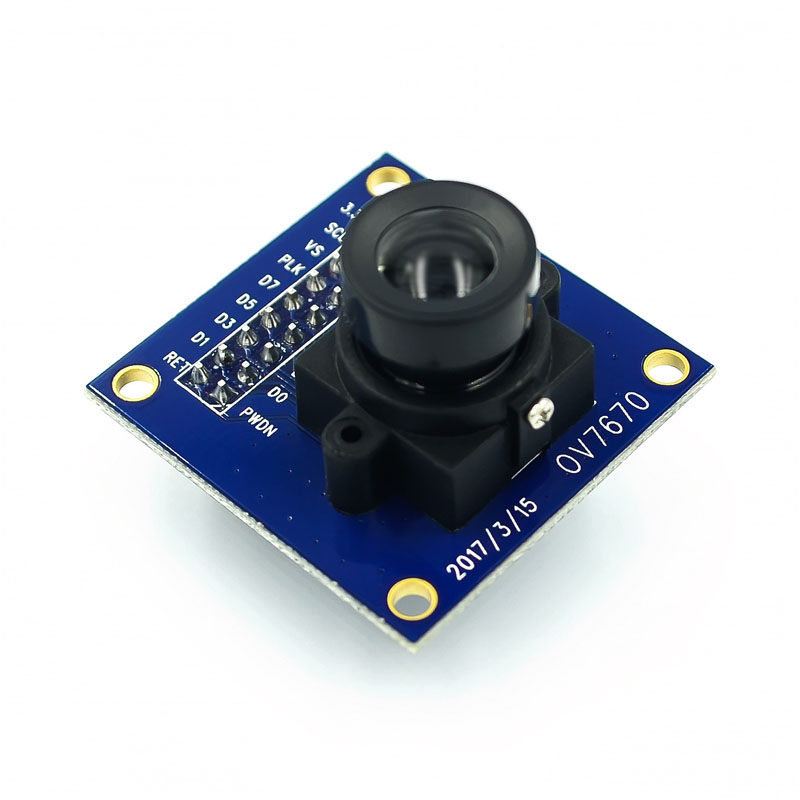

OV7670 Camera Module
Product Information:
● 3V3 ---- Input power supply voltage (3.3, 5V is recommended, but not recommended)
● GDN ---- Ground Point
●SIO_ C -- Control clock of SCCB interface (Note: Some low-level microcontrollers require pull-up control, similar to I2C interface)
●SIO_ D -- Serial data input (output) terminal of the SCCB interface (Note: Some low-level microcontrollers require pull-up control, similar to the I2C interface)
● VSYNC - frame synchronization signal (output signal)
● HREF - Line synchronization signal (output signal)
● PCLK --- Pixel clock (output signal)
● D0-D7 -- Data port (output signal)
● RESTE - Reset the port (pulled up during normal use)
● PWDN - Power consumption selection mode (lower during normal use)
