LM75 Temperature Sensor High-Speed I2C Interface High-Precision Development Board Module LM75AItem NO.: CJMCU75 LM75
-
Customized Requirements
- Quantity
-
-
- Product Name: LM75 Temperature Sensor High-Speed I2C Interface High-Precision Development Board Module LM75A
- Item NO.: CJMCU75 LM75
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: Development Board , Module , LM75 , LM75A , Temperature Sensor , High-Speed
- Creation Time: 2024-03-25

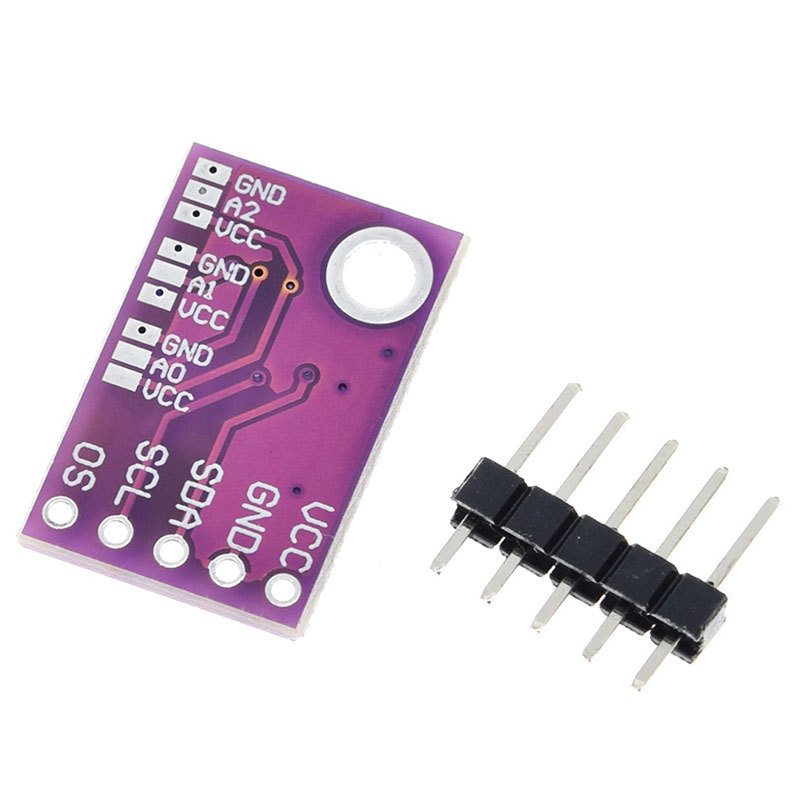

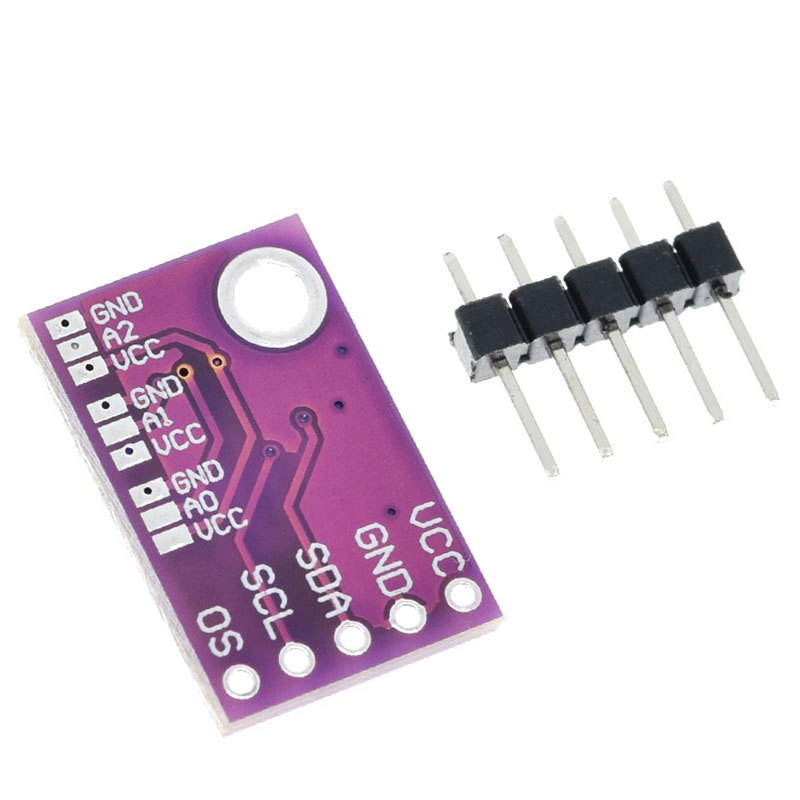

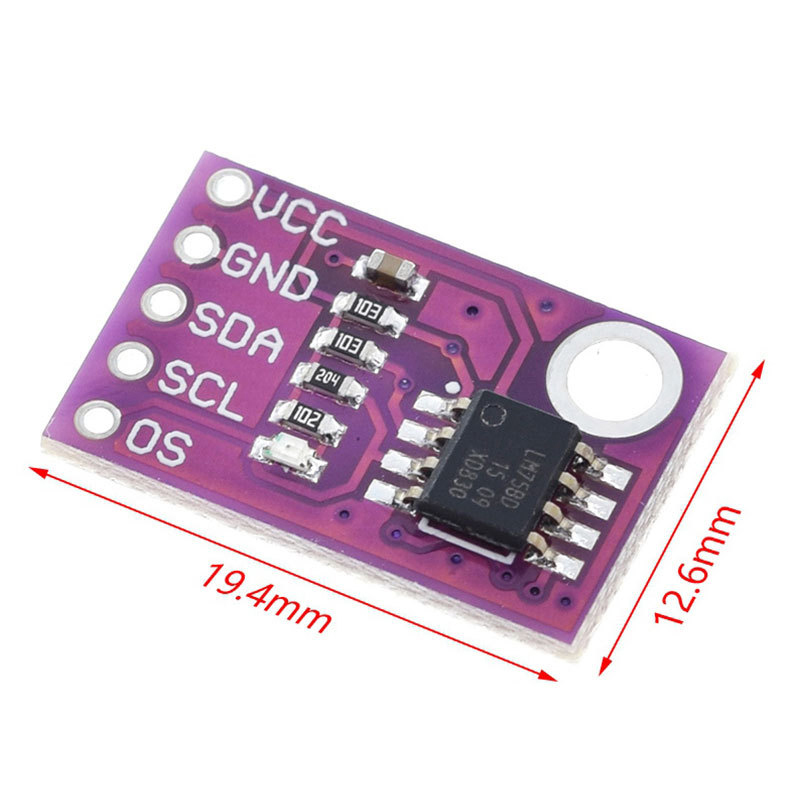

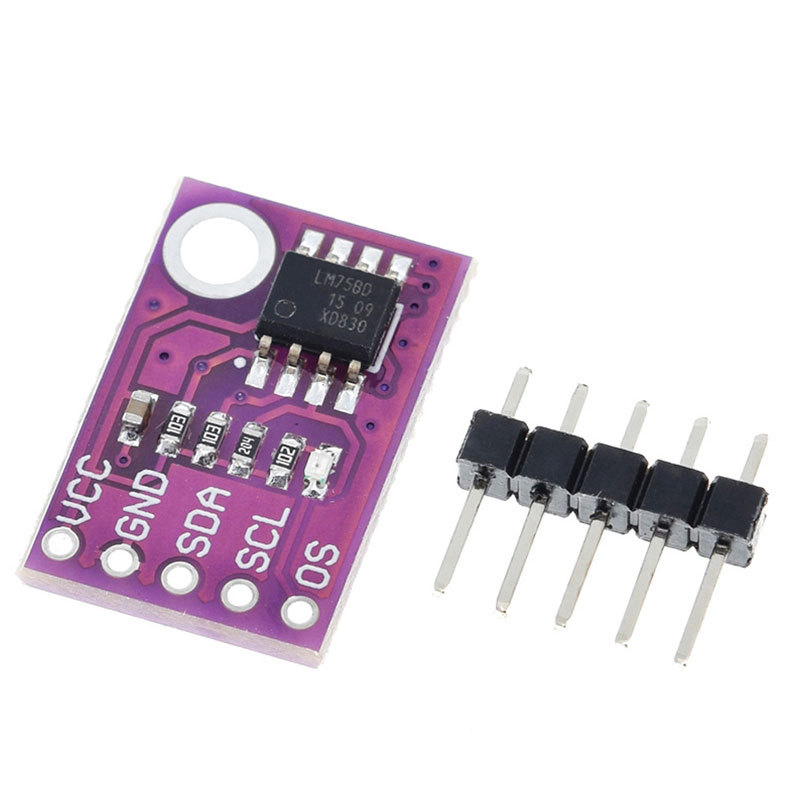

CJMCU75 LM75 Temperature Sensor
Product Information:
LM75A or B is a high-speed I2C interface temperature sensor, which can directly convert temperature into digital signal within the temperature range of - 55 ℃~+125 ℃, and can achieve 0.125 ℃ accuracy. MCU can directly read the data in its internal registers through I2C bus, and can operate four data registers through I2C to set different working modes. LM75A has 3 optional logic address pins, which enables 8 devices to be connected to the same bus at the same time without address conflict.
CJMCU-75 LM75A or B high-speed I2C interface high-precision temperature sensor development board module has the same random delivery function
Product Characteristics:
●I2C bus interface, 7-bit slave address 1001xxx, and 8 devices can be expanded on the same bus;
●Power supply range: 2.8V~5.5V,
●Temperature range: - 55 ℃~+125 ℃;
●The 11 bit ADC provides a temperature resolution of 0.125 ℃;
●Temperature accuracy:
±2℃(-25℃~100℃)
±3℃(-55℃~125℃)
●Programmable temperature thresholds and hysteresis setpoints;
●To reduce power consumption, the current consumed in the off mode is only 1.0 μ A；
●When powered on, the device can be used as an independent temperature controller;
ESD Protection:
●Under the JESD22A114 standard, it can pass the 2000V HBM mode;
●Under JESD22A115 standard, 200V MM mode can be adopted;
●Under JESD22-C101 standard, 1000V CDM mode can be adopted;
●The latch test under JEDEC standard (JESD78) can reach 100mA;
●Small 8-pin package: SO8, TSSOP8 and XSON8U.
