- Product Name: Dual Button Touch Module Capacitive Touch Proximity Sensor Keyboard Sensing Distance Is About 0-5mm
- Item NO.: HW-842
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: Dual Button Touch Module , Capacitive Touch , Proximity Sensor Keyboard Sensing
- Creation Time: 2024-05-08
Dual Button Capacitive Touch Keyboard

Product Introduction:

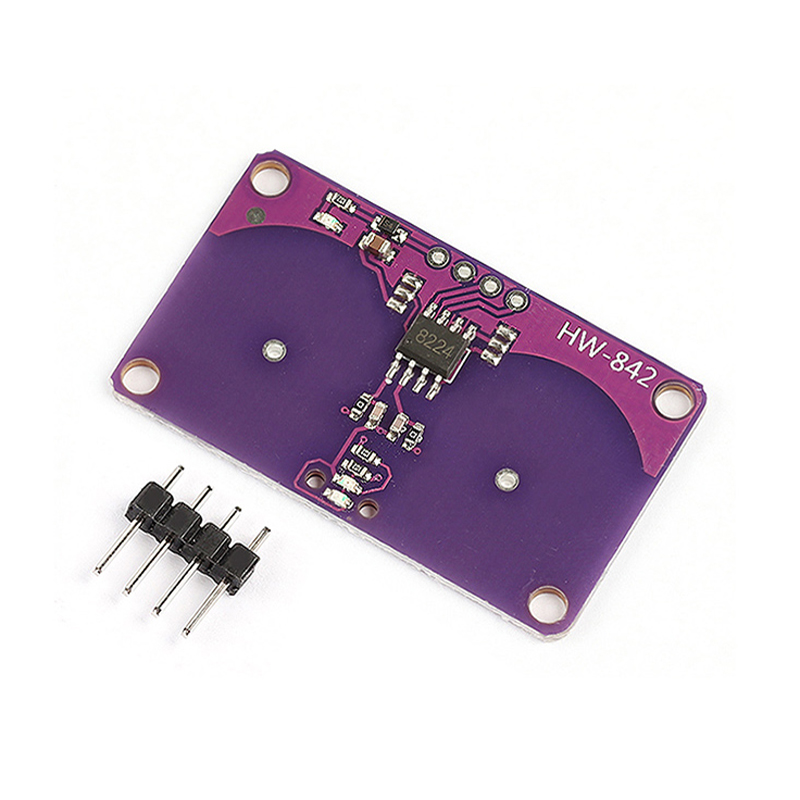

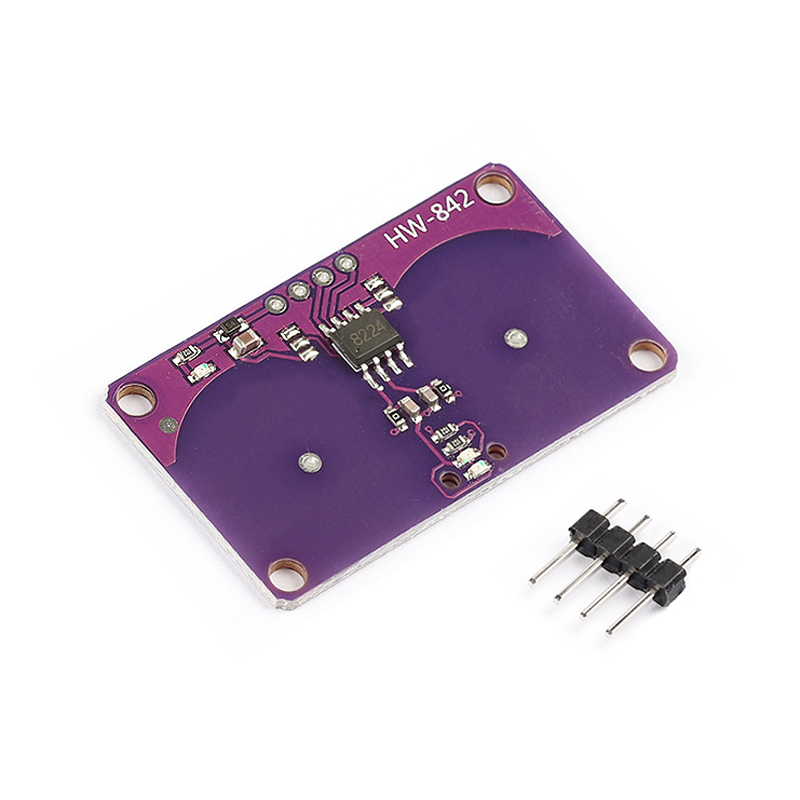

This module is a capacitive electric touch sensor based on a touch detection IC. Under normal conditions, the module outputs a low level, and the mode is low power consumption mode. When touching the corresponding position with a finger, the module will output a high level, and the mode is switched to fast mode; The module can be installed on the surface of non-metallic materials such as plastic, ceramics, glass, and other media. In addition, a thin piece of paper (non-metallic) can be covered on the surface of the module. As long as the touch position is correct, it can be made into buttons hidden in walls, desktop, and other places. This module can help you avoid the trouble of conventional pressing buttons.

Product Parameters:

● Product name: dual button touch module

● Working voltage: 2.2V~5V

● Power consumption: limited to 11.5uA for high power consumption, only 1.5uA for low power consumption mode (both refer to 3V and no load)

● Sensing distance: 0~5mm

● Touch buttons: 2

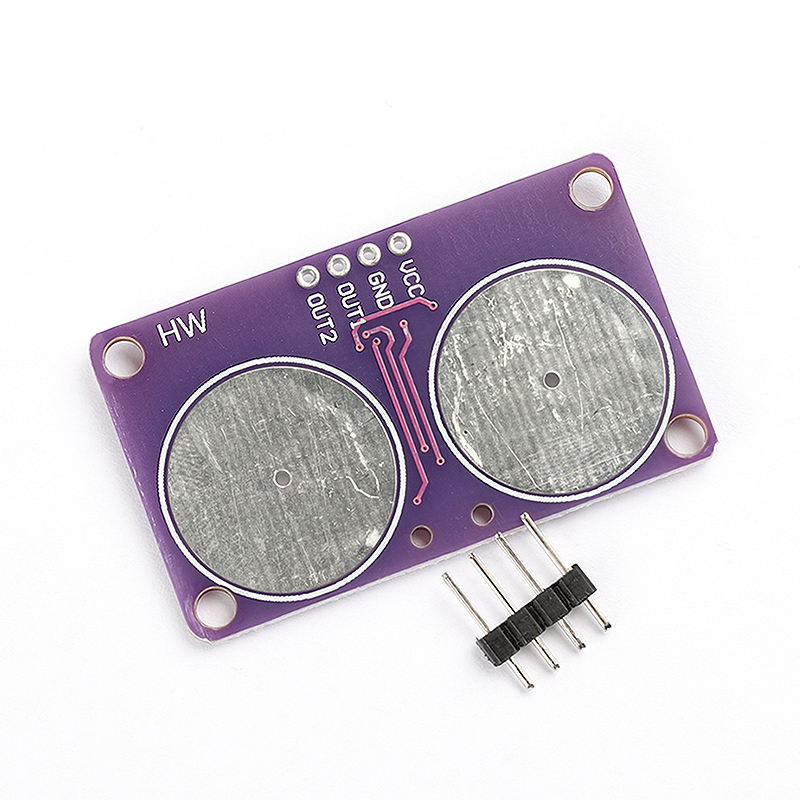

● Control interface: 4 pins in total (VCC, GND, OUT1, OUT2)

● Touch area: The white internal area of the module can be triggered by gently touching with a finger

● Positioning hole: 4 M3 screw positioning holes

● Can be used on media surfaces such as glass, ceramics, and plastics

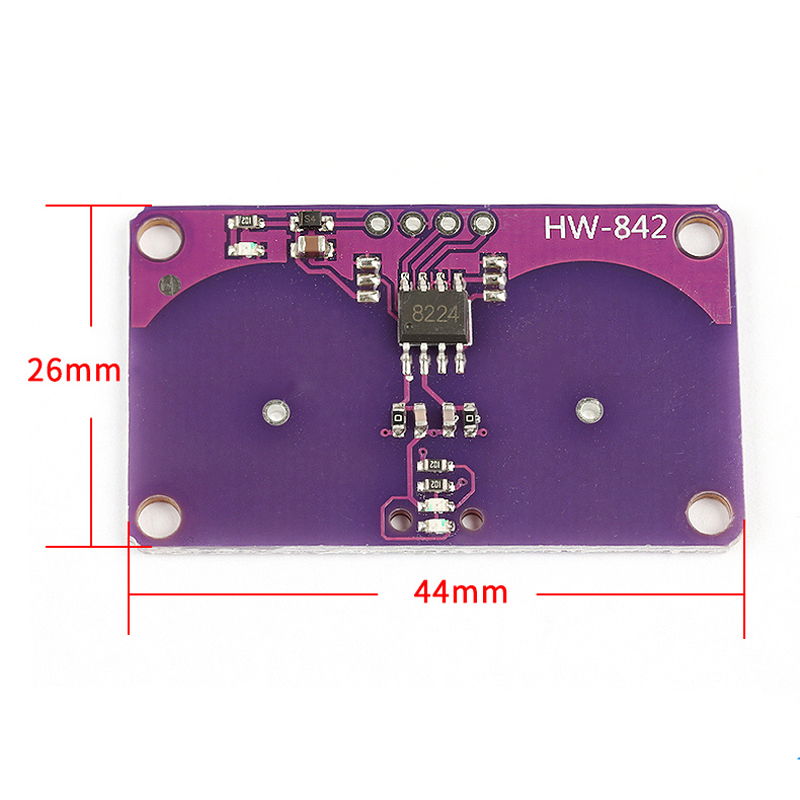

● Product size: 44mm * 26mm
