TTP223 Touch Button Sensor Module Capacitive Switch Self-Locking Jog Mode With LightItem NO.: YS-TM2
-
Customized Requirements
- Quantity
-
-
- Product Name: TTP223 Touch Button Sensor Module Capacitive Switch Self-Locking Jog Mode With Light
- Item NO.: YS-TM2
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: TTP223 , Capacitive Switch , Touch Button Sensor Module , With Light
- Creation Time: 2024-05-08

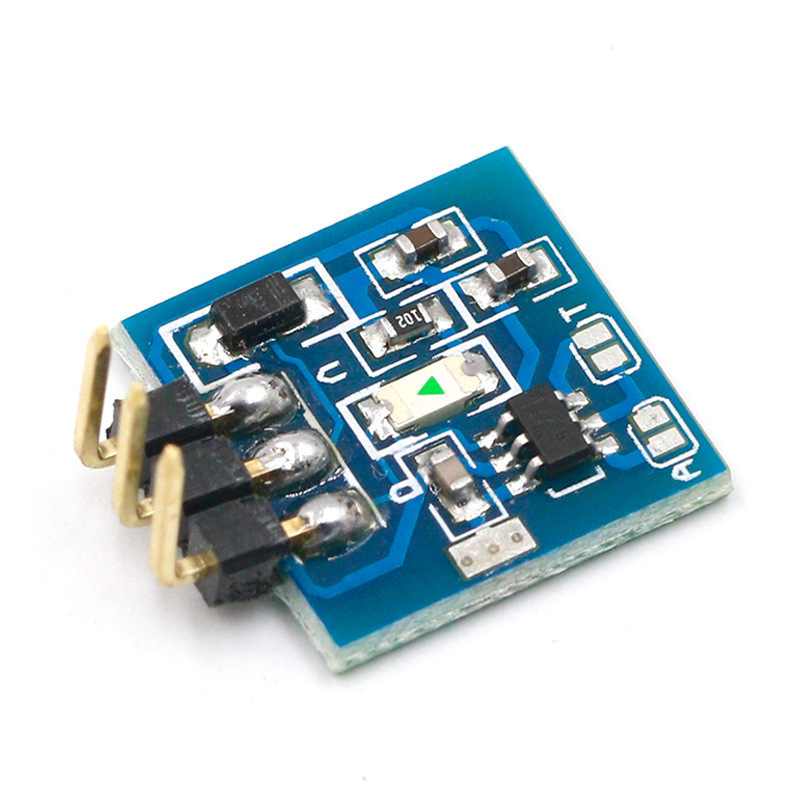

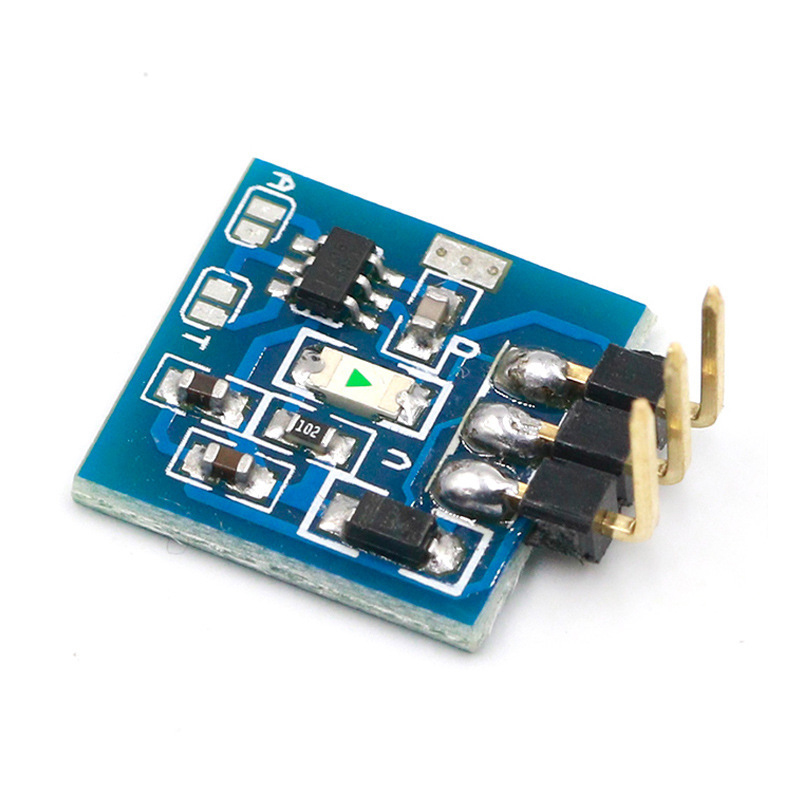

With Light TTP223 Touch Button Sensor Module
Product Information:
This module is a capacitive touch switch module based on touch detection IC (TTP223B). This module outputs low level by default, and the mode is low power consumption mode; When touching the corresponding position with your finger, the module will output a high level, and touch it again to restore the low level. Switch the mode to fast mode; When there is no touch for 12 seconds, the mode switches to low power consumption mode. The module can be installed on the surface of non-metallic materials such as plastic and glass, and a thin sheet of paper (non-metallic) can be covered on the surface of the module. As long as the touch position is correct, keys can be made to hide in walls, desks, and other places. This module allows you to avoid the hassle of pressing conventional buttons.
Product Parameters:
● Power supply voltage: 3-5. 5V
● Standby current: 0.02 ma (when not lit), 1.8 ma when lit
● Output level: The high level is basically consistent with the power supply voltage
● Output current: less than 8 ma
● Touch surface specification: 1.4 * 1.4cm
● Working mode: inching, self-locking (switching of electric soldering iron welding)
● Penetration distance: within 5mm (non-metallic material)
