Customized Requirements
- Quantity
-
-
- Product Name: MICS-4514 Gas Sensor Module CO/NO2/NH3/CH4 Concentration Detection
- Item NO.: MICS-4514
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: Gas Sensor Module , MICS-4514 , CO/NO2/NH3/CH4 Concentration Detection
- Creation Time: 2024-05-08

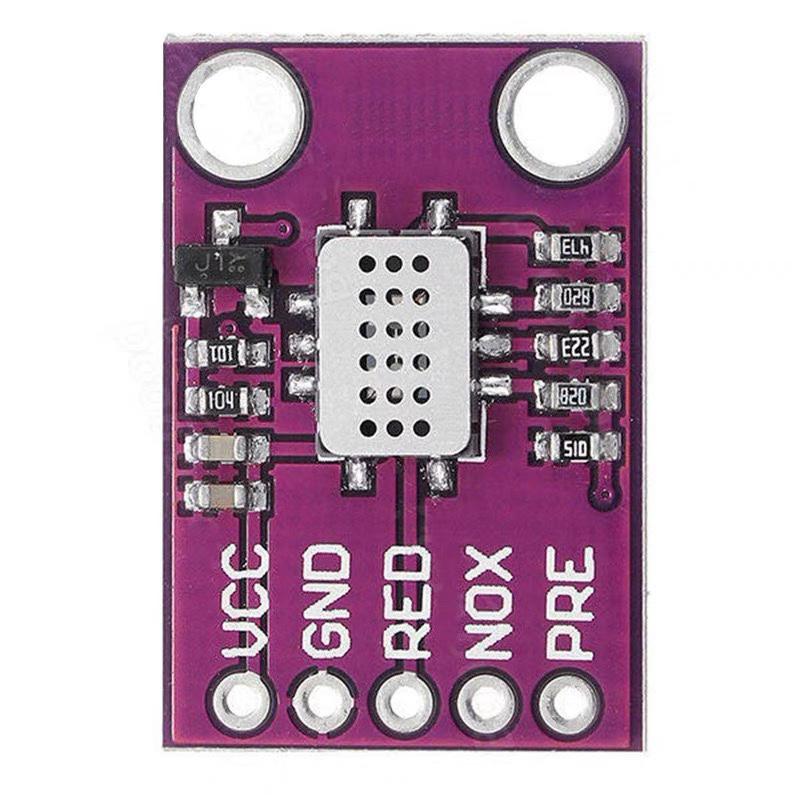

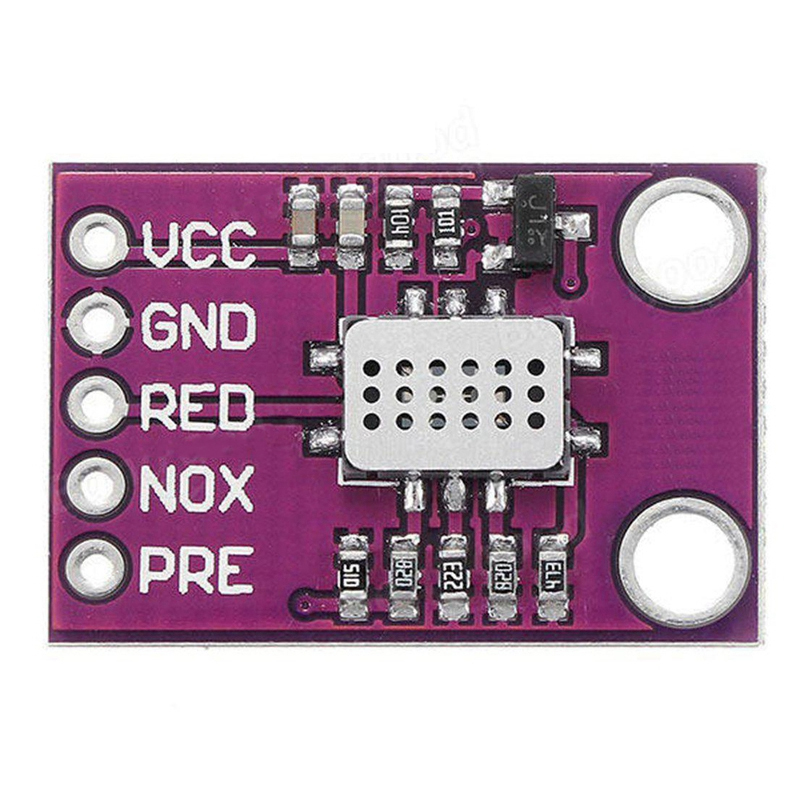

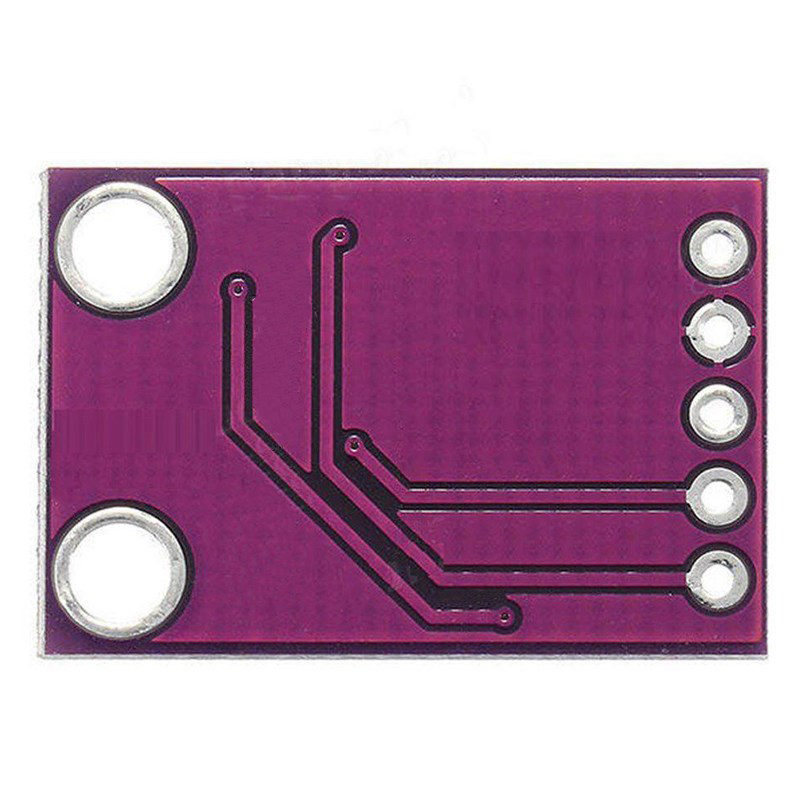

MICS-4514 Gas Sensor Module
Product Characteristics:
The silicon gas sensor chip structure consists of a sensitive micromechanical membrane, an upper sensing layer, and an embedded heating resistor. Three independent gas detection elements are integrated. In harsh environments, automotive exhaust can be detected as industrial and agricultural exhaust.
Product Parameters:
● Module power supply voltage: DC4.9V-5.1V
● Working environment temperature and humidity: - 30 ° C-85 ° C 5-95% RH
● Module size: 16.9mm * 14.1 * 3.2mm with two M3 mounting holes
● Detectable gas range:
Carbon monoxide CO 1-1000ppm
Nitrogen dioxide NO2 0.05-10ppm
Ethanol C2H5OH 10-500ppm
Hydrogen H1 1-1000ppm
Ammonia NH3 1-500ppm
Methane CH4>1000ppm
Propane C3H8>1000ppm
Isobutane C4H10>1000ppm
Package Includes:
One MICS-4514 gas sensor module CO/NO2/NH3/CH4 concentration detection
