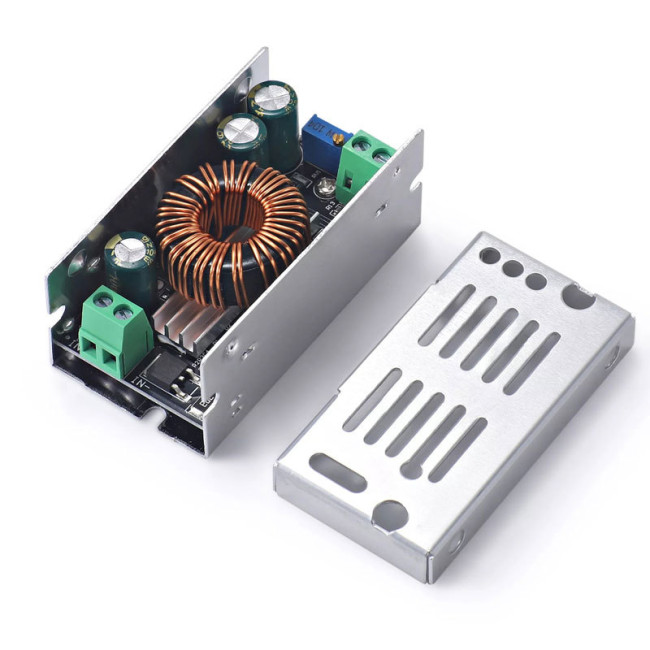

DC-DC Adjustable Step-Down Power Module 6A High Voltage 90V72V60V36V Vehicle Power Supply 100WItem NO.: MK00765

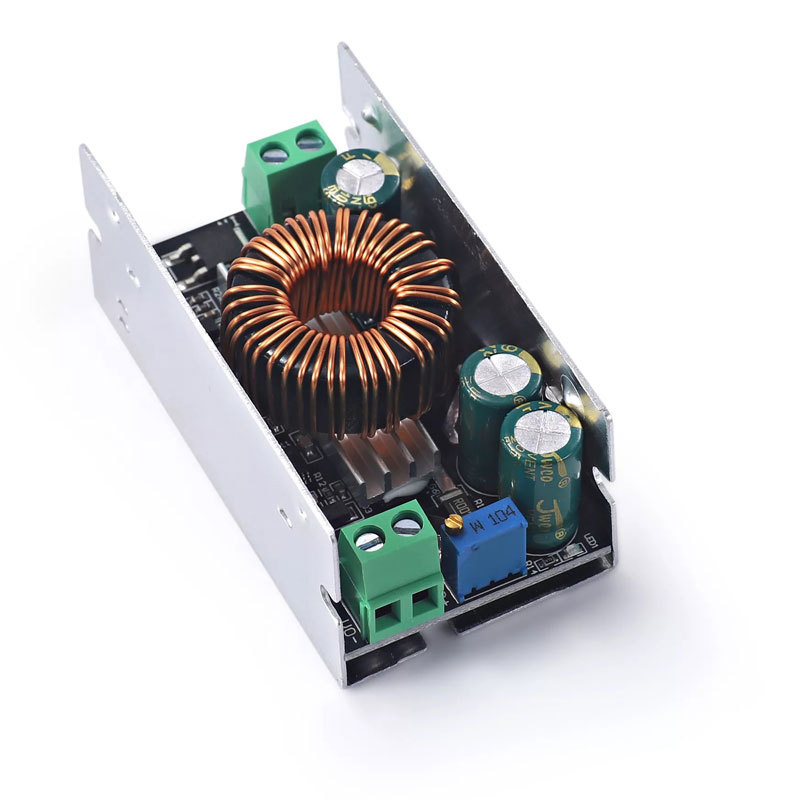

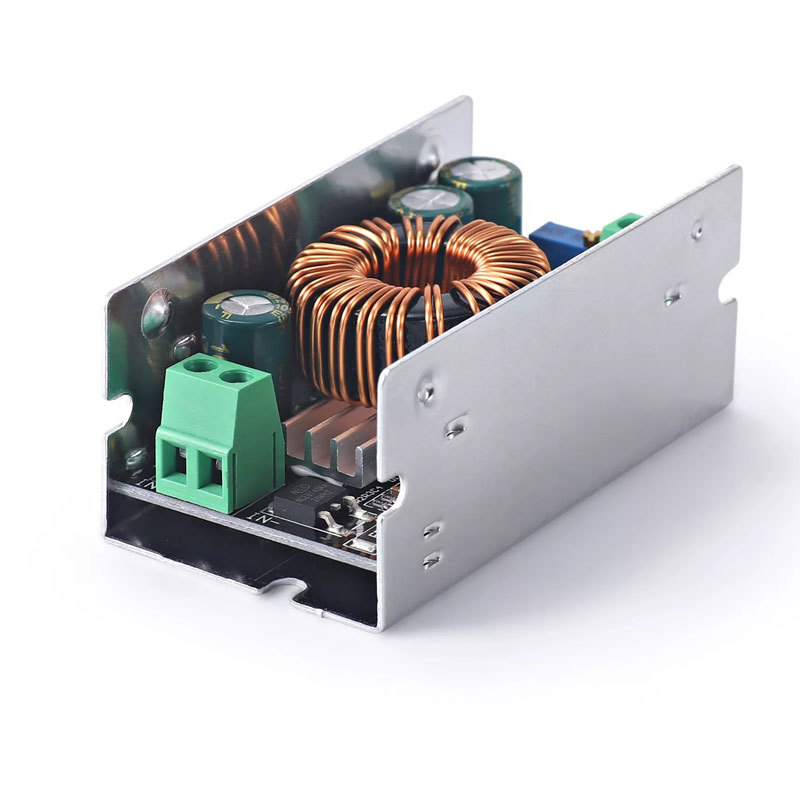

High Voltage Adjustable Step-Down Power Module

Synchronous Rectification Technology Introduction:

Synchronous rectification is a new technology that uses special power MOSFETs with extremely low on-state resistance to replace rectifier diodes to reduce rectification losses. It can greatly improve the efficiency of the DC/DC converter and there is no dead-time voltage caused by the Schottky barrier voltage. Power MOSFET is a voltage-controlled device, and its volt-ampere characteristics are linear when it is turned on. When using a power MOSFET as a rectifier, the gate voltage must be synchronized with the phase of the rectified voltage to complete the rectification function, so it is called synchronous rectification. Synchronous rectification technology greatly reduces the rectification loss at the output end of the switching power supply, thereby improving the conversion efficiency and reducing the heat of the power supply itself.

Module Parameters:

● Module nature: synchronous rectification non-isolated step-down module

● Input voltage: 10-90VDC

● Output voltage: 1.5-60VDC (suitable for applications where the input voltage is higher than the output voltage and cannot be boosted)

● Output current: maximum 6A (please derate when using high voltage output, and additional cooling is required when the module temperature exceeds 65 degrees)

● Maximum power: 100W (maximum current is 6A at low voltage output. Maximum power is 100W at high voltage output)

● Working frequency: 180KHZ

● Conversion efficiency: 97.5% (typ.)

● Input anti-reverse connection: yes

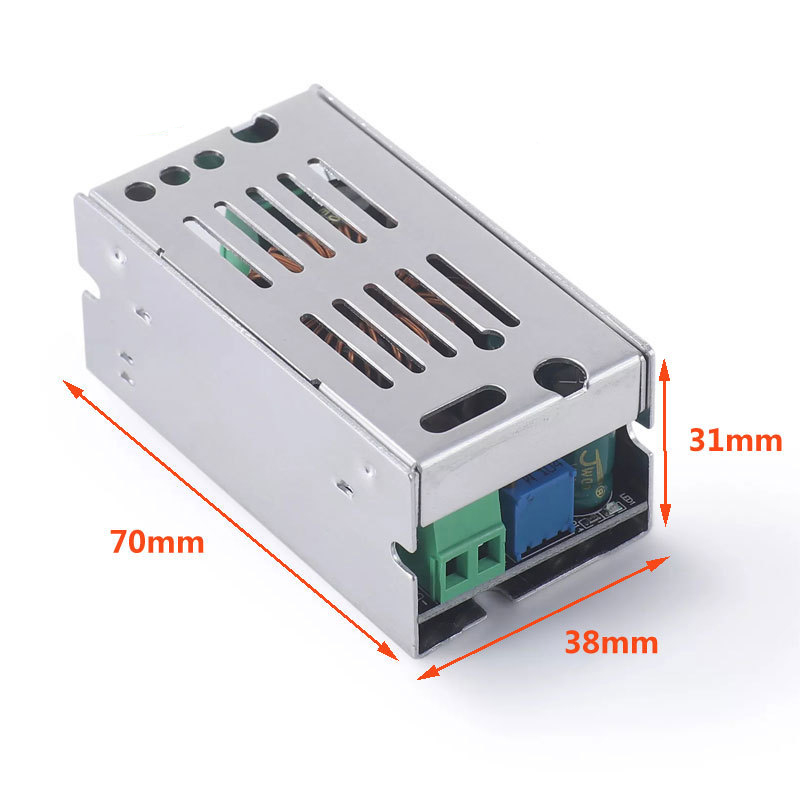

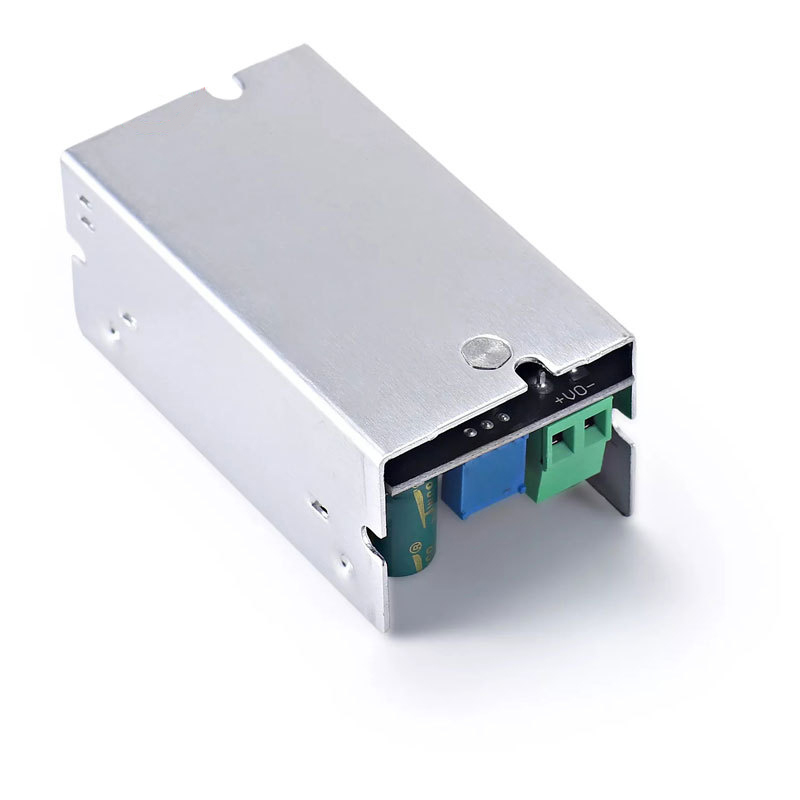

● Aluminum shell size: 70MM*38MM*31MM

● Weight: about 70g
