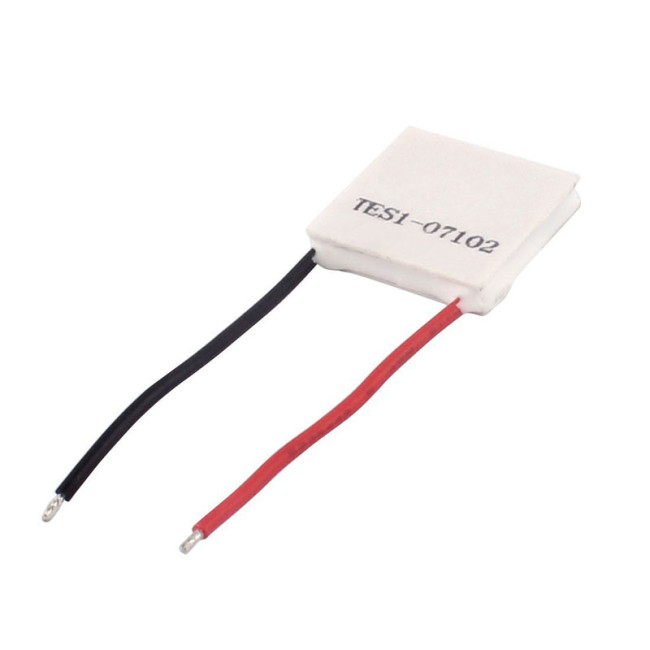

Small Power Cooling Sheet TES1-7102 TEC1-07102 Thermoelectric Generator Sheet 23*23mmItem NO.: TES1-7102
-
Customized Requirements
- Quantity
-
-
- Product Name: Small Power Cooling Sheet TES1-7102 TEC1-07102 Thermoelectric Generator Sheet 23*23mm
- Item NO.: TES1-7102
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: Small Power Cooling Sheet , TES1-7102 , TEC1-07102 , Thermoelectric Generator Sheet , Cooling Sheet
- Creation Time: 2024-04-12

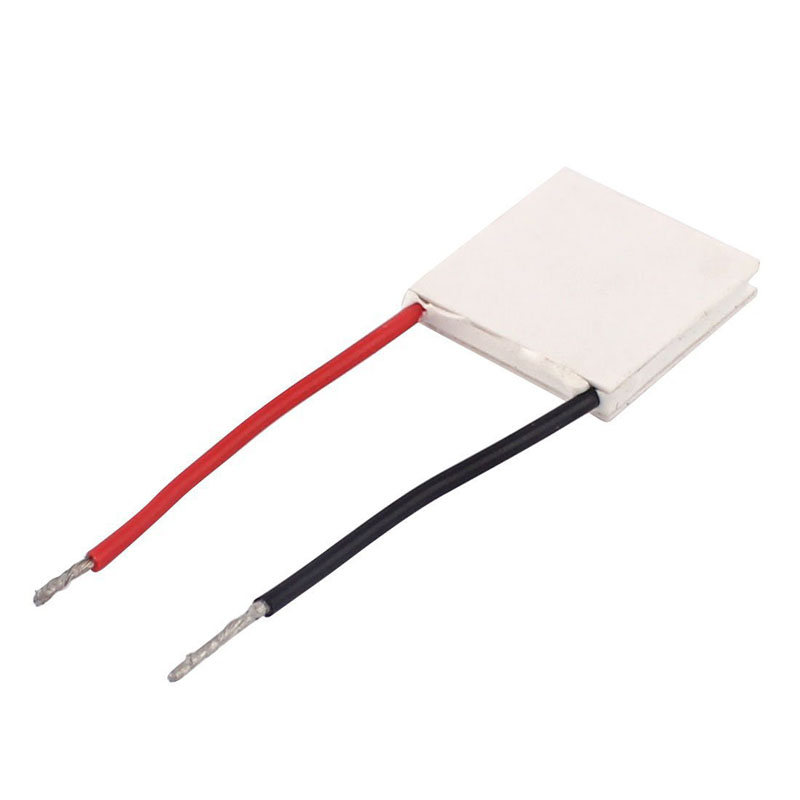

TES1-7102 Cooling Sheet
TES1-7102 Parameters:
● Chip model: TES1-7102
● Boundary dimension: 23 * 23 * 4mm element pairs 71
● Conductor specification: 26AWG silicone flexible wire, length 150mm, 3mm tinned
● Internal resistance: 2.5 Ω ± 0.2 Ω
● Large temperature difference: △ Tmax (Qc=0) above 66 ℃.
● Maximum current: Imax=2A
● Maximum voltage: Vmax=8.4V
● Cooling power: Qcmax 9.1W
● Assembly pressure: 85N/cm2
● Working environment: temperature range - 55 ℃~83 ℃ (high ambient temperature will directly affect the refrigeration efficiency)
● Packaging process: standard 704 silicone rubber sealing around
● Packaging standard: foam box packaging, storage conditions, ambient temperature - 10 ℃~40 ℃
