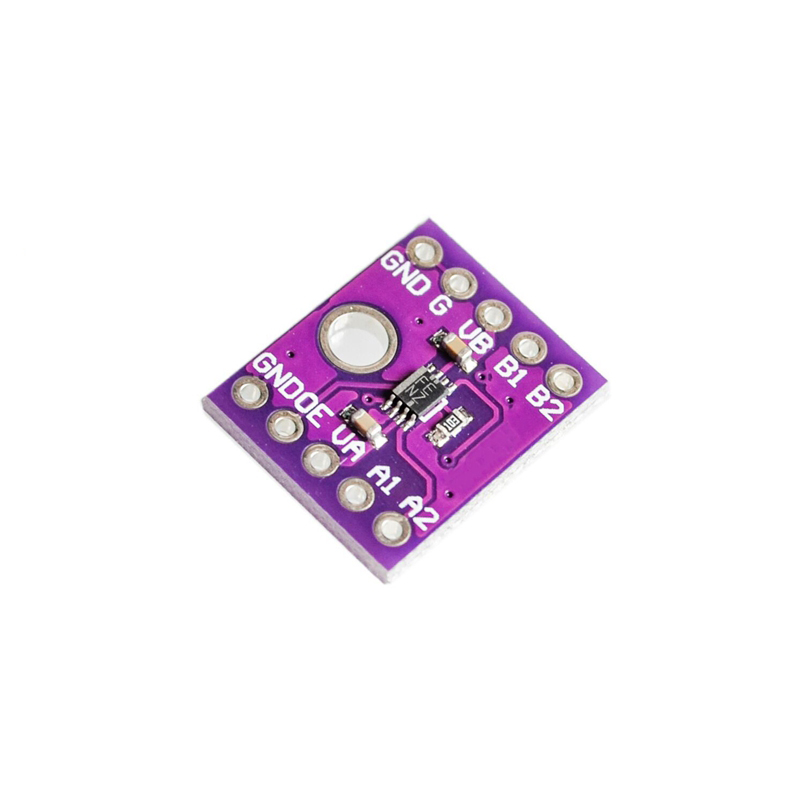

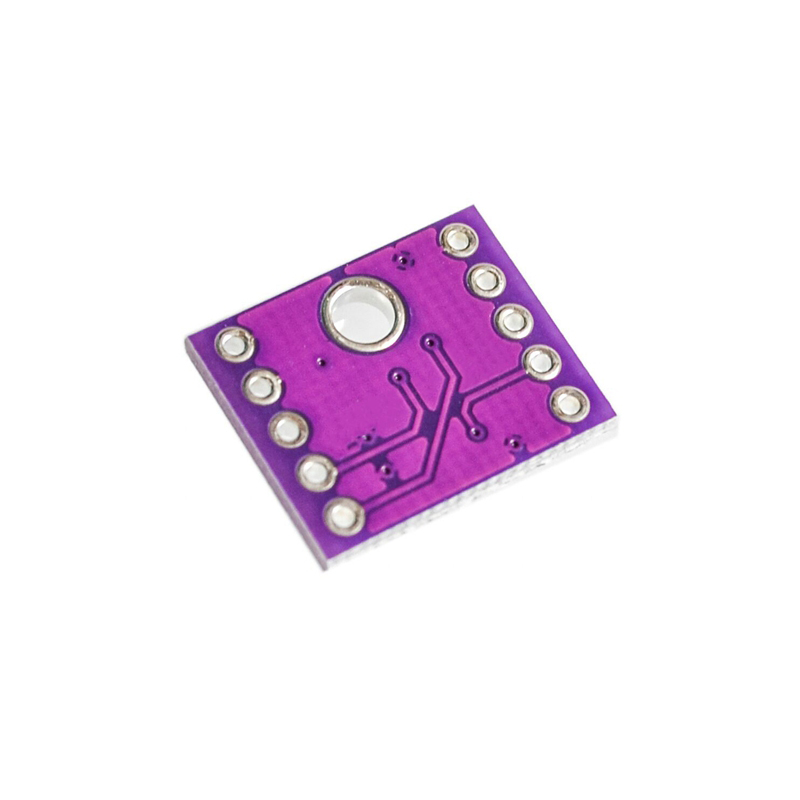

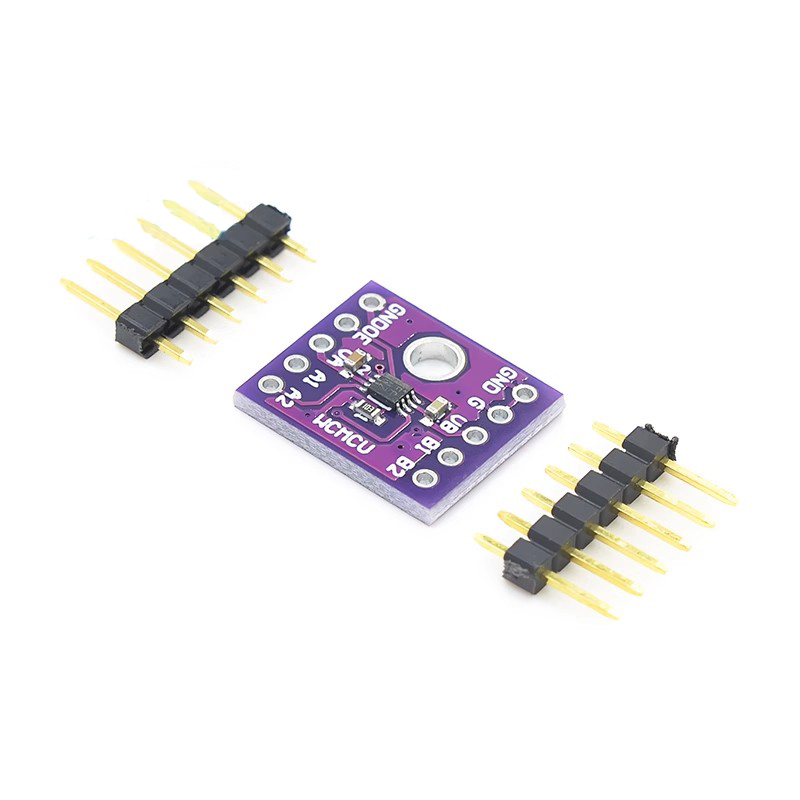

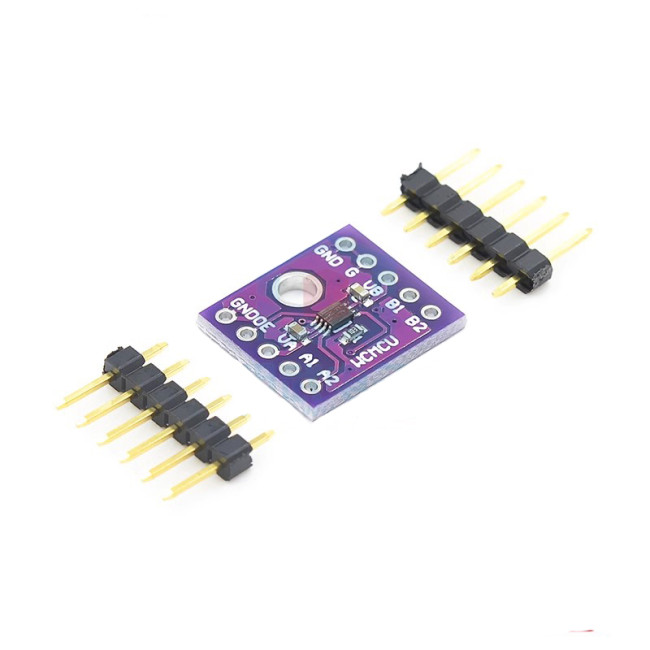

TXS10102 2-bit Bidirectional Voltage Level Converter I2C IIC 2-way Level Conversion Board ModuleItem NO.: TXS0102 2bit
-
Customized Requirements
- Quantity
-
-
- Product Name: TXS10102 2-bit Bidirectional Voltage Level Converter I2C IIC 2-way Level Conversion Board Module
- Item NO.: TXS0102 2bit
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Other Electronic Modules
- Tag: TXS10102 , 2-bit Bidirectional Voltage Level Converter , I2C IIC 2-way Level Conversion Board Module
- Creation Time: 2024-04-16
TXS10102 2-bit Bidirectional Voltage Level Converter
Product Description:
This two-bit non-inverting translator is a bidirectional voltage-level translator and can be used to establish digital switching compatibility between mixed-voltage systems. It uses two separate configurable power-supply rails, with the A ports supporting operating voltages from 1.65 V to 3.6 V while it tracks the VCCA supply, and the B ports supporting operating voltages from 2.3 V to 5.5 V while it tracks the VCCB supply. This allows the support of both lower and higher logic signal levels while providing bidirectional translation capabilities between any of the 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes.
When the output-enable (OE) input is low, all I/Os are placed in the high-impedance state, which significantly reduces the power-supply quiescent current consumption.
To ensure the high-impedance state during power up or power down, OE should be tied to GND through a pulldown resistor; the minimum value of the resistor
