Tracking Sensor Car Tracking Module TCRT5000 Infrared Reflection Sensor Photoelectric SwitchItem NO.: TCRT5000 infrared tracking

US$ 2.66

Quantity: 1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs

Customized Requirements

Quantity: Stock ( 49999995 )

Estimate Shipping Cost

Adding to cart succeed

Tracking Sensor Car Tracking Module TCRT5000 Infrared Reflection Sensor Photoelectric Switch

color:red,size:xxl

Subtotal: US$ 0

View My Cart

Checkout

Detail

- Product Name: Tracking Sensor Car Tracking Module TCRT5000 Infrared Reflection Sensor Photoelectric Switch
- Item NO.: TCRT5000 infrared tracking
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Other Electronic Accessories > Intelligent Car Accessories
- Tag: TCRT5000 , Photoelectric Switch , Tracking Sensor , Car Tracking Module , Infrared Reflection Sensor
- Creation Time: 2024-03-28

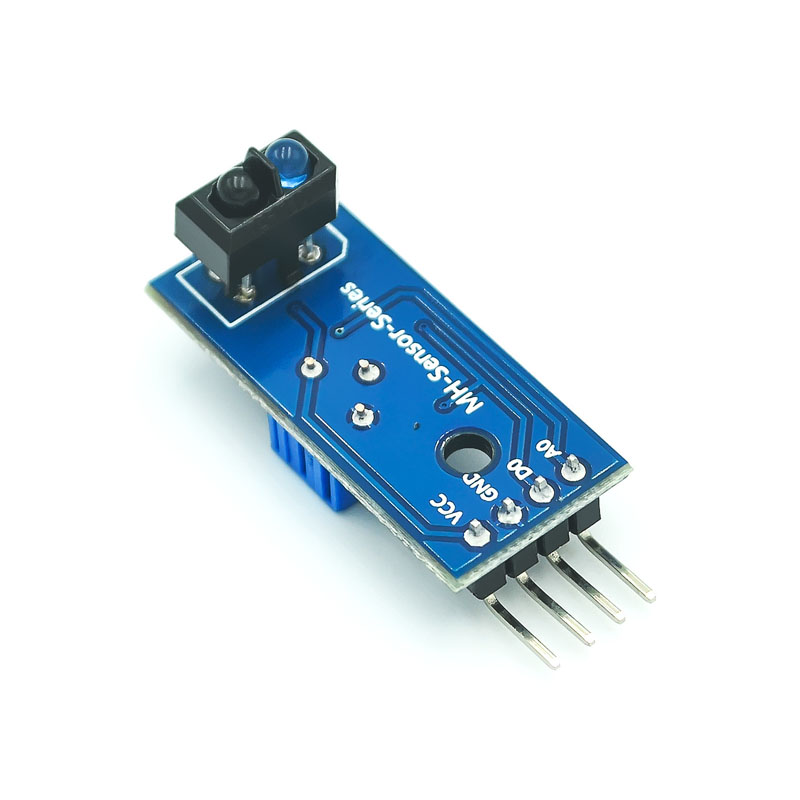

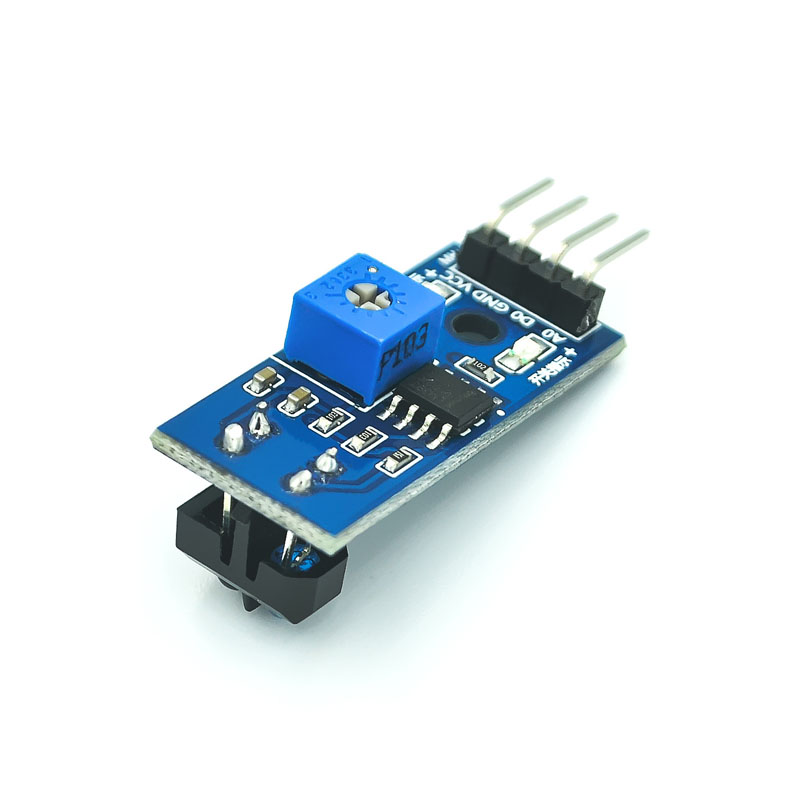

TCRT5000 Tracking Sensor Module

Function Introduction:

The infrared transmitting diode of the TCRT5000 sensor continuously emits infrared rays. When the infrared rays emitted are not reflected back or are reflected back but not strong enough, the infrared receiving tube is always in the off state. At this time, the output terminal of the module is high, indicating that the diode is always in the off state; When the detected object appears in the detection range, the infrared ray is reflected back with enough intensity, and the infrared receiver tube is saturated. At this time, the output terminal of the module is low level, and the indicator diode is lit.

Product Use:

1. Pulse data sampling of watt hour meter

2. Fax shredder paper detection

3. Obstacle detection

4. Black and white line detection

Product Introduction:

1. TCRT5000 infrared reflective sensor

2. Detection reflection distance: 1mm~25mm applicable

3. The comparator outputs clean signals, good waveforms and strong driving capacity, exceeding 15mA.

4. Adjustment sensitivity of distribution potentiometer

5. Working voltage 3.3V-5V

6. Output form: digital switching output (0 and 1)

7. Fixed bolt holes are provided for easy installation

8. Small PCB size: 3.2cm x 1.4cm

9. Use wide voltage LM393 comparator

Wiring Mode:

1. VCC: Connected to the positive pole of power supply (3-5 V)

2. GND: connected to power cathode

3. DO: TTL switch signal output

4. AO: analog signal output (different voltages are output at different distances, and this pin may not be connected generally)
