Home>Electronic Modules>Sensor Module>Turbidity Detection Sensor Liquid Suspended Particle Wastewater Quality Detection Turbidity Value Detection Module Kit
Turbidity Detection Sensor Liquid Suspended Particle Wastewater Quality Detection Turbidity Value Detection Module Kit

Turbidity Detection Sensor Liquid Suspended Particle Wastewater Quality Detection Turbidity Value Detection Module KitItem NO.: Turbidity detection sensor

US$ 12.40
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
Turbidity Detection Sensor Liquid Suspended Particle Wastewater Quality Detection Turbidity Value Detection Module Kit
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy
  • Turbidity Detection Sensor



    Introduction To Turbidity Sensor:



    The turbidity sensor uses the optical principle to comprehensively judge the turbidity through the transmittance and scattering rate of the liquid solution. Since the turbidity value is a gradual change, it is usually detected in a dynamic environment. The turbidity value collected by the sensor needs to be externally controlled for AD conversion to obtain the turbidity in the corresponding environment,



    The sensor also needs to make a peripheral circuit to detect in the system. With a waterproof probe, it is mainly applicable to turbidity detection of washing machines, dishwashers and other equipment, and can also be used in electronic design, graduation design, electronic competition experiment and other applications.



    Technical Parameters:



    1. Working voltage: DC 5V

    2. Working current: 30mA (MAX)

    3. Response time:<500ms

    4. Insulation resistance: 100M Ω (Min)

    5. Output mode I: analog output 0-4.5V

    6. Output mode 2: high/low level signal, high level: 5V, low level: 0V

    7. Operating temperature: - 30 ℃ - 80 ℃

    8. Storage temperature: - 10-80 ℃

    9. Weight: 55g

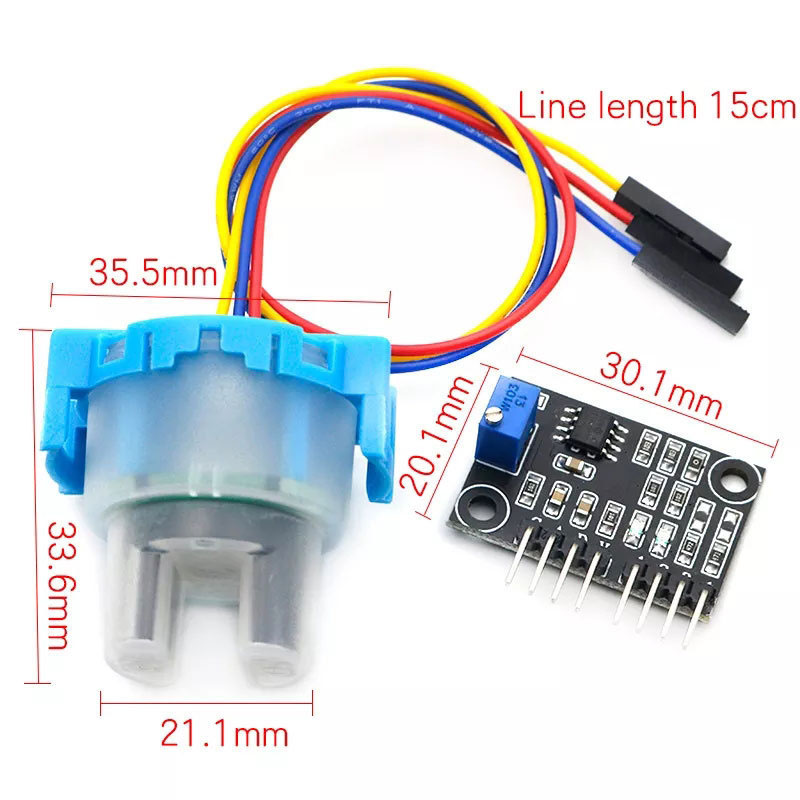

    10. Size: 30 * 20 * 12mm



    Scope Of Application:



    Washing machine, dishwasher, industrial field control, environmental sewage collection and other occasions requiring turbidity detection and control
