USB Charging Current/Voltage Detector USB Current/Voltage Tester Mobile Power Tester

USB Charging Current/Voltage Detector USB Current/Voltage Tester Mobile Power TesterItem NO.: MK00823

US$ 3.54
Model
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
USB Charging Current/Voltage Detector USB Current/Voltage Tester Mobile Power Tester
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy

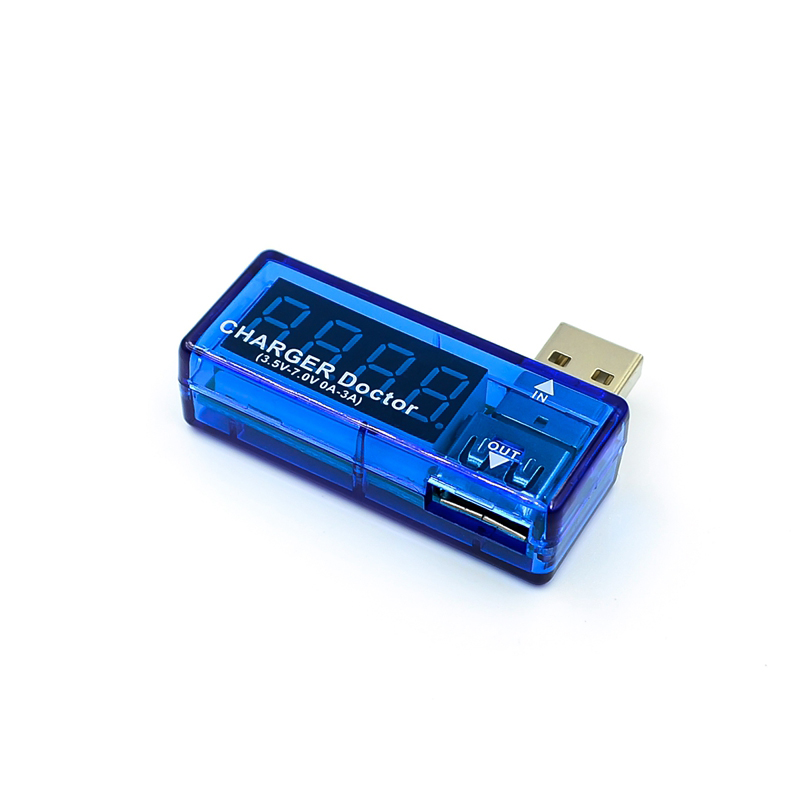

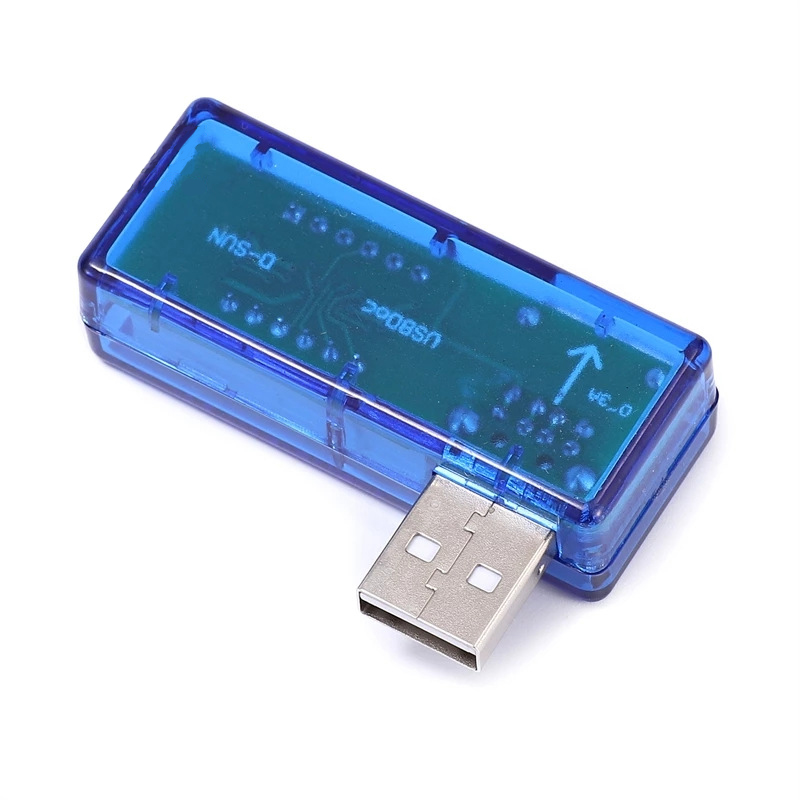

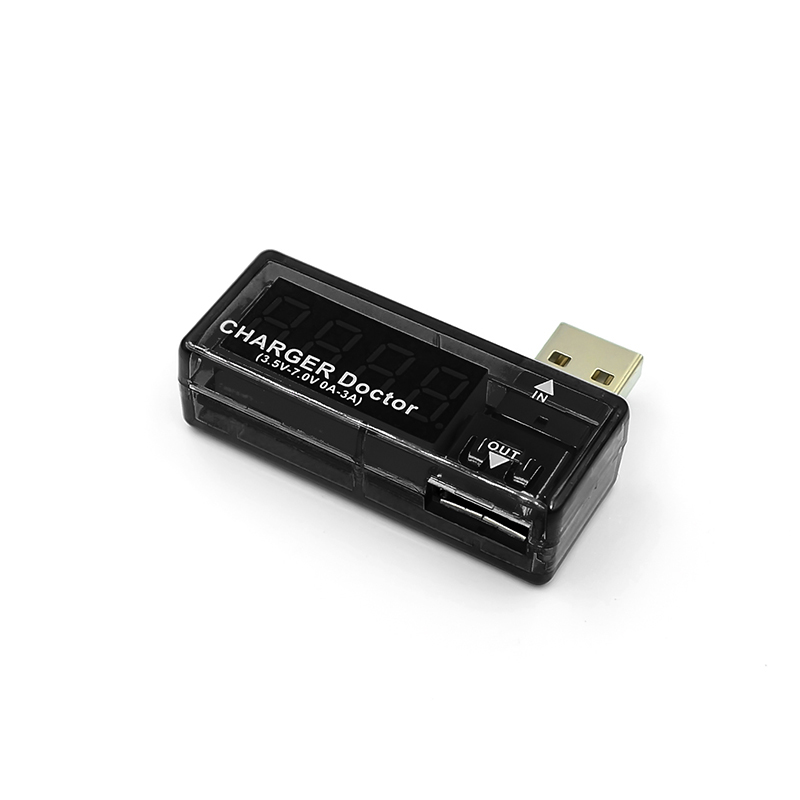

  • USB Charging Current/Voltage Detector



    Technical indicators:



    Scope of work: Current (0-2.5A) Check if the voltage of the mobile phone charger can meet the standard of DC5V

    Working range: U=3~7.5V I=0~2.5A

    Resolution: Voltage 10mV Current 10mA

    Error: Voltage<± 1% Current<± 2%

    Full range voltage drop: 200mV (when measuring current)

    Working temperature: 0-60 ℃

    Product size: 53 * 35 * 14mm

    Packaging: PE bag



    This electric energy tester adopts a new generation of 4-bit and a half double integral cycle conversion integrated circuit, equipped with a precision bandgap reference source, with accurate range, high accuracy, stable operation, reliable performance, strong anti-interference ability, and high temperature resistance. It can be used to measure the power supply or consumption of USB interfaces, mobile phone chargers, USB drives, and other products.



    1. This product can measure the voltage of USB power supply equipment during idle and load conditions, as well as the voltage and current of USB terminal equipment during operation.

    2. Current and voltage cycle display, easy to use, convenient and practical.

    3. Compact and easy to carry, without the need for additional power supply.
