Home>Electronic Modules>Switch/Relay Module>Vibration Sensor Piezoelectric Plate Knocking Vibration Switch Module Vibration Detection Head
Vibration Sensor Piezoelectric Plate Knocking Vibration Switch Module Vibration Detection Head

Vibration Sensor Piezoelectric Plate Knocking Vibration Switch Module Vibration Detection HeadItem NO.: Vibration switch

US$ 2.36
Model
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
Vibration Sensor Piezoelectric Plate Knocking Vibration Switch Module Vibration Detection Head
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy

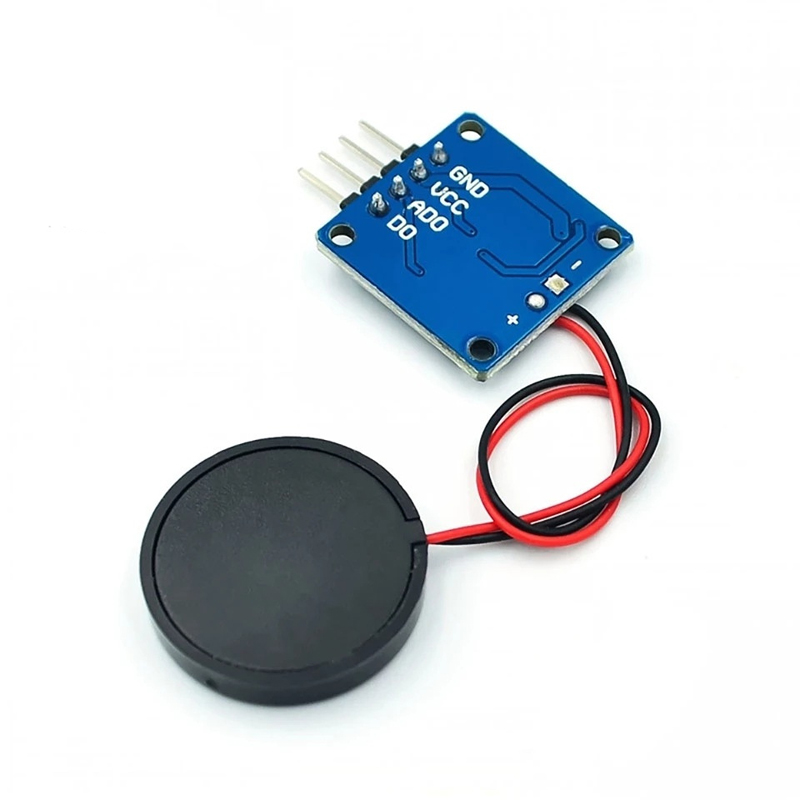

  • Vibration Sensor Switch Module



    Component Introduction:

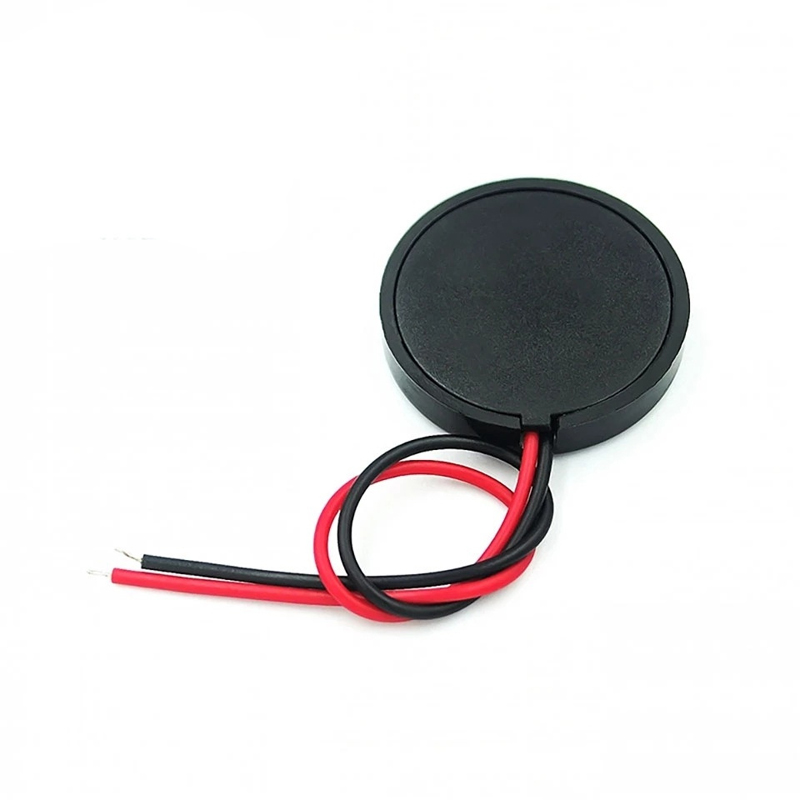

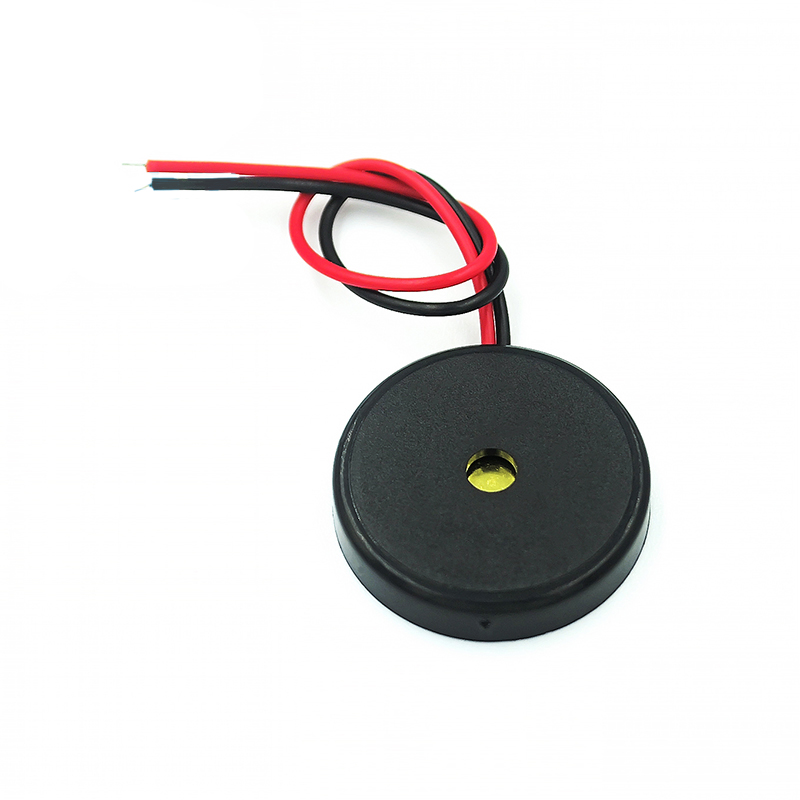

    When voltage acts on piezoelectric ceramics, mechanical deformation occurs with changes in voltage and frequency. On the other hand, when piezoelectric ceramics are vibrated, an electric charge is generated. Using this principle, a vibrator composed of two piezoelectric ceramics or one piezoelectric ceramic and one metal sheet is used



    Product Introduction:



    ● Voltage: 5V

    ● Output signal LED indication.

    ● TTL level output

    ● TTL outputs a valid signal at a high level The output control current can reach 1A, and high-power LED lights can be connected externally.

    ● Analog signal output, with higher output voltage based on higher vibration intensity

    ● Vibration amplitude sensitivity can be adjusted through potentiometer. (Low sensitivity for left turns and high sensitivity for right turns)

    ● Sensitivity can be adjusted to respond by blowing with your mouth... Sensitivity is very high!!!! It can also be adjusted to manually tap for output.

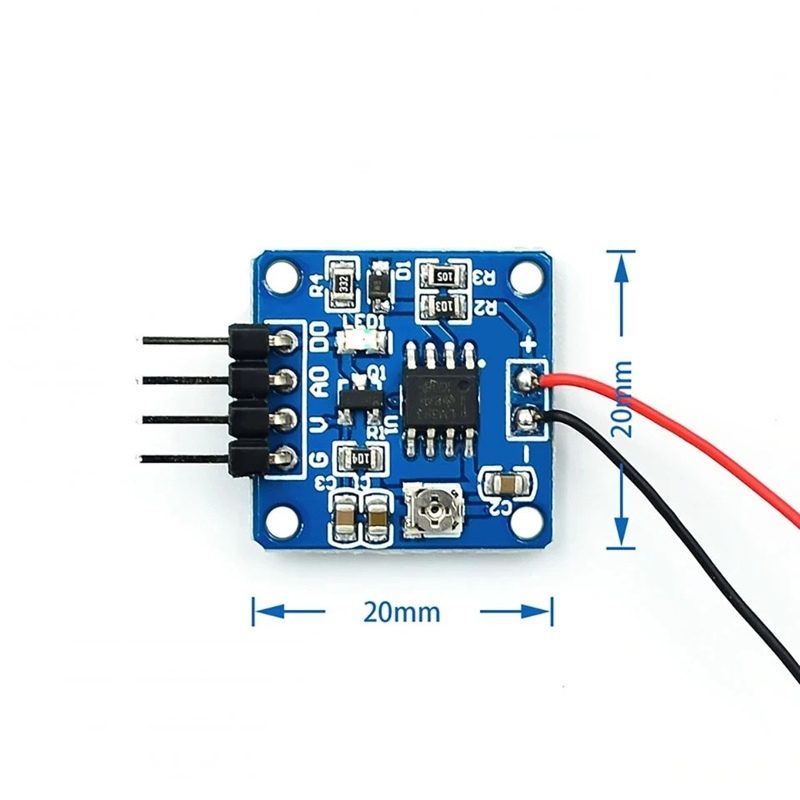

    ● Size: 20.5X20.5 (in millimeters)

    ● Weight: 4.25 (in grams)
