GY-26 Electronic Compass Module Robot Accessories For Robot Navigation, Positioning, Marine AutopilotItem NO.: GY-26
-
Customized Requirements
- Quantity
-
-
- Product Name: GY-26 Electronic Compass Module Robot Accessories For Robot Navigation, Positioning, Marine Autopilot
- Item NO.: GY-26
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Sensor Module
- Tag: Electronic Compass Module , GY-26
- Creation Time: 2024-05-10

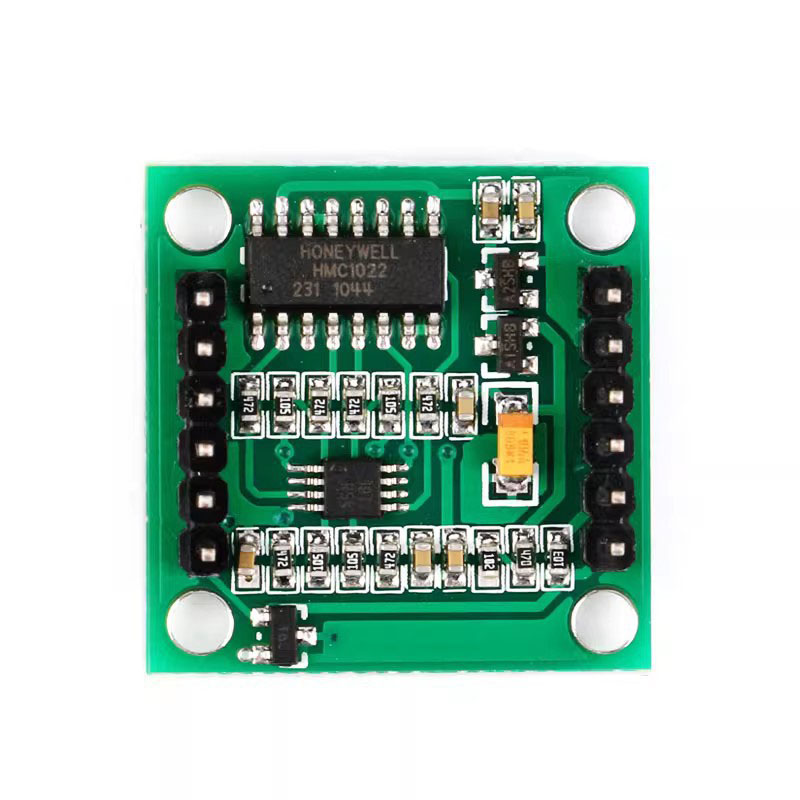

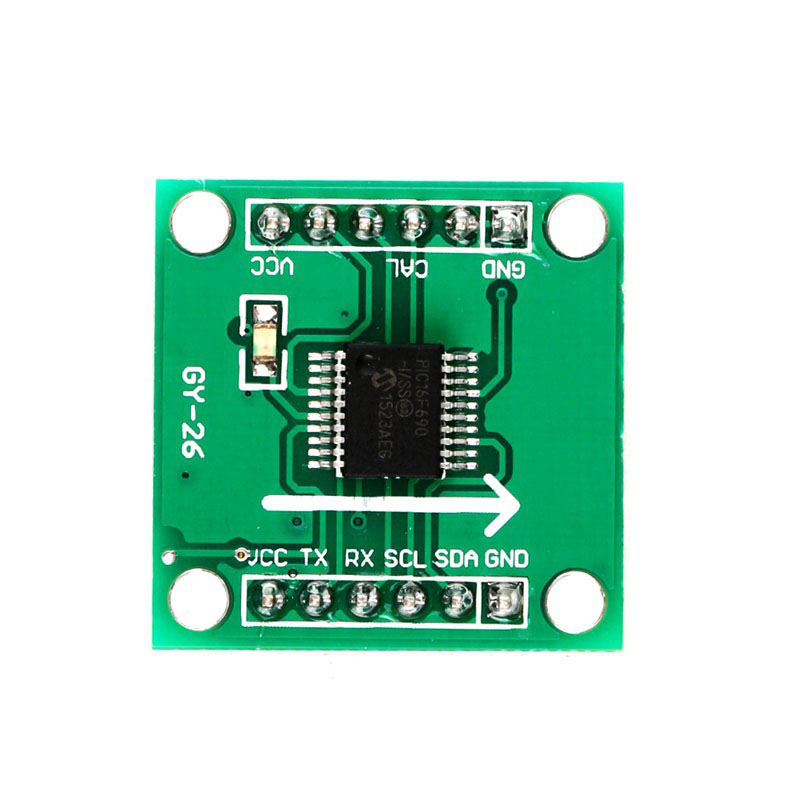

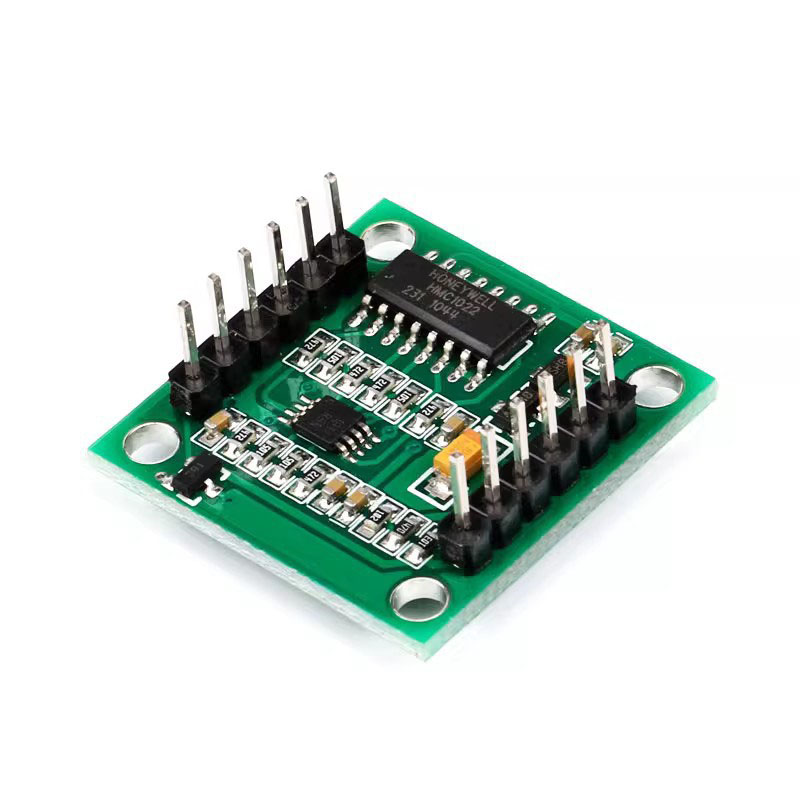

GY-26 Electronic Compass Module
Product Overview:
GY-26 is a low-cost flat digital compass module. Low input voltage, low power consumption, and small size. Its working principle is to simultaneously sense the magnetic components of the Earth's magnetic field through two mutually perpendicular axes in a magnetic sensor, thereby obtaining the azimuth angle. This compass communicates with other devices using RS232 protocol and IIC protocol. This product has high precision and stability. And it has the function of recalibration, which can obtain accurate azimuth angle at any position. Its output baud rate is 9600bps, and there are two modes of continuous output and inquiry output. It has the function of magnetic deviation compensation and can adapt to different working environments.
Product Features:
(1) Small size
(2) High cost-effectiveness
(3) Serial port and IIC output format
Technical Parameters:
● Measurement range: 0 °~360 °
● Resolution: 0.1 °
● Measurement accuracy: 1 °
● Repetitive accuracy: 1 °
● Response frequency: 25 Hz
● Working voltage: 3-5 V
● Operating current: 5 V -15 mA, 3 V -8 mA
● Operating temperature: -20 °~85 °
● Storage temperature: -40 °~125 °

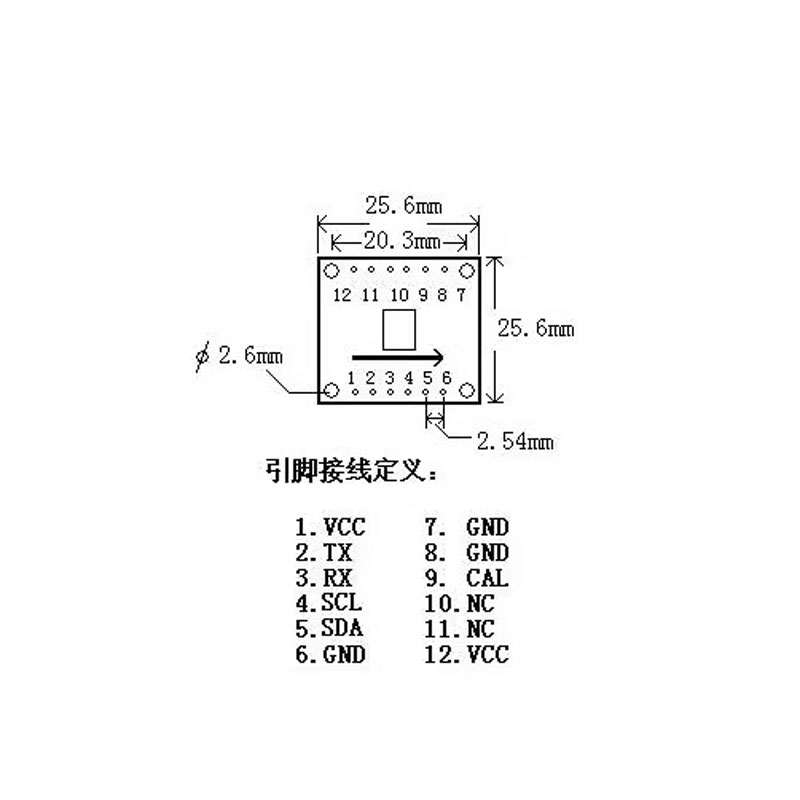

● Size: 25.6mm × 25.6mm
Product Application:
(1) Handheld instruments and meters
(2) Robot navigation and positioning
(3) Navigation system
(4) Marine autopilot
(5) Yagi antenna positioning
(6) Vehicle GPS lead
(7) Aircraft model orientation
