ADXL345 Digital Tilt Sensor Acceleration Module IIC/SPI Digital Transmission Acceleration SensorItem NO.: ADXL345 Inclination Sensor

ADXL345 Digital Tilt Sensor

Acceleration sensor

Product Overview:

The ADXL345 is a small and thin 3-axis accelerometer with ultra-low power consumption, high resolution (13 bits), and measurement range of+- 16g. The digital output is in 16 bit binary complement format, which can be accessed through SPI (3-wire or 4-wire) or IIC digital interface.

The ADXL345 is very suitable for mobile device applications. It can measure static gravity acceleration in tilt detection applications, as well as dynamic acceleration caused by motion or impact. It has a high resolution (3.9mg/LSB) and can measure the inclination change of less than 1.0 º.

The device provides a variety of special detection functions. The active and inactive detection functions detect whether there is movement by comparing the acceleration on any axis with the width value set by the user. The knock detection function can detect single vibration and double vibration in any direction. The free fall detection function can detect whether the device is falling. These functions can be independently mapped to one of the two interrupt output pins.

The low power consumption mode supports intelligent power management based on motion, so as to conduct wide value sensing and motion acceleration detection with extremely low power consumption.

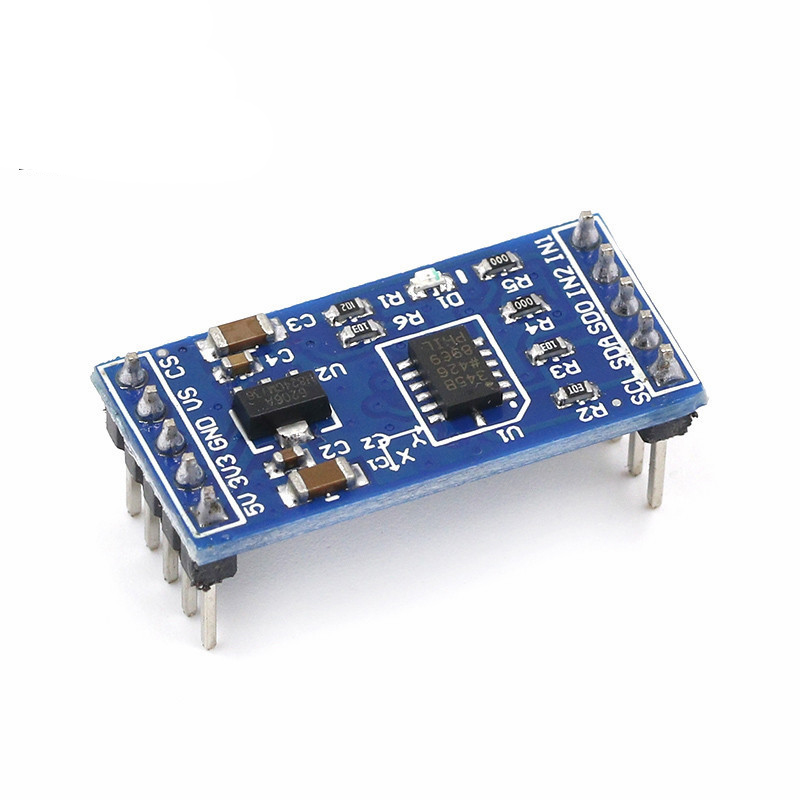

Product Features:

1. On board ADXL345 digital output (support I2C/SPI, default IIC interface), low power consumption, compact acceleration sensor;

2. Support 5V/3.3V voltage input, onboard RT9161 power supply chip, lower voltage drop than 1117, faster load response speed, very suitable for high noise power supply environment;

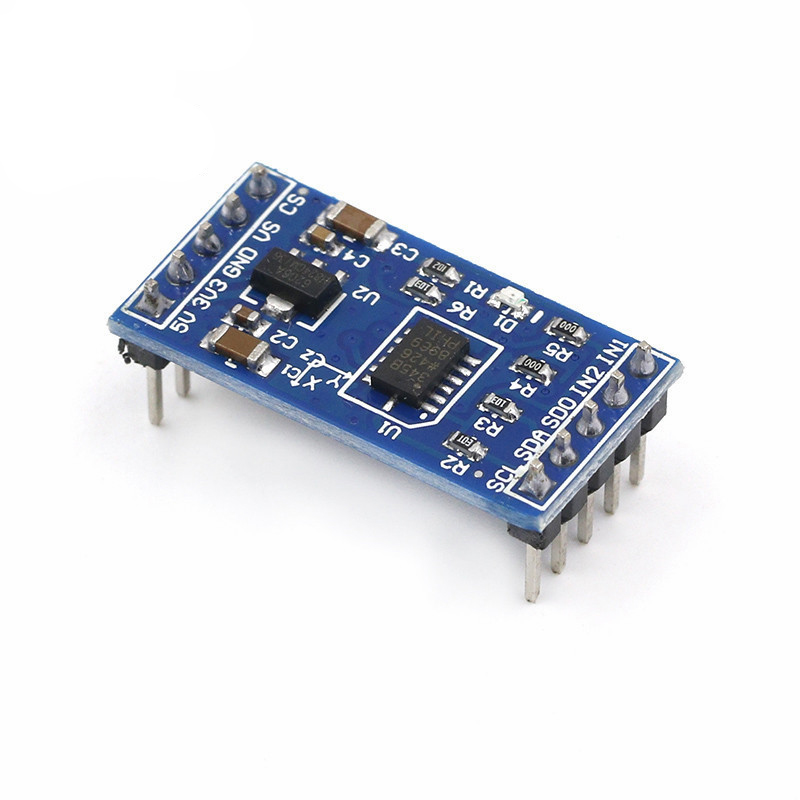

3. The commonly used pins have been led out, and the standard contact pin is 100mil (2.54mm), which is convenient for use on the dot matrix plate;

4. Center distance between two rows of needles: 24.6mm;

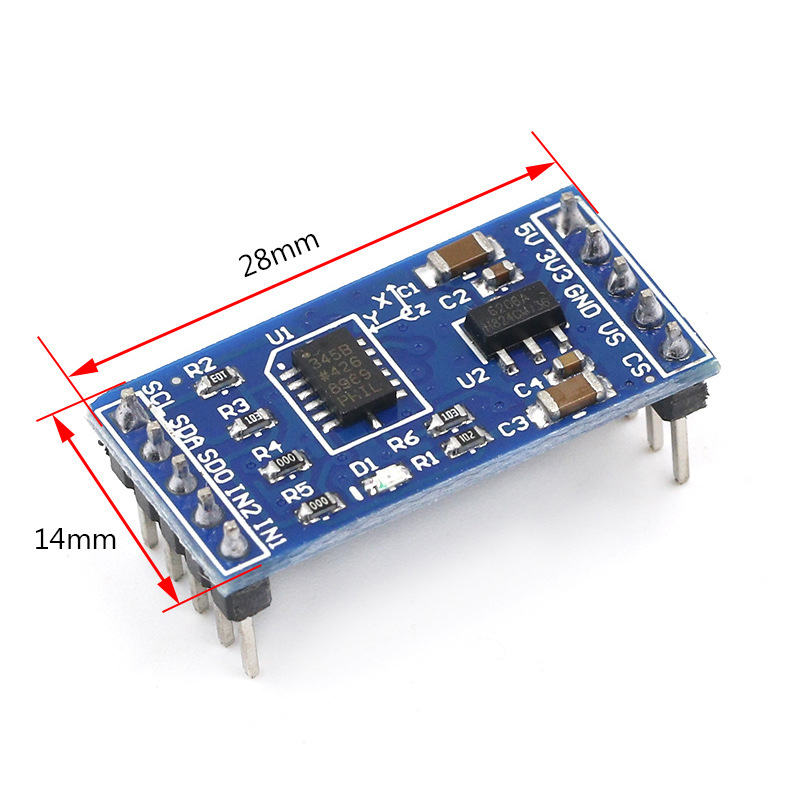

5. PCB size: 28 (mm) x14 (mm)
