1-8S 2-in-1 Battery Display BB Sound Low Voltage Alarm Electrical Display Dual Function BuzzerItem NO.: 1-8S 2 in 1

1-8S 2-in-1 Battery Display

Product Introduction:

This voltage display is used for detecting lithium-ion batteries from 1S to 8S, automatically detecting the voltage and total voltage of each cell of the lithium-ion battery. It supports reverse connection protection. It allows you to understand the working status of your battery anywhere, so that your battery will not be damaged due to over discharge or overcharging. Whether in flight or idle state, you can plug the display into the battery balance charging connector to understand the battery level.

When the voltage drops below the set value, the buzzer will sound and the red LED light will flash; The factory default setting is 3.3V. Press the button to change the voltage setting and automatically save the user's current setting.

Product Parameters:

● Voltage detection accuracy: ± 0.01V

● Total voltage display range: 0.5V~36V

● Low voltage buzzer alarm mode: 2S-8S

● Alarm low voltage setting range: OFF~2.7~3.8V

● Applicable: 1S-8S lithium battery testing

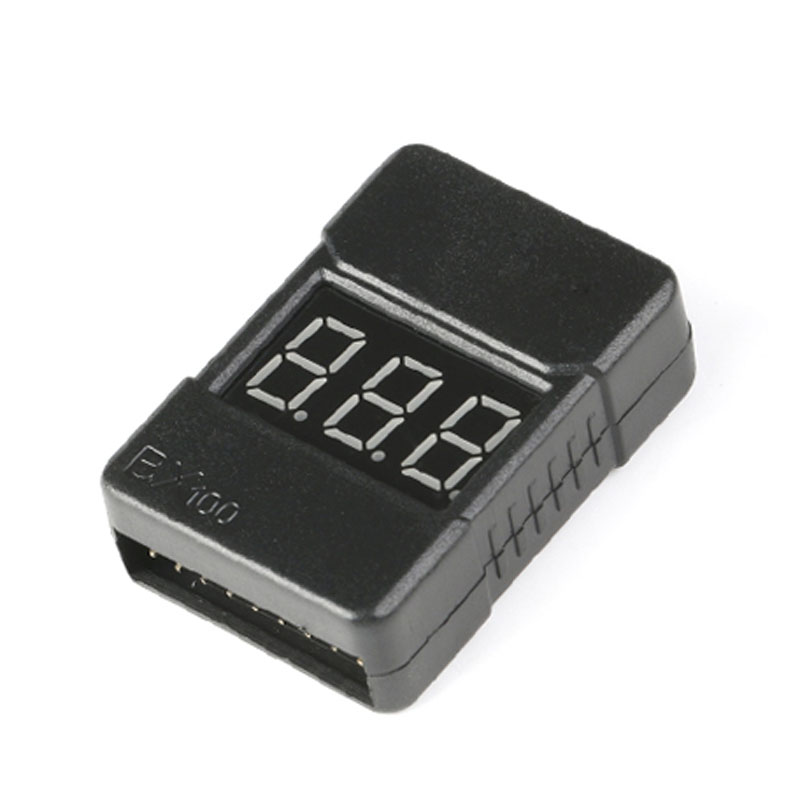

● With casing: Single section voltage display range: 0.5V~4.5V

● Bare board: Group voltage display range: 0.5V~4.5V

● Bare board: 1S test mode voltage range: 3.7V~30V

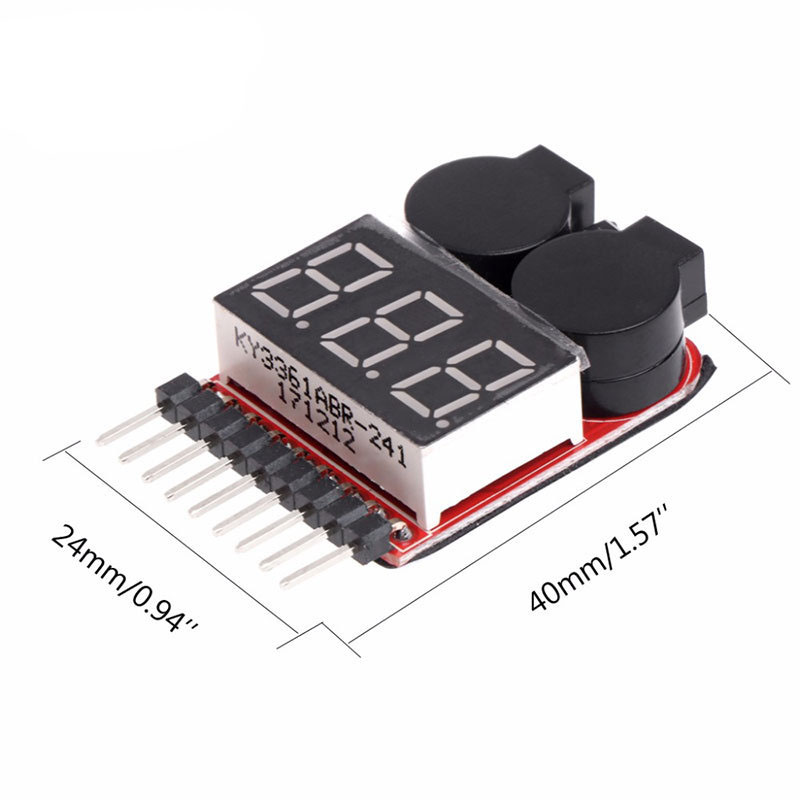

● Product size: 40mm x 25mm x 11mm

● Product weight: 9g

Operating Instructions:

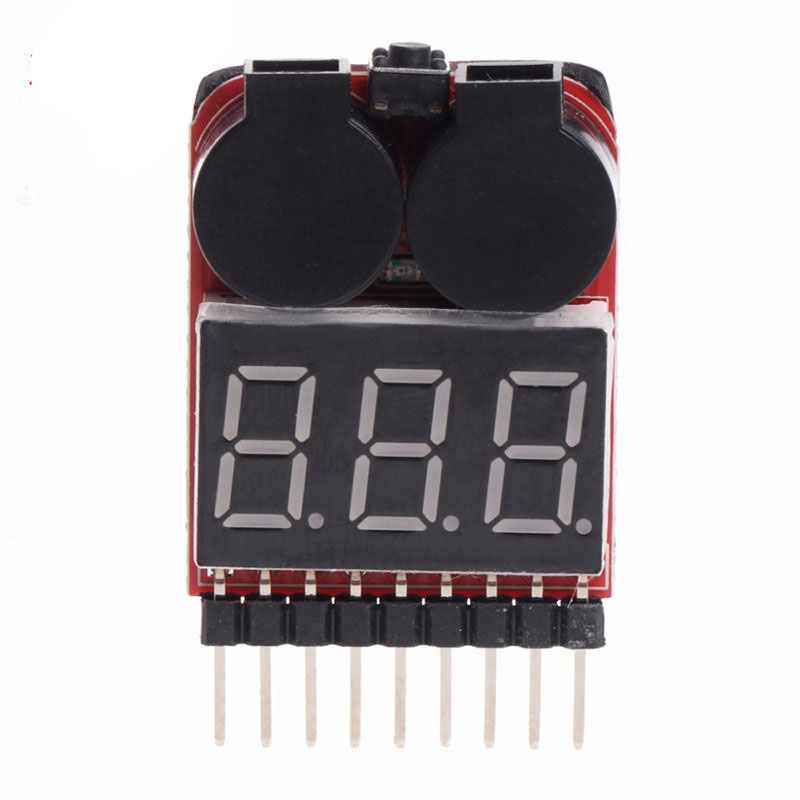

Set the voltage to the black button between the two speakers, which can adjust the voltage you want to set!

Usage:

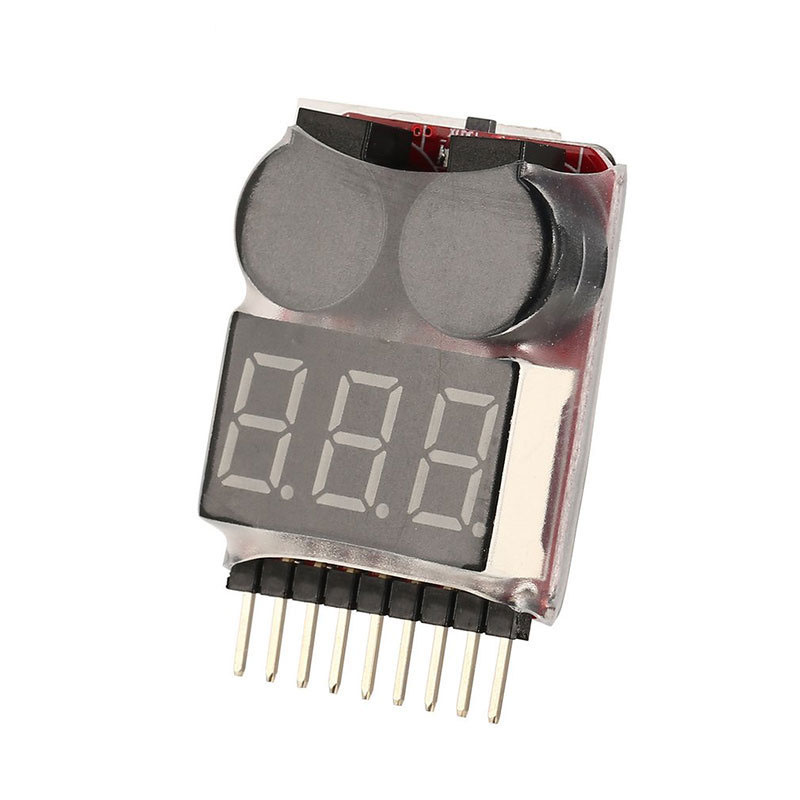

Turn the front of the electronic display (on the side of the digital display) up, with the pin facing you, and insert the white balanced charging plug of the battery along the pin on the left side of the electronic display. The electronic display will immediately sound BB twice, and the screen will display a jumping number. If there is no response, turn the balanced charging plug back and plug it in. At the other end of the electronic display, there is a small button used to set the alarm voltage of the electronic display.
