3.7V 2S/3S/4S Lithium Battery Pack Battery Level Display 6V/12V/24V Automotive Battery Indicator Light BoardItem NO.: MK01561
-
Customized Requirements
- Quantity
-
-
- Product Name: 3.7V 2S/3S/4S Lithium Battery Pack Battery Level Display 6V/12V/24V Automotive Battery Indicator Light Board
- Item NO.: MK01561
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: Lithium Battery Pack Battery Level Display , 2S/3S/4S , 6V/12V/24V , Automotive Battery Indicator Light Board
- Creation Time: 2024-04-19

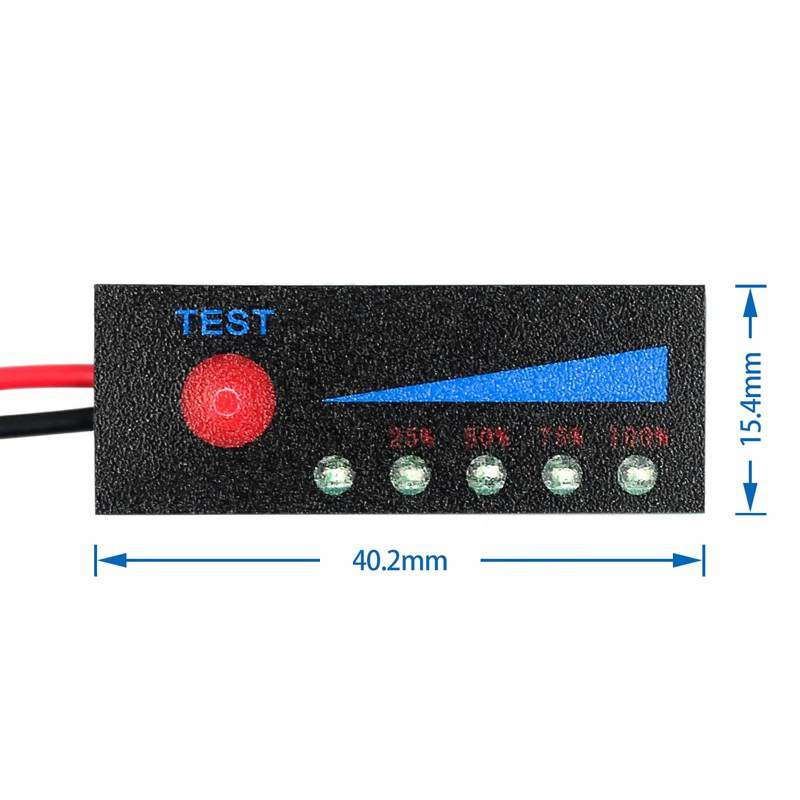

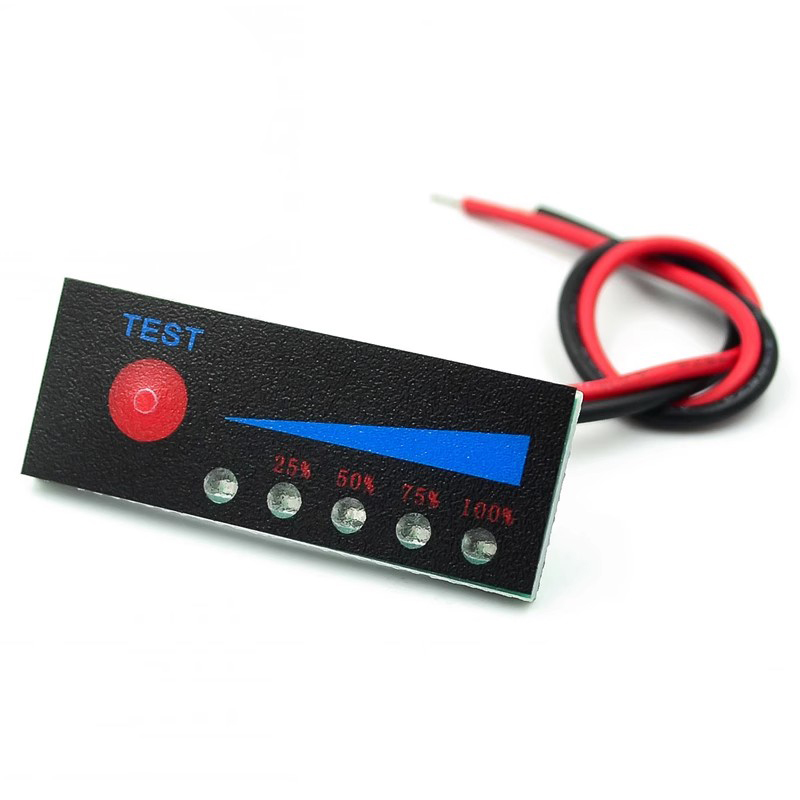

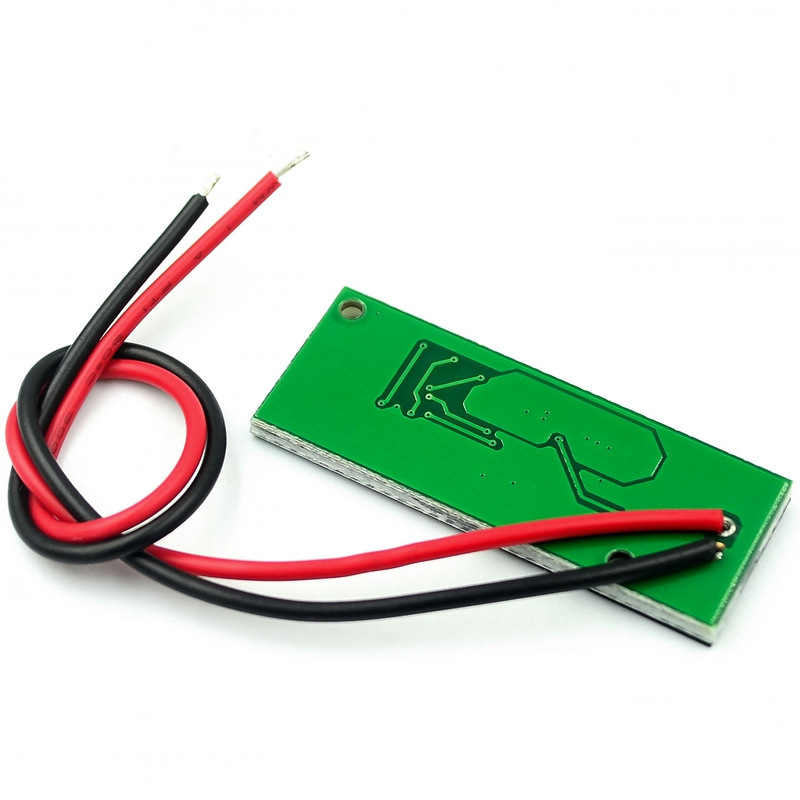

2S/3S/4S Lithium Battery Pack Battery Level Display
Product selection instructions:
1S: 1S lithium battery 3.3-4.2V
2S: 2S lithium battery 7.4V, fully charged 8.4V
3S: 3S lithium-ion battery 11.1V, fully charged 12.6V
4S: 4S lithium battery 14.8V fully charged 16.8V
6V 2S: 6V lead-acid battery 2 series lithium iron phosphate
12V 4S: 12V lead-acid battery 4 series lithium iron phosphate
24V 8S: 24V lead-acid battery 8 series lithium iron phosphate
Usage:
1. Connect the positive and negative terminals of the display board to the positive and negative terminals of the tested battery, gently press the red button with your finger, and the IED light will light up to display the real-time battery level
2. Release your finger, the LED light will go out after a delay of 3-5 seconds, and it will not consume any power when stationary.
3. With reverse connection function, even if the positive and negative connections are reversed, they will not burn. Just adjust them.
Lithium battery group displays battery parameters: (The following data are reference values, with a 2% error range. Do not take pictures with high requirements)
Warm sound prompt: The 3.7V lithium battery uses 1 red power indicator light and 4 green battery indicator lights (for other voltage ranges, 1 red power indicator light and 4 blue battery indicator lights)
(Note: N represents the number of battery cells)
The power indicator lights are red
Battery voltage greater than N × 3.3V, bright second blue
Battery voltage greater than N × 3.5V, third blue on
Battery voltage greater than N × 3.7V, 4th blue on
Battery voltage greater than N × 3.9V, bright 5th blue
12V lead-acid voltage range: (4 series of lithium iron phosphate batteries can be used)
The power indicator lights are red
The battery voltage is greater than 11.0V, and the second blue light is on
The battery voltage is greater than 11.3V, and the third blue light is on
The battery voltage is greater than 11.6V, and the fourth blue light is on
The battery voltage is greater than 12.9V, and the fifth blue light is on
