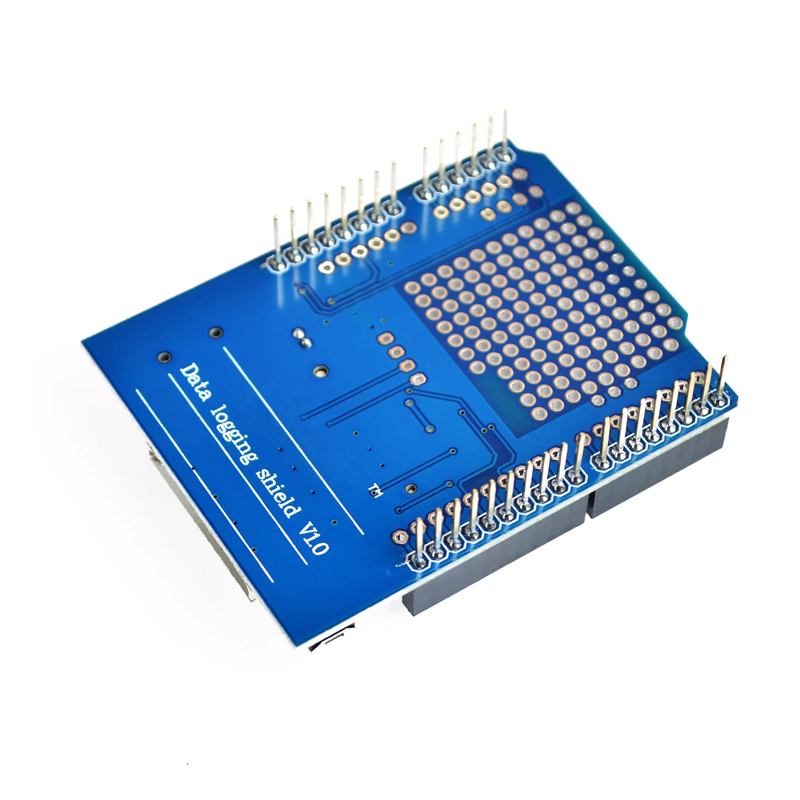

XD-05 Data Logger Data Logging Shield without Power Blue Board Data Acquisition Module Compatible with Arduino UNOItem NO.: data logger

XD-05 Data Logger

Product Information:

This is a convenient rduino mask: many of us are looking for specialized and well-designed data record masks. We strive to design a cheap but mature design. It is not only easy to assemble and adapt, but also comes with a large number of documents and databases.

You can quickly save file data in any FAT16 or FAT32 format SD card, and you can read any drawing, spreadsheet, or analysis program. We even have an example of how to use two free software programs to draw your data tutorial, which includes a real-time clock that contains the current timestamp of all data, so you know exactly when it happened!

Please note that this project does not come with rduino (you will need to use masking) or SD card. However, it has an RTC battery. Now, geological fire requires welding and testing of all components, but no heads have been installed. You need some basic welding skills to assemble it, but even if you don't have much experience, you can complete the SD card interface with FAT16 or FAT32 format cards in 15 minutes.

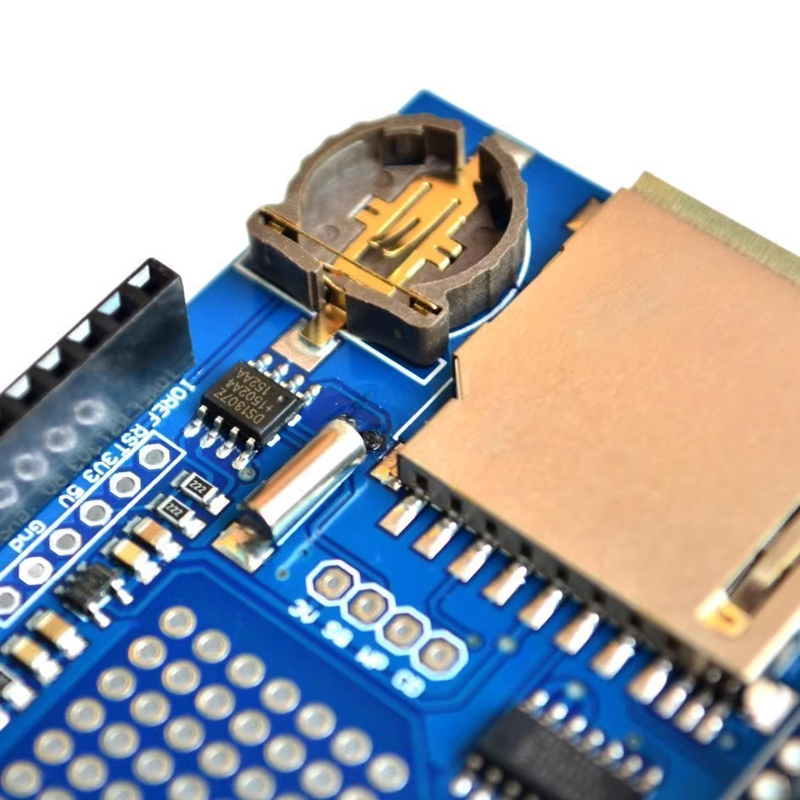

The 3.3V level converter circuit can prevent damage to your SD card, and the Real Time Clock (RTC) can maintain time even when one RDUINO is unplugged. The backup battery has been in use for many years, including SD cards and RTC libraries, as well as sample code, which means you can quickly obtain solder joints, circuit or sensor prototype areas.

The built-in 3.3V voltage regulator is a reliable reference voltage and reliable operation, requiring a large amount of power to run the SD card. It is compatible with rdino UNO, Duemilanove, Diecimila, Leonardo or ADK/Mega R3 or higher versions. ADK/MEGA R2 or earlier versions are not supported.
