The Multi-Functional Extension Board Basic Learning Kit Is Suitable For Uno R3Item NO.: MK00190

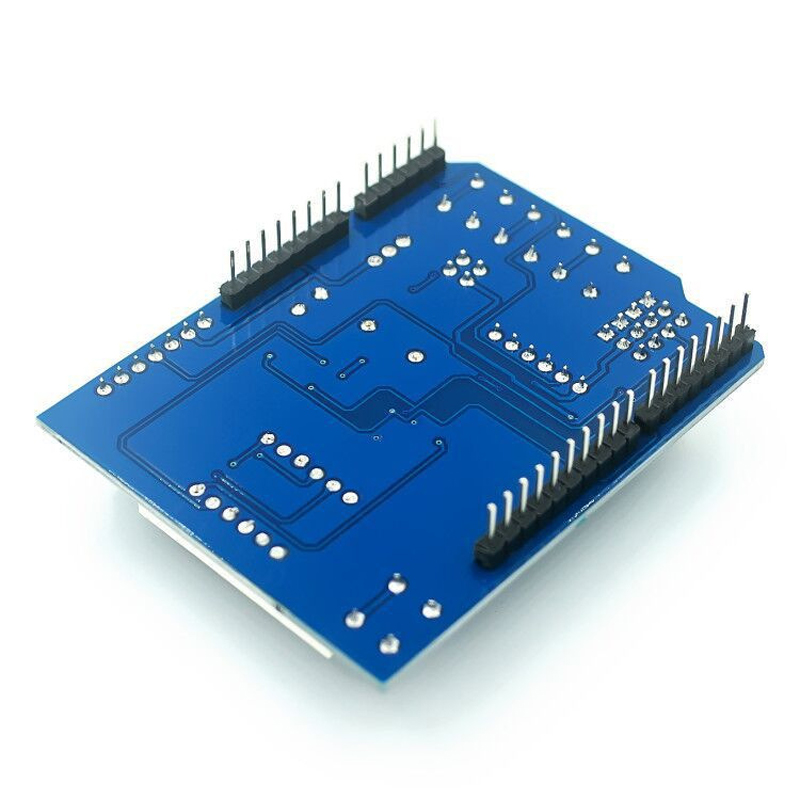

Multifunctional Expansion Board

Product Information:

Are you worried about a bunch of DuPont wires, wires, breadboards, resistors, and other miscellaneous items while conducting experiments!

In 2013, Xiamen Yingchuang Electronics launched a Multi function Shield. multifunctional expansion board to address these issues!

It is a Simple I/O platform based on open source code and has a development environment similar to Java and C languages. Enable you to quickly use language and software such as Flash or Processing to create interactive works. Developed electronic components such as switches or sensors or other controllers, LEDs, stepper motors, or other output devices can be used. It can also operate independently and become a platform for communicating with software, such as Flash Processing Max/MSP VVVVV or other interactive software... The development of the IDE interface is based on open source principles, allowing you to download and develop more amazing interactive works for free.

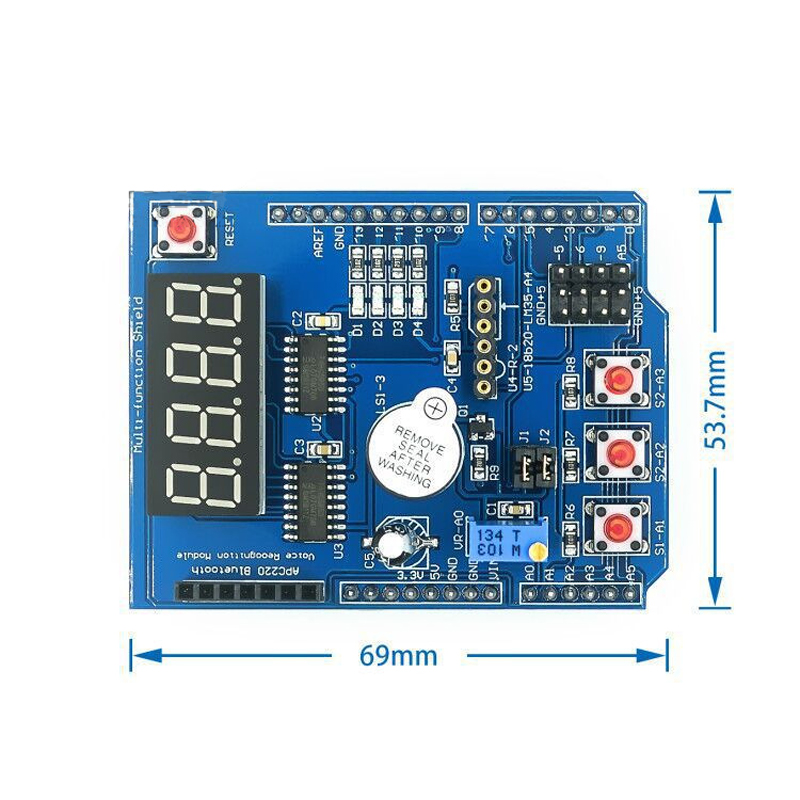

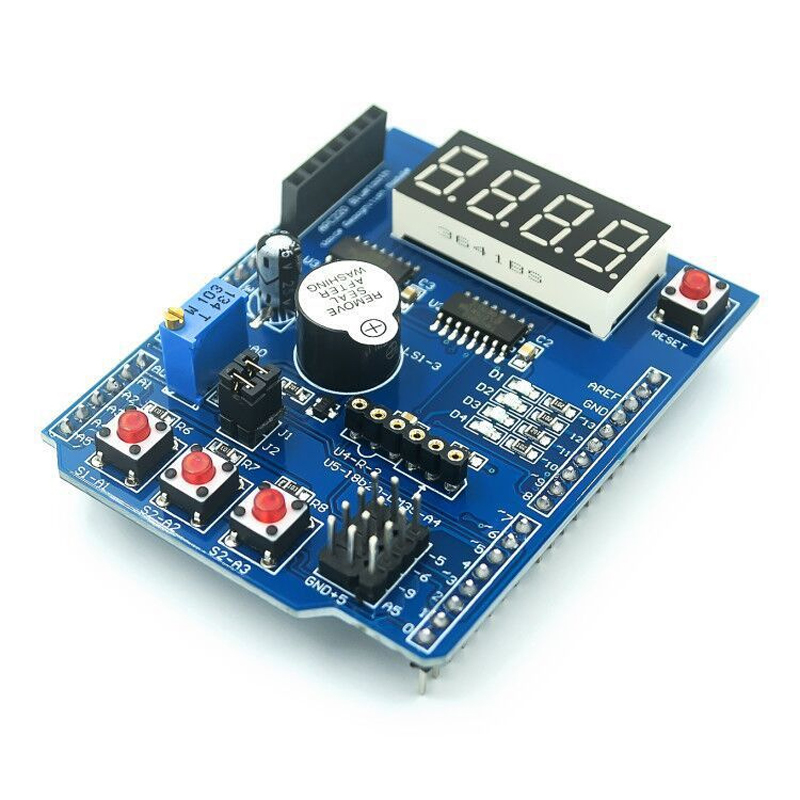

The Arduino Multi Function Shield Has The Following Characteristics:

1. Seamless integration with mainstream controllers such as the 2009 UNO LENARDO 2560 on the market

2. 4-way LED indicator lights (it is important to know the importance of LED indicator lights. In practical engineering, with this indicator light, you can directly use the indicator light to indicate the working status of the program, making it convenient for program debugging.).

3. The DS18B20 temperature sensor interface can be used for temperature measurement experiments, and this price does not include DS18B20. If necessary, it will be sold separately.

4. The LM35 temperature sensor interface can be used for temperature measurement experiments, and this price does not include LM35. If necessary, it will be sold separately.

5. 3296 precision adjustable potentiometer, providing analog input (can be used to control LED brightness, rotate servo angle, digital voltage, etc.)

6. The infrared integrated receiver head can be suitable for any infrared remote control experiment, and this price does not include the integrated receiver head. If necessary, it will be sold separately.

7. Four digit digital tube (using 74HC595 driver to save IO learning SPI), can be used for digital tube display experiments (can display temperature, voltage, count values, etc.).

8. Three independent buttons, one reset button, can be used for button experiments (human-machine interface).

9. The buzzer can be used for sounding experiments. (Can alarm, pronunciation, etc.)

10. Bluetooth, wireless interface, voice module, speech recognition module, can be used for wireless communication experiments

11. Steering gear interface, convenient for driving the steering gear

12. Infrared detection interface, convenient for docking with infrared, achieving pedestrian traffic statistics, etc

Shipping List:

1. Multi function Shield 1 block
