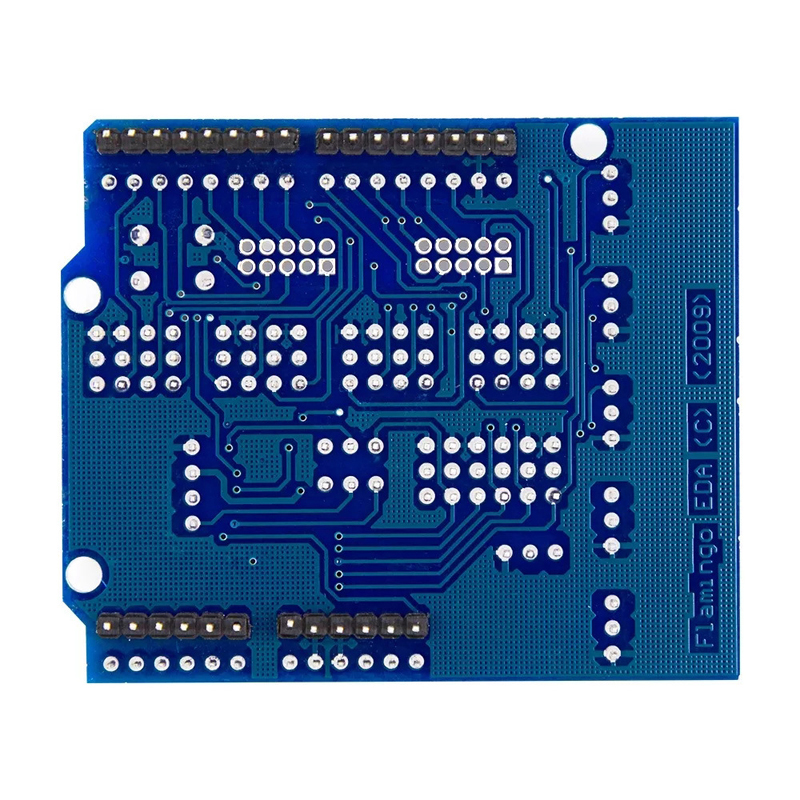

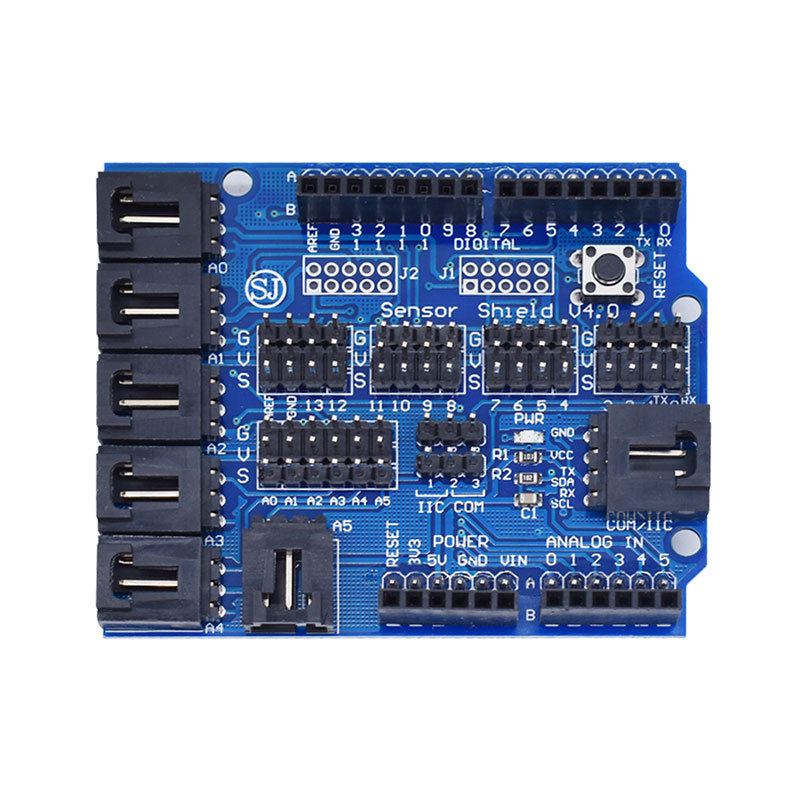

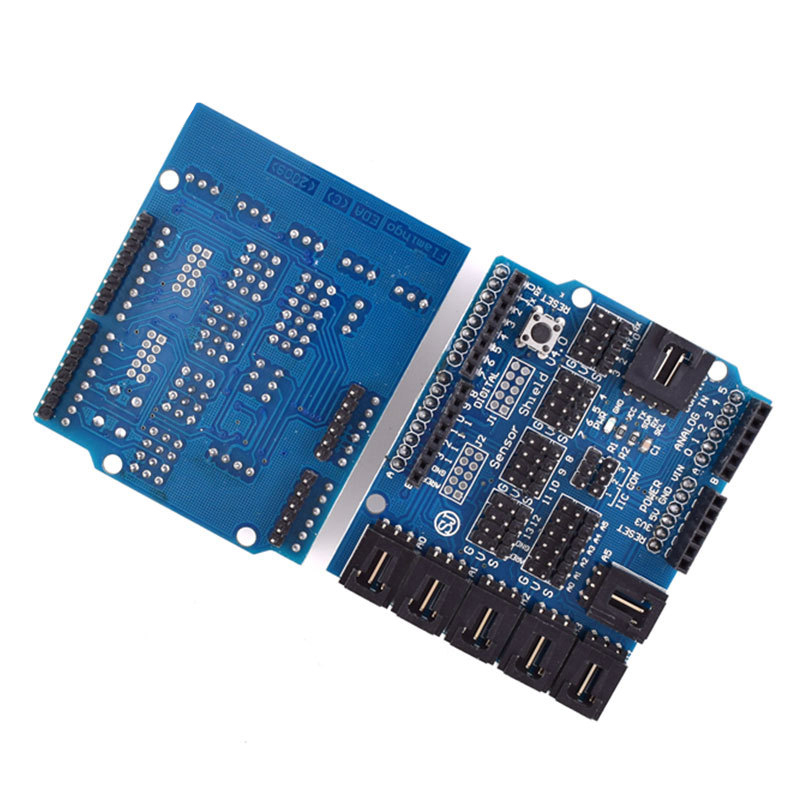

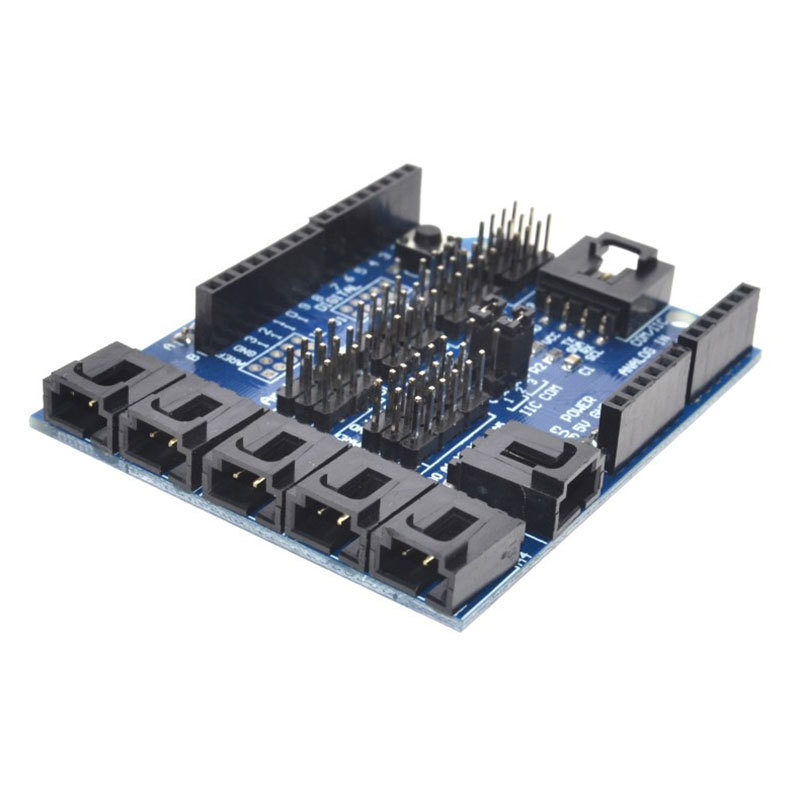

  • V4.0 Sensor Expansion Board



    Product Information:



    When using Arduino to create various interactive works, commonly used sensors or circuit modules are often used. For those familiar with electronic circuits, it is possible to build some simple modular circuits using bread boards or boards, but for those who are not familiar with circuits or slightly complex circuits, it seems that it is not so suitable.



    Using this expansion board can easily connect to some commonly used analog sensors, such as light sensors. With the support of this expansion board and corresponding circuit modules, we only need to use dedicated connecting wires to connect the corresponding sensor modules to Arduino, and the circuit part is complete. Due to the specific circuit details being implemented by the corresponding sensor modules, all we need to consider is how to write corresponding programs in Arduino to read the data transmitted by these sensors.



    Each functional module has buckle ports with VCC, GND, and Output, and there are corresponding ports on the Sensor Shield. A simple 2.54mm double bus connection can be used.



    Product Parameters:



    ● Operating voltage: 5VDC.

    ● Input voltage (recommended): 7-12VDC.

    ● Input voltage (limit): 6-20VDC.

    ● Buckle analog port: Convenient and fixed connection to 6 analog inputs with VCC/GND.

    ● Digital IO ports: 13 ports ready to accept digital modules or servo motors.

    ● Analog IO port: 2.54 grid male needle connection.

    ● Buckle communication port: selectable between I2C and UART.

    ● Size: 70 x 58mm
