XH-M131 Photosensitive Relay Module
Product Information:

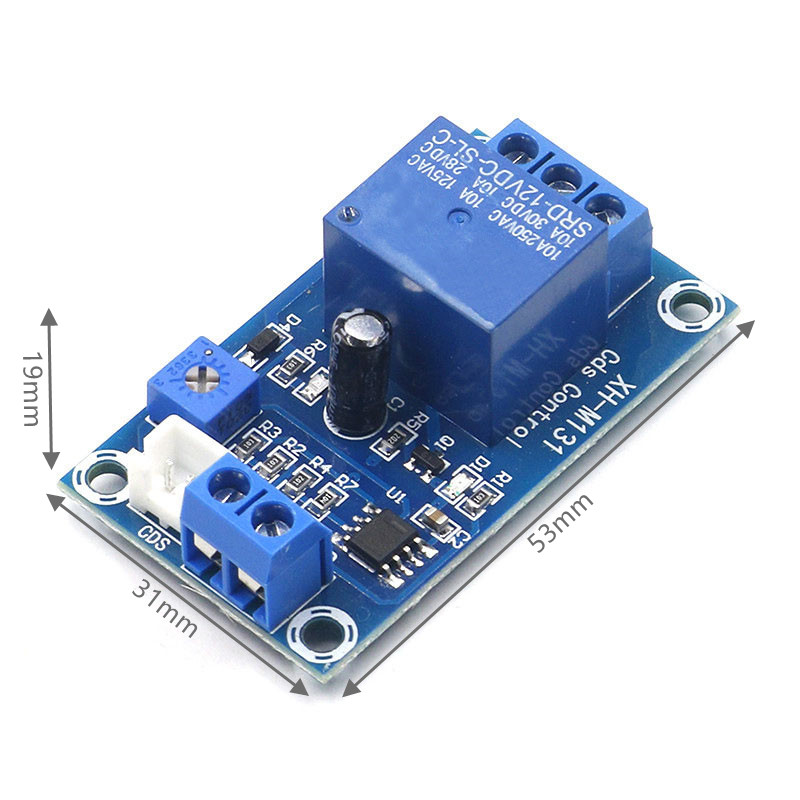

Module size: 53 * 31 * 19mm

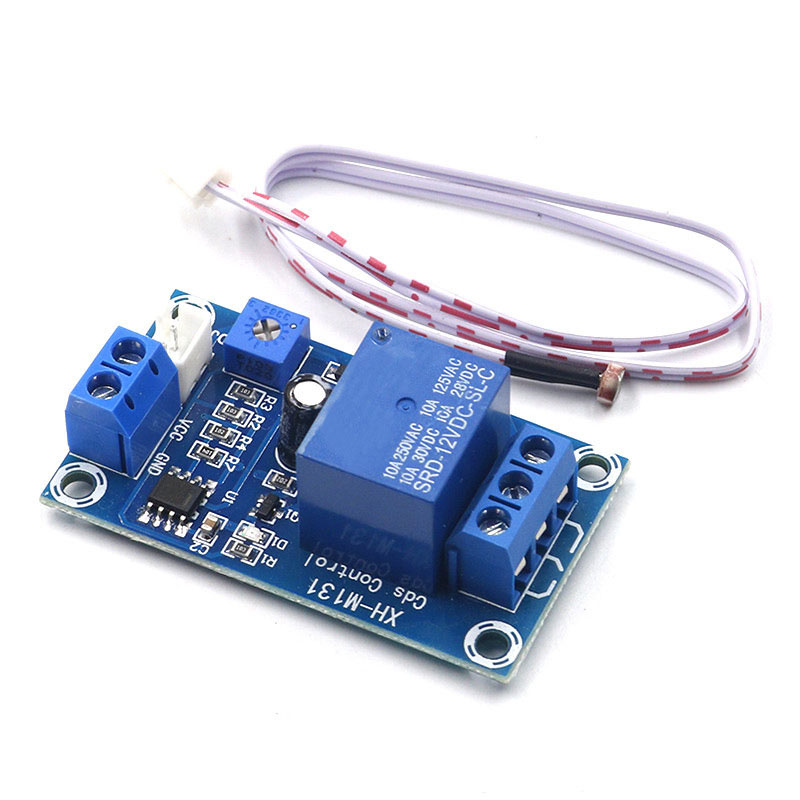

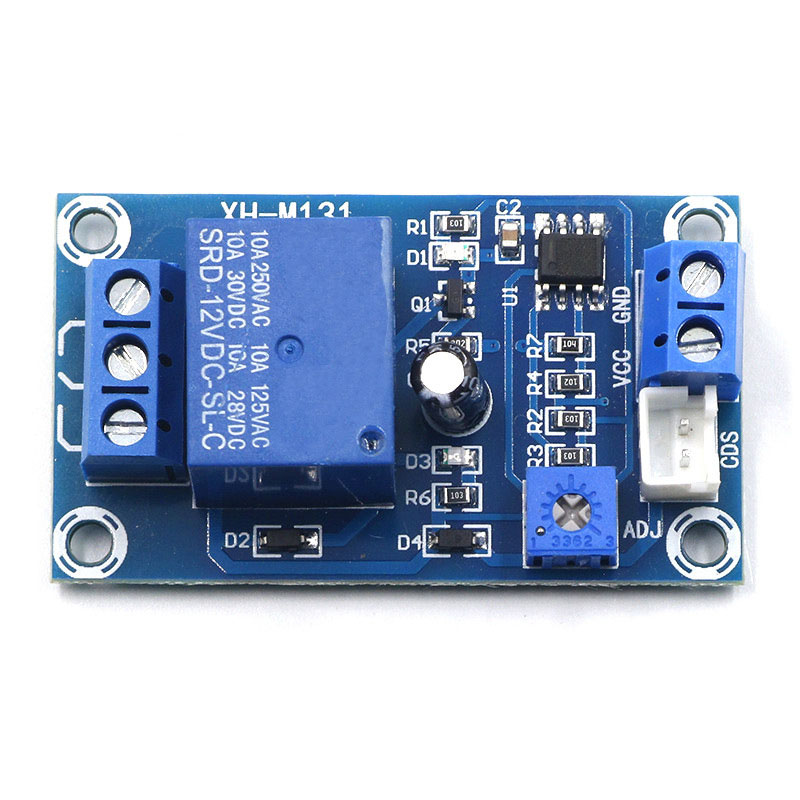

The module can be used for light detection and brightness detection, with power indicator light (red) and relay pull-in indicator light (blue), and has four M3 screw mounting holes, which greatly facilitates the installation. The board can adjust the sensitivity through potentiometer, with its own relay, which can be used as a variety of brightness detection control switches. It can be used for street lights, for example, automatically turn on at night and automatically turn off during the day, And other equipment requiring automation.
Board Parameters:
1. The module adopts 12V power supply with anti-reverse connection function, and the reverse connection power supply will not damage the module;
2. Load capacity of normally open interface: AC 0V-125V/20A, DC 0V-14V/20A; The output end of the module has three ports: common end (COM), normally open (CK) and normally closed (CB). The three ports are equivalent to a dual-control switch. When the relay coil is powered on, the common end is connected with the normally open end, and when there is no power, the common end is connected with the normally closed end; The COM end is generally connected to the negative pole of the power supply through the load, and the normal end is connected to the positive pole of the power supply
