XH-M403 Digital Current Voltage Regulator Module XL4016 High Power 8A DC Voltage Regulator Board 12V24VItem NO.: XH-M403
-
Customized Requirements
- Quantity
-
-
- Product Name: XH-M403 Digital Current Voltage Regulator Module XL4016 High Power 8A DC Voltage Regulator Board 12V24V
- Item NO.: XH-M403
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 8A , 12V24V , XH-M403 , Digital Current Voltage Regulator Module , XL4016 , DC Voltage Regulator Board
- Creation Time: 2024-05-27

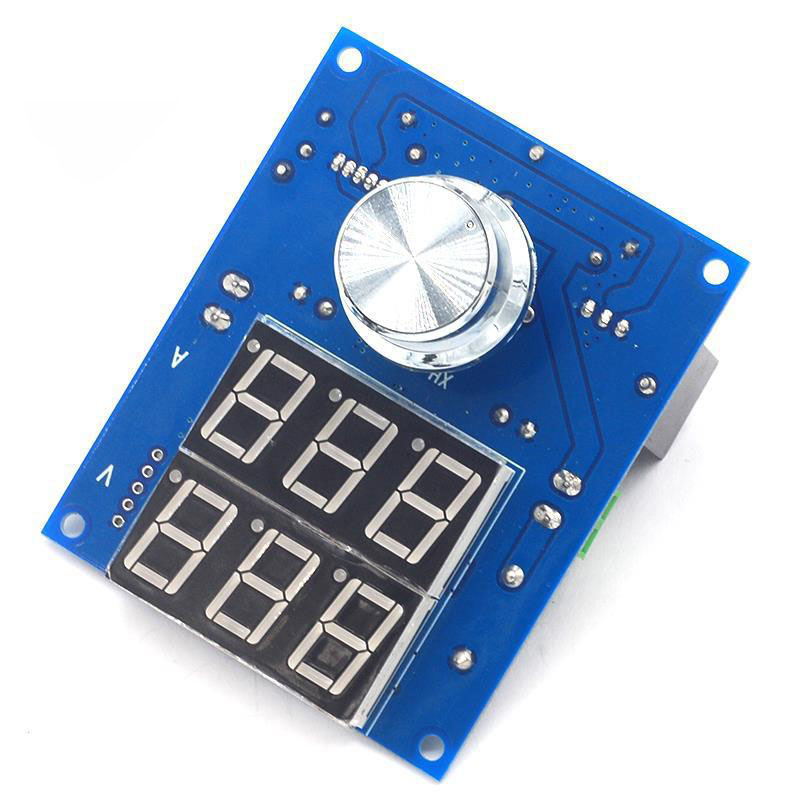

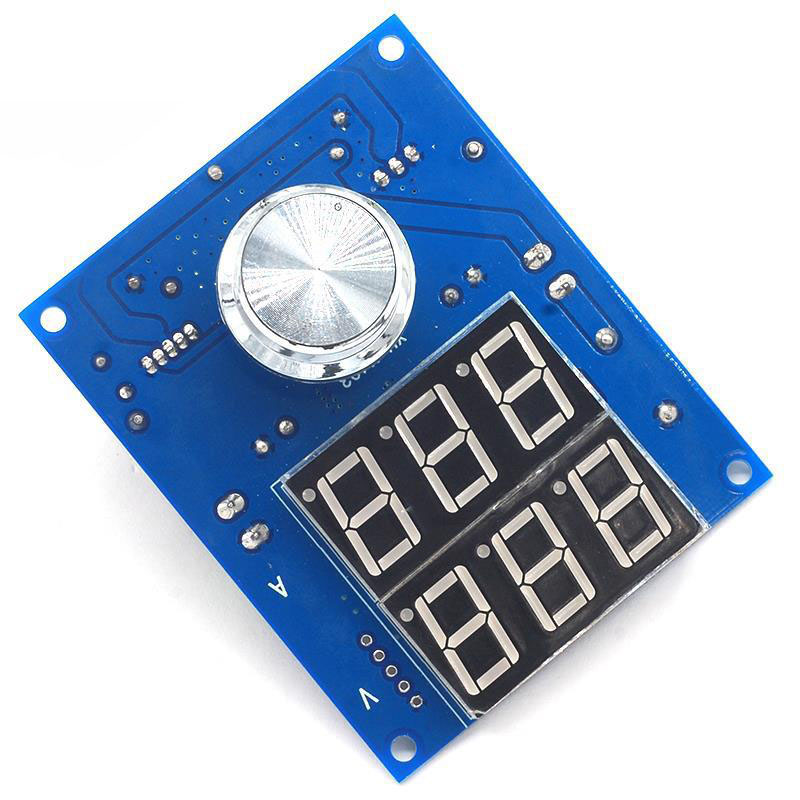

XH-M403 Digital Current Voltage Regulator Module
Product Introduction:
The module adopts XL4016 switching voltage regulator chip, cooperates with MBR10200 double rectifier, and adds a load protection circuit in the circuit to protect the load. It is a rare and versatile DC voltage stabilizer board. The maximum instantaneous output current can reach 8A, and a fan needs to be added for heat dissipation. It is recommended to be within 5A for long-term work.
Product Parameters:
● Product Name: Digital DC Voltage Regulator
● Product Model: XH-M403
● Voltage regulation mode: PWM modulation
● Input voltage: DC 5V~36V
● Output voltage: DC 13~32V
● Maximum current: 8A (recommended within 5A for a long time)
● Maximum power: 200W
● Conversion efficiency: 94%
● Switching frequency: 180KHz
● Appearance size: 78*63*40mm
● Other functions: real-time current display
