XH-M510 TDA7498 High-Power Digital Power Amplifier Board 2*100W Automobile Power Amplifier DC 14-34V

color:red,size:xxl

Subtotal: US$ 0

View My Cart

Checkout

Detail

- Product Name: XH-M510 TDA7498 High-Power Digital Power Amplifier Board 2*100W Automobile Power Amplifier DC 14-34V
- Item NO.: XH-M510
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Audio Amplifier
- Tag: High-power , Digital Power Amplifier Board , XH-M510 , TDA7498 , 2*100W , Automobile Power Amplifier , DC 14-34V
- Creation Time: 2024-03-27

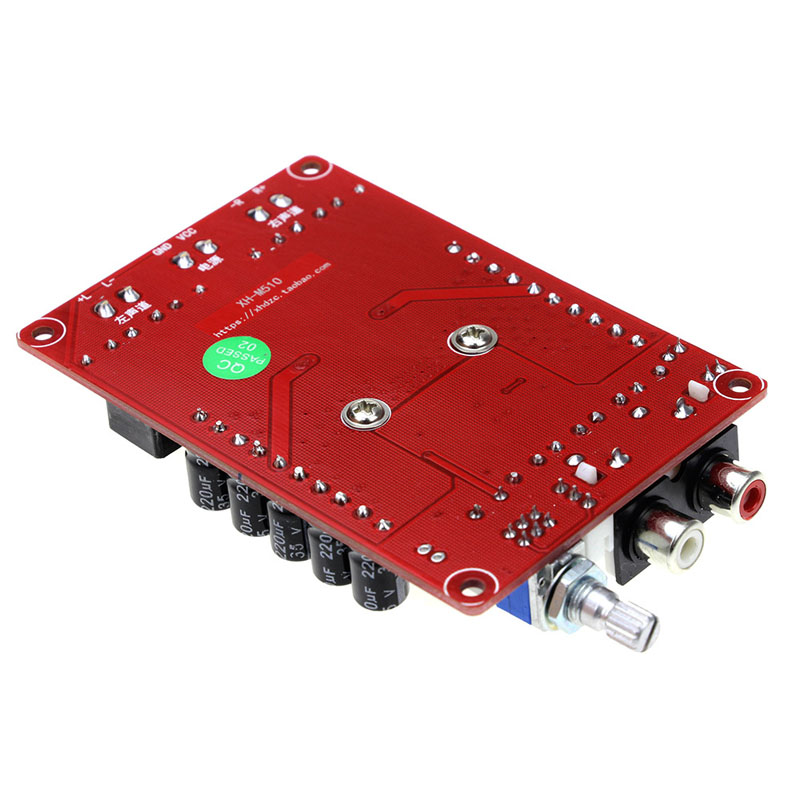

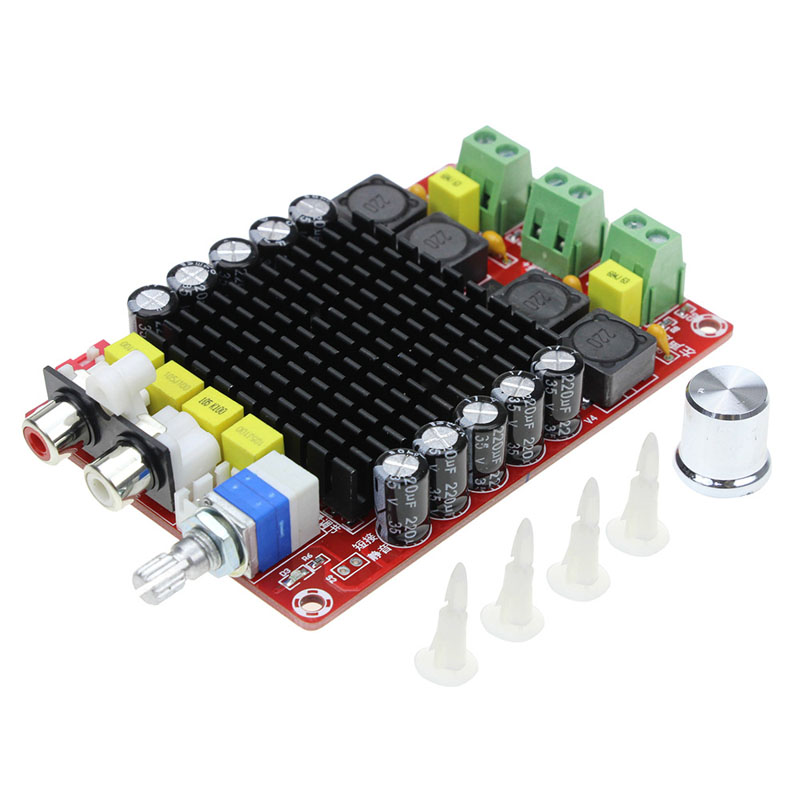

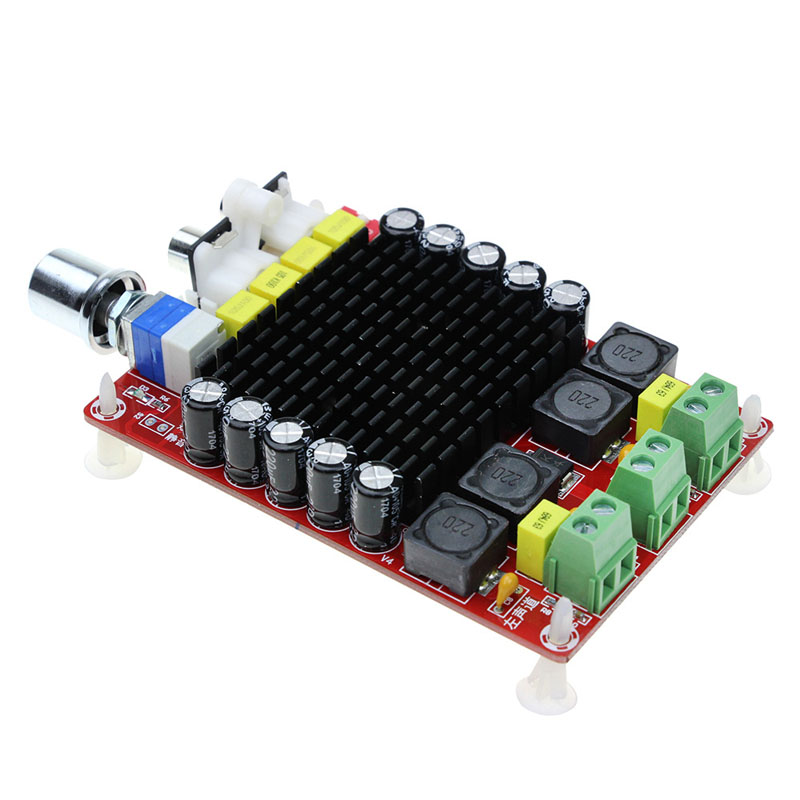

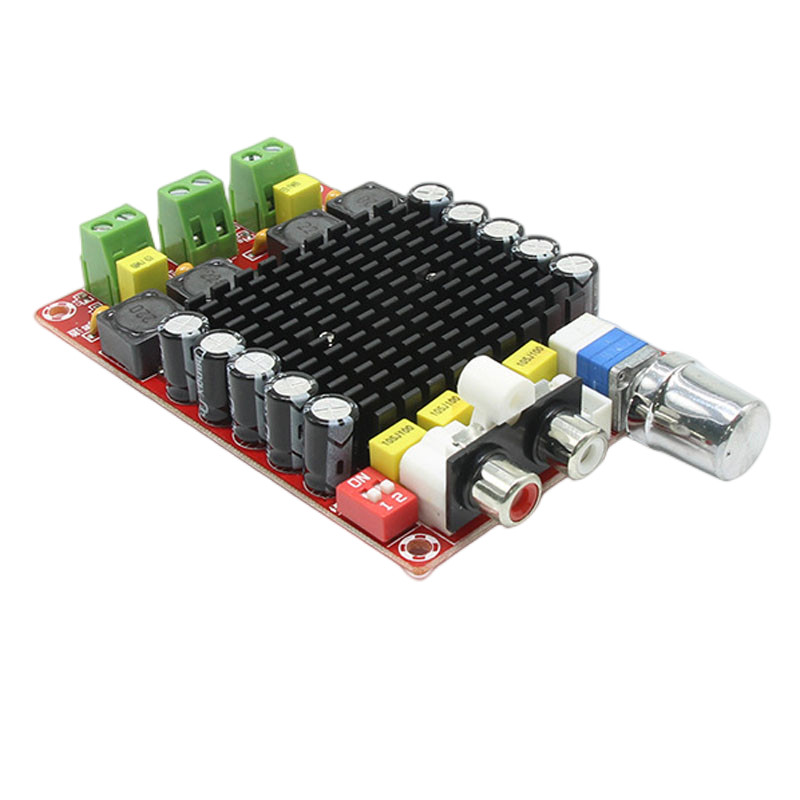

XH-M510 TDA7498 Digital Power Amplifier Board

Product Introduction:

TDA7498 is a 100W+100W Class D audio amplifier. The IC chip is powered by a single power supply and is mainly used in home theaters and active speakers. In addition, TDA7498 adopts the EPU super-threaded package with the exposed heat dissipation soldering plate facing upwards, which is superior to similar amplifiers in terms of sound quality and performance

Product Parameters:

● Name: audio amplification board

● Product model: XH-M510

● Input voltage: DC14-34V

● Output power: 100W * 2

● Output impedance: 4-8 Ω

● Line type: Class D

● Chip selection: TDA7498

● Harmonic distortion: Po=1W/0.05%

● Frequency response range: 18-100KHz

● Switching frequency: 360KHz

● Signal-to-noise ratio: 110db

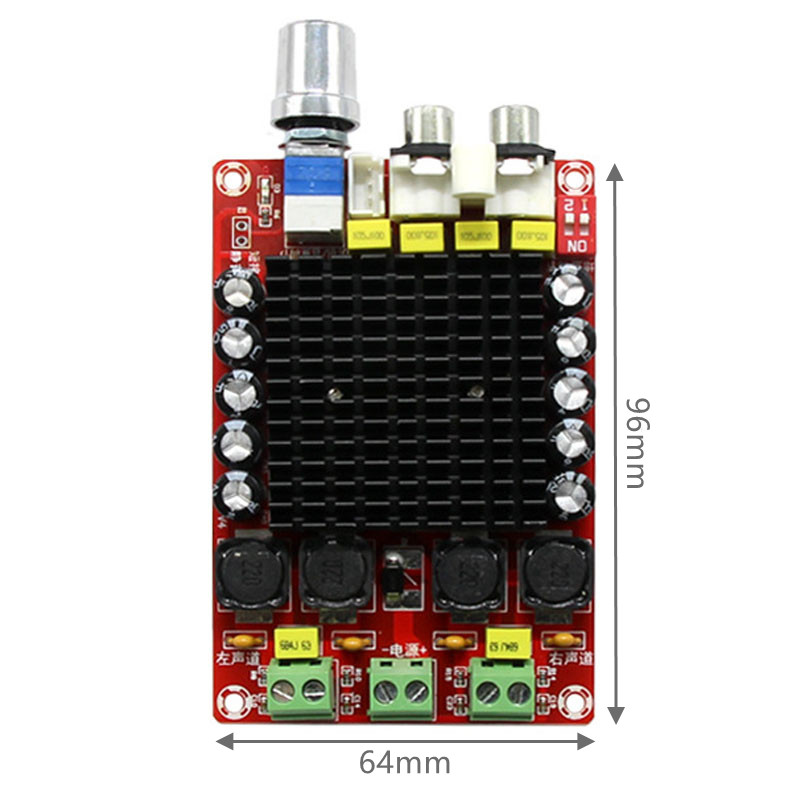

● Appearance size: 96 * 64 * 25mm

Main Features:

● Output power 100W+100W (VCC=32V, RL=4 Ω, THD=10%)

● Broadband (14-30V) single power supply rate（ η= 85%)

● Four-level gain is optional (12.6dB, 27.6dB, 31.1dB, 33.1dB)

● Adopt differential input to greatly reduce common-mode noise

● With off mode and mute mode

● Intelligent protection function

● With overheat protection function
