XH-M604 Battery Lithium Battery Charging Control Module Battery Charging Control Protection Switch 6-60VItem NO.: XH-M604
-
Customized Requirements
- Quantity
-
-
- Product Name: XH-M604 Battery Lithium Battery Charging Control Module Battery Charging Control Protection Switch 6-60V
- Item NO.: XH-M604
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: Battery Lithium Battery Charging Control Module , Battery Charging Control Protection Switch , XH-M604 , 6-60V
- Creation Time: 2024-04-09

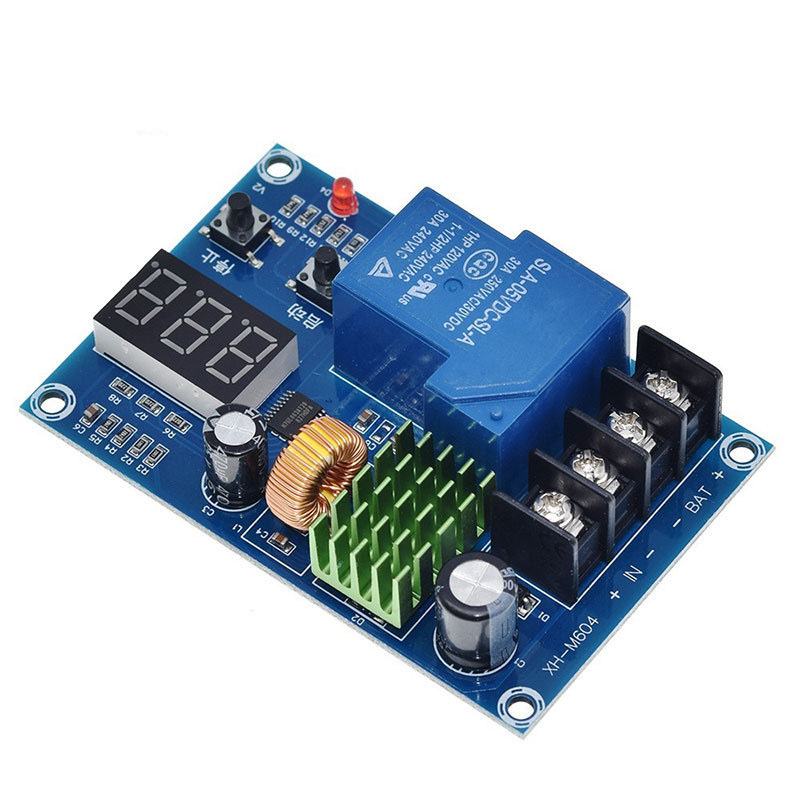

XH-M604 Battery Lithium Battery Charging Control Module
Product Description:
● Input voltage: DC 6-60V
● Display accuracy: 0.1V
● Control accuracy: 0.1V
● Output type: direct output
● Voltage tolerance: ± 0.1V
● Applicable to: 6-60V MAX 80V batteries

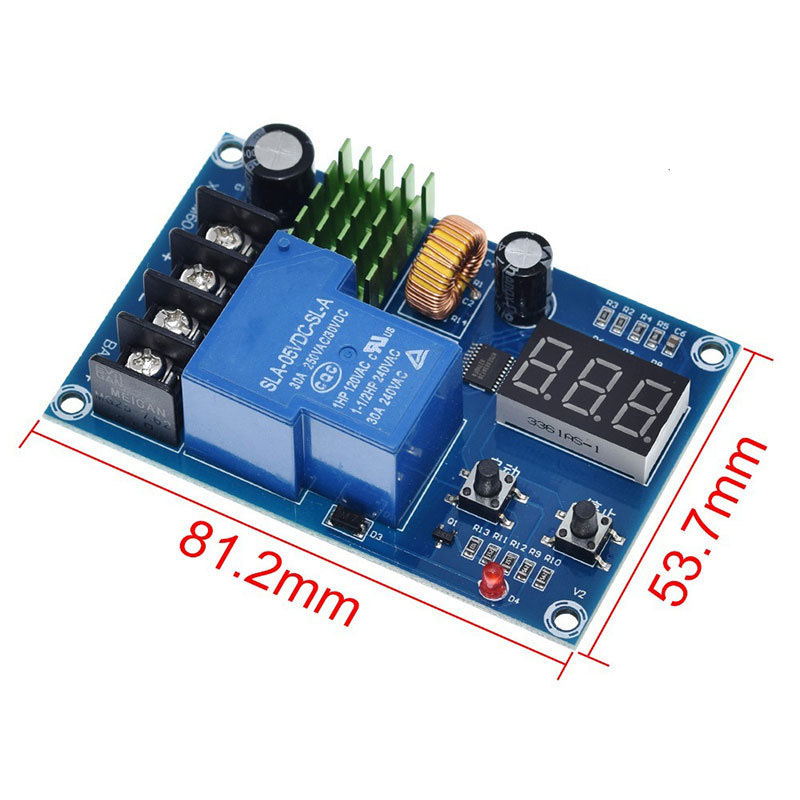

● Size: 81 * 54 * 18mm
Usage:
When setting the voltage value, the start key plays the key up, and the stop key scrolls to the next key
1. Set startup voltage:
Normal display of voltage status, press the Select Output Voltage button to start charging voltage. Long press the start button, the number flashes, and use the start and stop buttons to set the start charging voltage value.
2. Set the stop voltage:
Normal voltage normal display mode, press the stop voltage button to stop charging voltage. Long press the stop button, the number flashes, and set the stop charging voltage value through the start and stop buttons.
3. Setting error:
Press and hold the start stop button while powered on, and the digital display shows 888, which is the factory setting.
