10000W Electric Oven Thyristor High Power Electronic Digital Voltage Regulator CNC Dimming Speed ControllerItem NO.: MK02154

10000W Electric Oven Digital Voltage Regulator

Product Features:

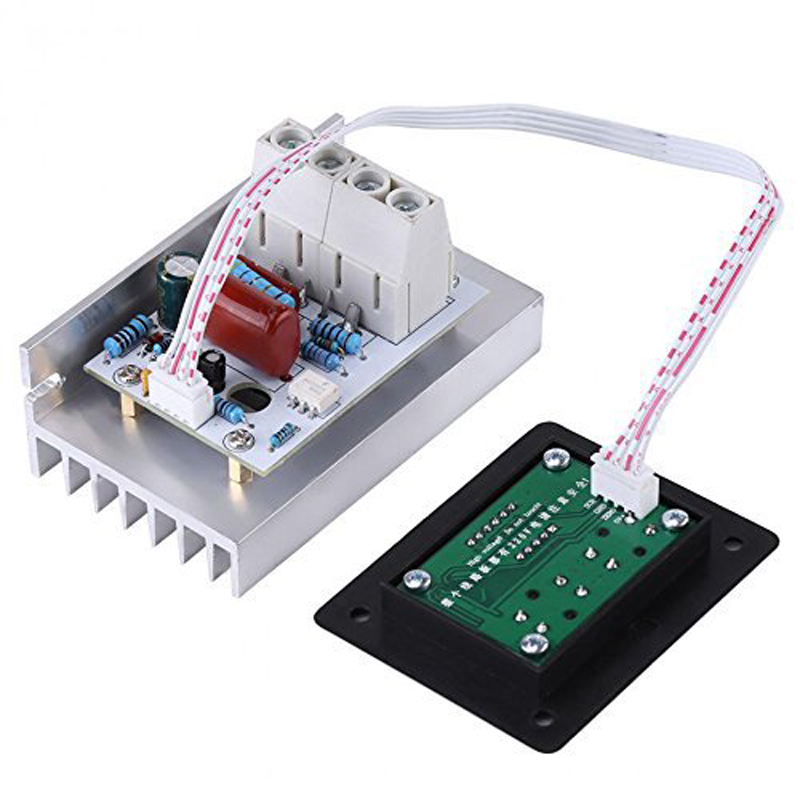

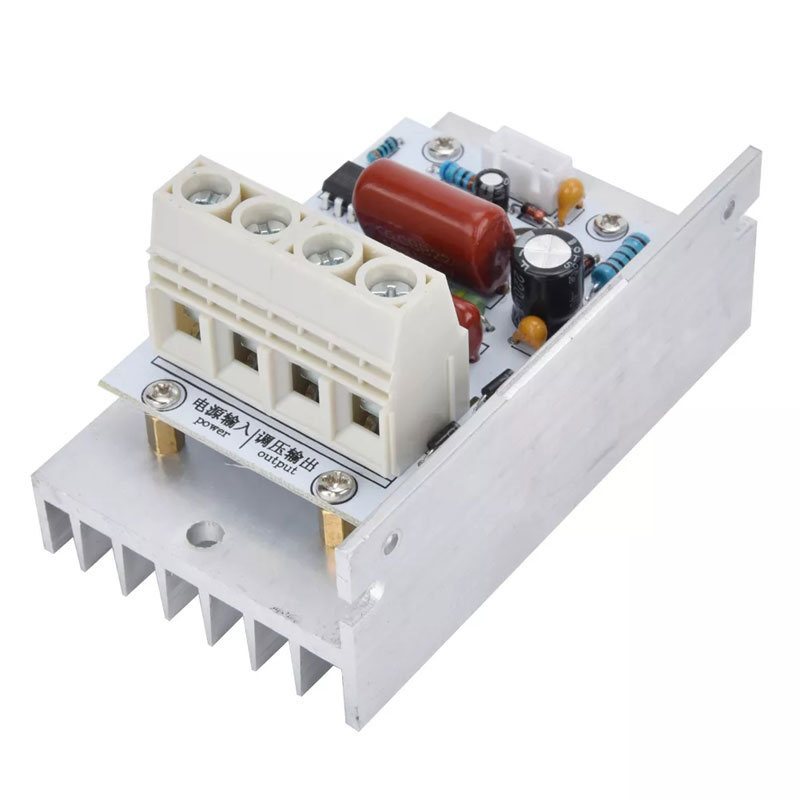

This product has a new type of bidirectional high-power thyristor rectifier, with a current of up to 80A, which effectively solves the problem of electric furnace wire overcurrent caused by low resistance during the cooling process. It can easily adjust the output voltage within the range of 0-100% (non-linear) to supply power to electrical equipment. Designed with a large and thick radiator, it can enhance the heat dissipation effect. The voltage regulator is adjusted by a button, which is much more stable than the Potentiometer. The voltage regulator has a wave voltage absorption circuit, which effectively protects high-power thyristor rectifiers, has a longer service life and is more durable. It can be used as a power supply for large electrical equipment less than 10000W, sufficient for household appliances or small factories. It can be widely used as a thermal controller for electric furnaces, water heaters, dimmers for lamps, speed controllers for small motors, or temperature controllers for soldering irons.

Product Specifications:

● Voltage: AC 220V

● Maximum power: 10000W (instantaneous limit power of impedance load; recommended for long-term use, 5000W or lower)

● Voltage adjustment: 0-100% (non-linear)

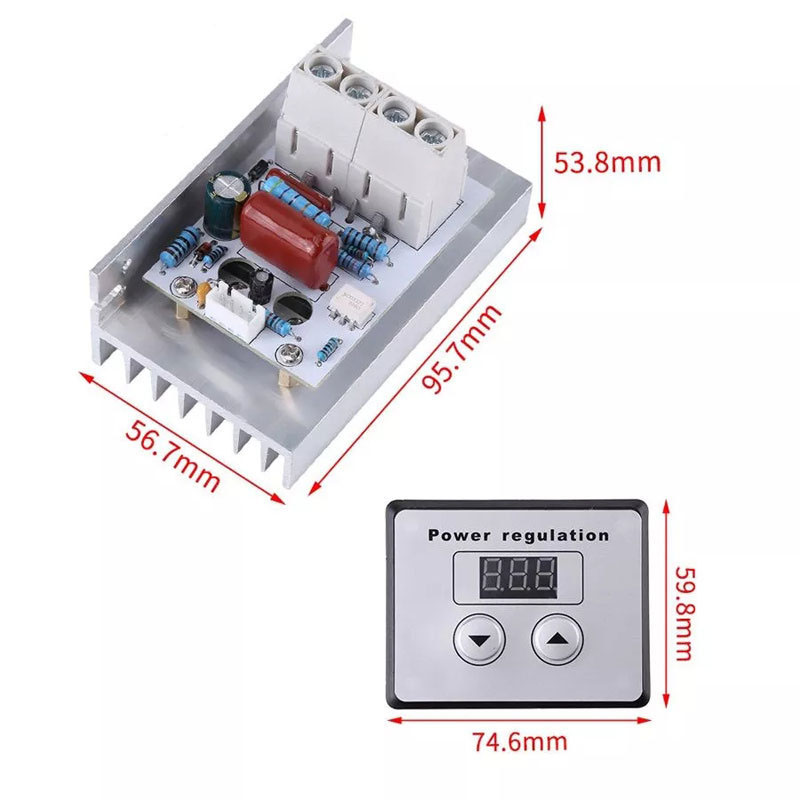

● Controller size: 95.7 * 56.7 * 53.8mm/3.76 * 2.23 * 2.11“

● Panel size: 74.6 * 59.8 * 2.3mm/2.93 * 2.35 * 0.09“

● Cable length: 287mm/11.3“

Attention:

1. AC input, AC output, output voltage below (or equal to) input voltage; The voltage can only be adjusted when connected to the load; Mainly used for resistive loads.

2. It cannot replace the charger of the electric bicycle, nor drive the electrical appliances using the switching power supply (such as 110V TV, speakers, refrigerators, air conditioners, Rice cooker, etc.), nor drive the Induction cooking and energy-saving lamps.
