12v To 24v Boost Charging Module 5A DC Adjustable Step-up High Power Digital Display 90W Battery ChargingItem NO.: MK00436

12v To 24v Step-up Charging Module

Product Highlights:

1. The button can completely turn off the output. Due to the special boost architecture, the output voltage of the traditional boost module after turning off is the input voltage. This product overcomes this problem

2. Strong self-protection ability. Traditional boost modules are easy to burn out when starting with load, setting the output voltage lower than the input voltage, and adjusting the output voltage too high. This module overcomes these problems and adds more protection functions, such as anti reverse protection at the input end, which will not burn out during reverse connection. It has anti backflow function and can be directly connected to the battery for charging. Additionally, it has over power, over current, and over voltage protection

3. Wide voltage range, up to 50V voltage boost

Product Parameters:

● Input voltage: DC 9-45V (when the input current is high, pay attention to the voltage divider on the input power line)

● Output voltage: DC 11-50V, factory default output is around 15V (if the input voltage is higher than the output voltage, the ERR interface will be displayed, and the output voltage can be adjusted up)

● Output current: maximum 5A (less than 90W), output above 5A or 90W, automatic protection

● Output power: Natural heat dissipation 90W (within 5A)

● Voltage display: Resolution of 0.05V, range of 0-50V, actual error of ± 0.3V (customers with strict accuracy requirements should be cautious!)

● Current display: resolution 0.005A, range 0-5A, actual error ± 0.1A (customers with strict accuracy requirements should be cautious!)

● Working current: about 30mA

● Input reverse protection: Yes

● Output end anti backflow: Yes

● Short circuit protection: Yes

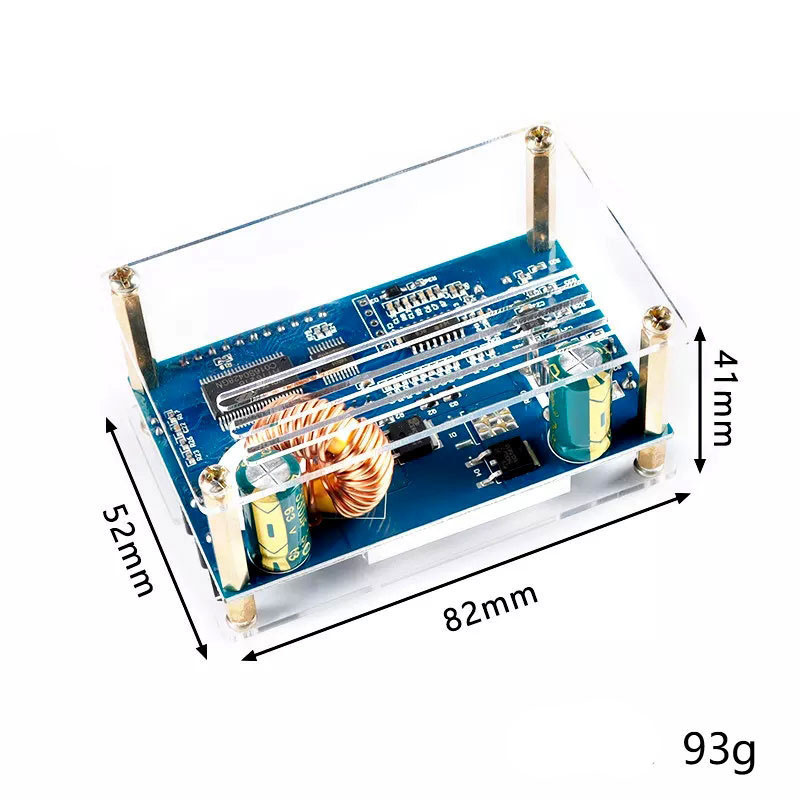

● Size: length * width * height 82 * 52 * 41mm

● Weight: 93g
