Adjustable Automatic Buck-Boost Power Supply Module CV And CC LCD With Shell Solar Charging Step-Down SEP4Item NO.: MK03093(XY-SEP4)
-
Customized Requirements
- Quantity
-
-
- Product Name: Adjustable Automatic Buck-Boost Power Supply Module CV And CC LCD With Shell Solar Charging Step-Down SEP4
- Item NO.: MK03093(XY-SEP4)
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: CV and CC , Adjustable Automatic Buck-Boost Power Supply Module , LCD With Shell Solar Charging Step-Down , SEP4
- Creation Time: 2024-05-13

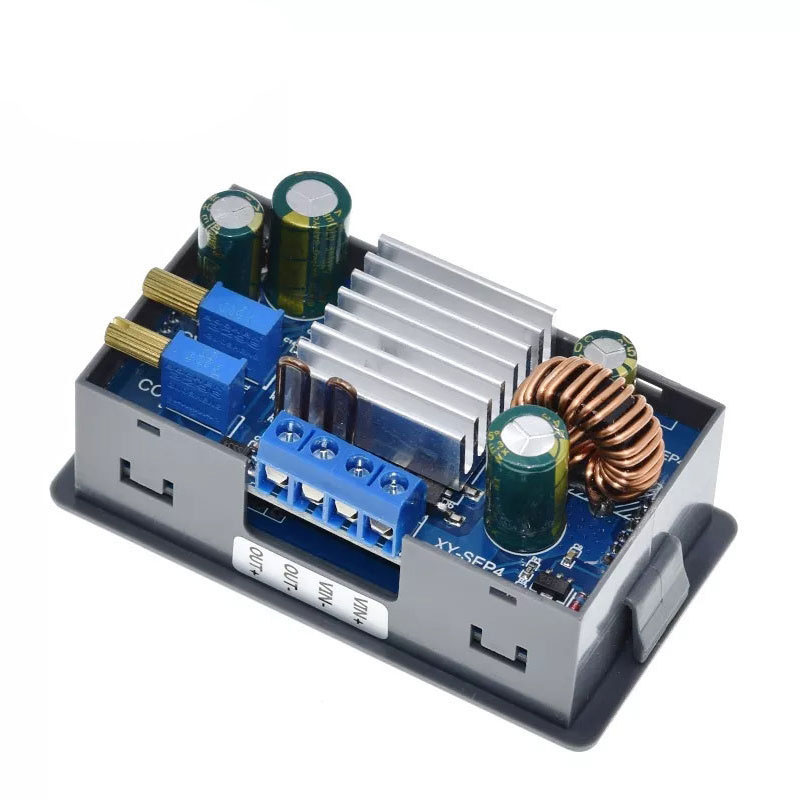

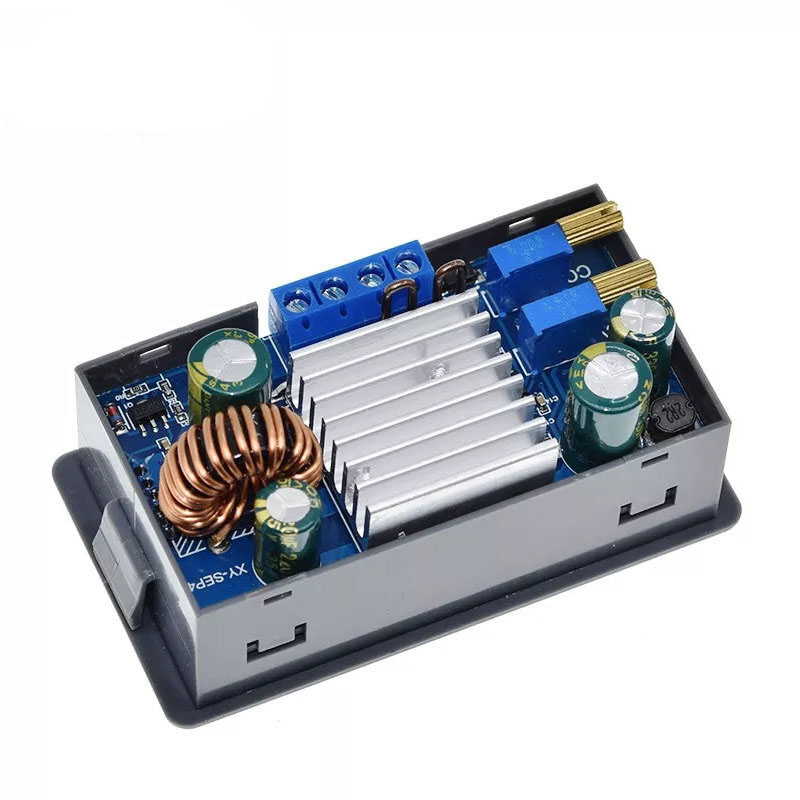

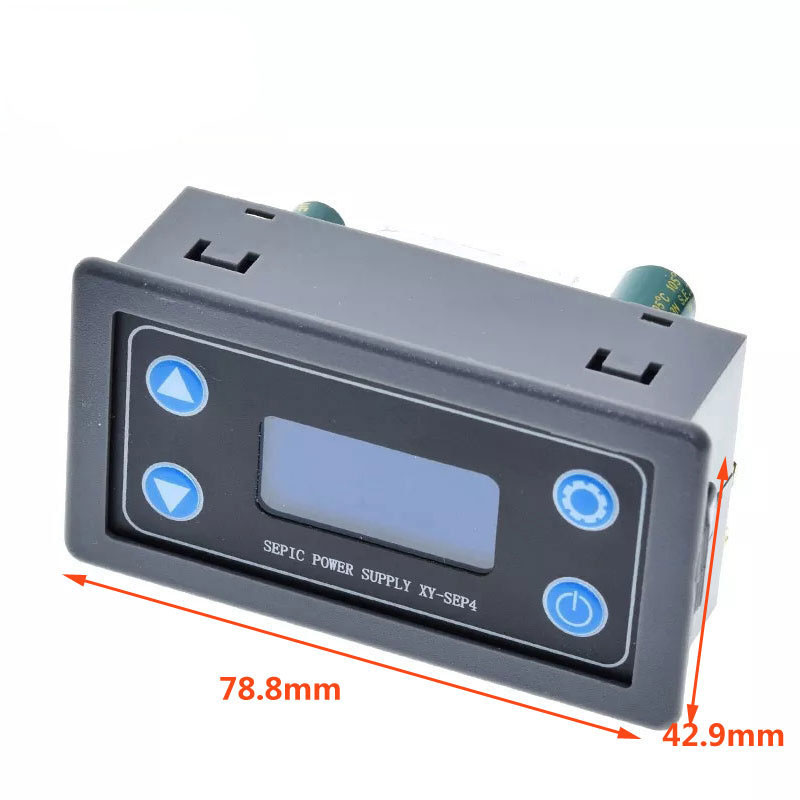

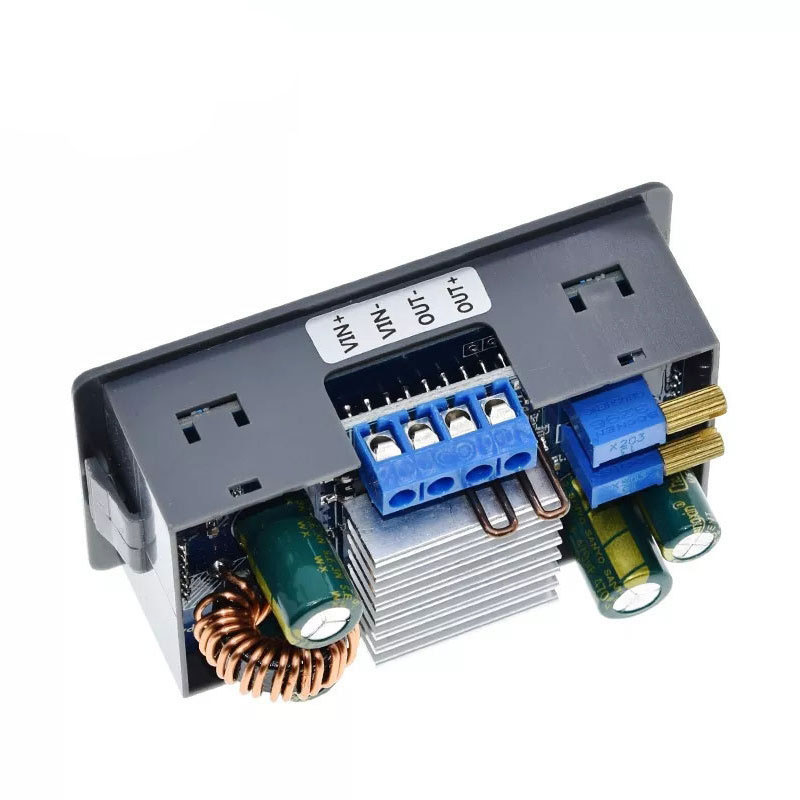

SEP4 Adjustable Automatic Buck Boost Power Supply Module
Product Highlights:
1. The product has a LCD display, clear interface, simple operation, and almost complete protection mechanism;
2. Hardware protection: Input end anti reverse connection protection, reverse connection does not burn; Short circuit protection at the output end, short circuiting without burning; The output end is anti backflow, and there is no need to add an anti backflow diode when charging the battery;
3. Software protection: Over voltage protection (OVP), Over current protection (OCP), Over power protection (OPP), Over temperature protection (OTP), Input Under voltage protection (LVP);
4. Full use of materials, stable performance, and wide range of applications.
Product Parameters:
● Input voltage: DC5.0V-30V (with undervoltage protection LVP below 4.7V)
● Output voltage: DC0.5V-30V
● Output current: 0-4.0A
● Output power: 35W under natural heat dissipation, up to 50W with air cooling
● Voltage accuracy: ± 1%+1 words, resolution: 0.01V, self calibrating
● Current accuracy: ± 1.5%+3 words, resolution: 0.001A, self calibrating
● Conversion efficiency: around 88%
● Soft start: Yes
● Input reverse protection: Yes, reverse connection does not burn
● Output end anti backflow: Yes, it can be directly connected to the battery
● Output short circuit protection: Yes, the output terminal can be directly short circuited
● Temperature protection (OTP): Yes, 100 ℃
● Operating frequency: 180KHZ
