Home>Electronic Modules>Audio Amplifier >PAM8610 Mini Amplifier Board TDA2030 12V 10W Pure D-Class Stereo Amplifier
PAM8610 Mini Amplifier Board TDA2030 12V 10W Pure D-Class Stereo Amplifier

PAM8610 Mini Amplifier Board TDA2030 12V 10W Pure D-Class Stereo AmplifierItem NO.: PAM8610 RED 2x10W

US$ 4.81
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
PAM8610 Mini Amplifier Board TDA2030 12V 10W Pure D-Class Stereo Amplifier
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy

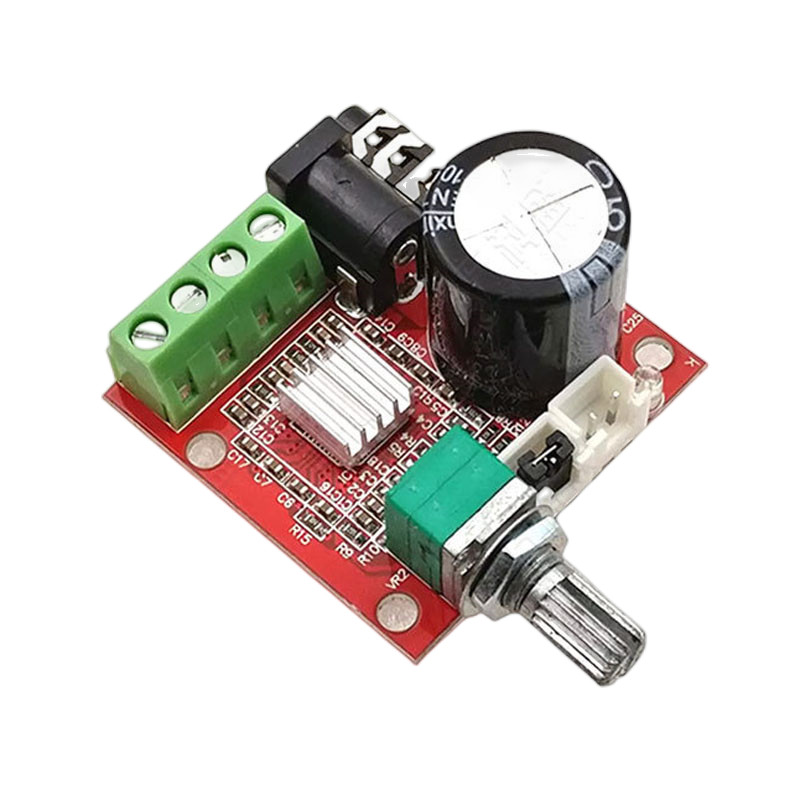

  • PAM8610 Mini Power Amplifier Board



    Product Information:



    1. Using the original PAM8610 chip as the power amplifier chip, the power can reach 10W+10W.

    2. As the pure Class D power amplifier board has high requirements for power supply, this power amplifier board specially uses a 2200UF capacitor with a fever level for filtering to completely eliminate the AC sound, without interference and with pure sound quality.

    3. The circuit board is more beautiful by using the automatic chip mounter.

    4. The board is equipped with 5.5X2.5 standard power socket, which is convenient for power input. (Internal positive pole and external negative pole)



    Pure D chips can open music without heat sink. Now we also add heat sink to the chip, so we don't need to worry about overheating.! Built in startup impact sound elimination circuit, no startup impact sound



    When the power supply voltage is DC 8V-12V, the PAM8610 can provide 10W+10W output power to the 4 Ω load with high-quality sound quality.



    The board is compact, with a standard 3.5MM stereo audio input interface, which is very convenient for audio source input. With a fully enclosed volume adjustment potentiometer, you can adjust the volume as you want. It is very flexible and convenient to use and install



    Technical Parameters:



    ● Power: typically 10W

    ● Voltage: DC 8V-12V

    ● Driving horn: 10W-15W, 4 Ω - 8 Ω

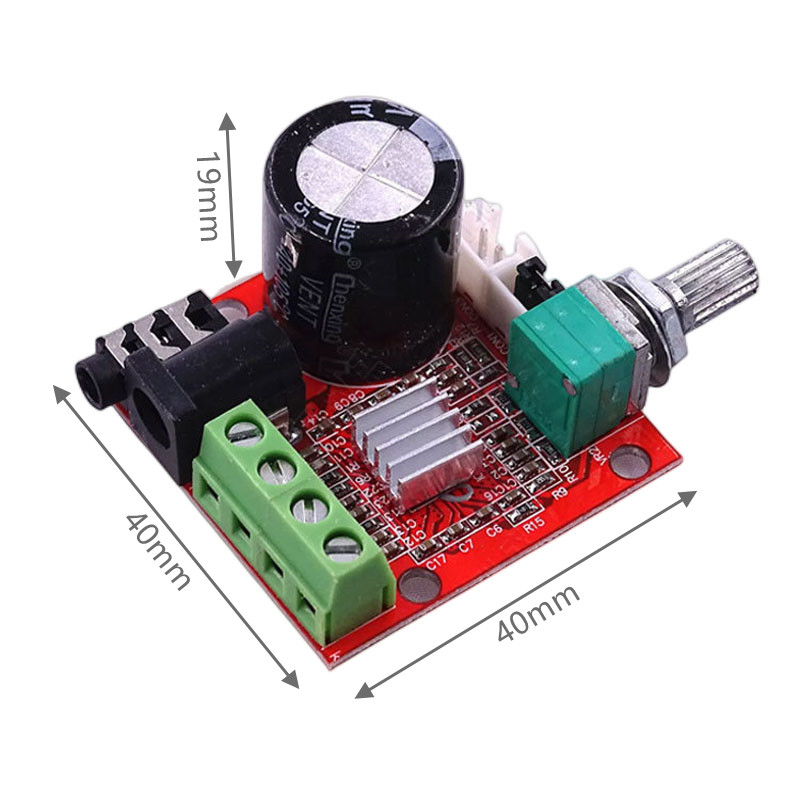

    ● Size: 40mm long x 40mm wide x 19 high (excluding volume potentiometer and other projecting parts)
