150W High Power PWM DC Motor Governor 5V12V24V Digital Display Encoder Duty Cycle Frequency Shell Switch ZK-MG

150W High Power PWM DC Motor Governor 5V12V24V Digital Display Encoder Duty Cycle Frequency Shell Switch ZK-MGItem NO.: ZK-MG

US$ 7.63
Quantity
1Pcs
10Pcs
100Pcs
1000Pcs
5000Pcs
Customized Requirements
Quantity
Adding to cart succeed
150W High Power PWM DC Motor Governor 5V12V24V Digital Display Encoder Duty Cycle Frequency Shell Switch ZK-MG
color:red,size:xxl
Subtotal: US$ 0
View My Cart

Copy and share this link on social network or send it to your friends

Copy

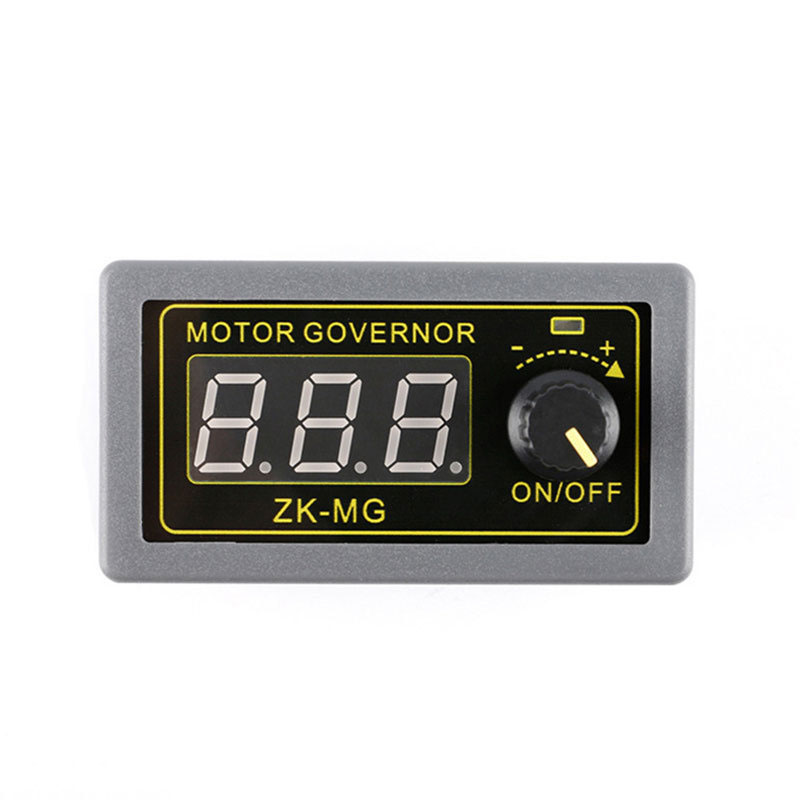

  • ZK-MG PWM DC Motor Governor



    Product Highlights:



    1. Equipped with a start stop button and can be controlled by an external switch, meeting various control needs of customers

    2. Soft start function of the motor, which slowly increases the current when starting the motor without any impact current, effectively protecting the motor and extending its service life

    3. The duty cycle, upper and lower limits of duty cycle, and operating frequency can be set, making it convenient for customers to operate and use according to the working characteristics of their own motors.

    4. The digital encoder knob adjusts the motor speed, with higher precision and better consistency than the ordinary Potentiometer.

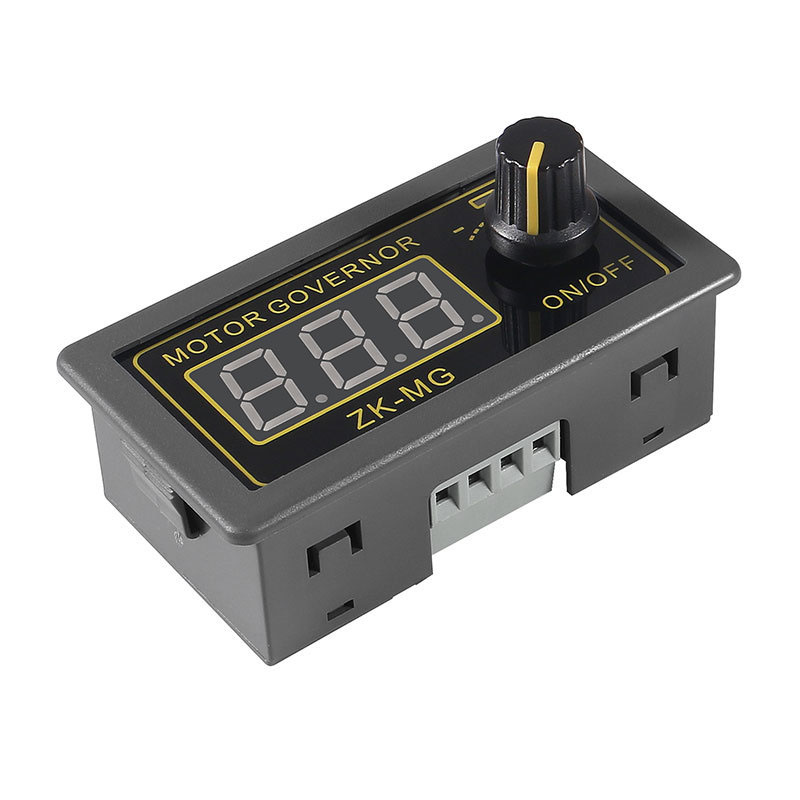

    5. Equipped with a standard 5135 instrument casing for easy installation by customers.



    Technical Parameters:

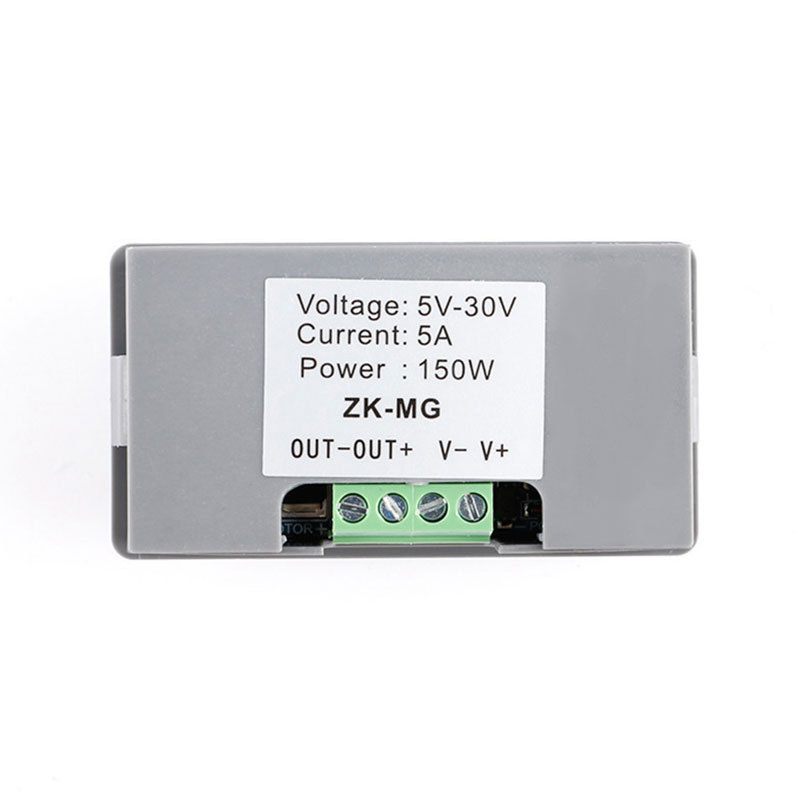

    1. Working voltage: DC5V~30V, input anti reverse protection

    2. Rated current: 5A, maximum current 15A

    3. Maximum power: 150W

    4. Working frequency: 1KHz~99KHz adjustable, 1KHz step by step, default frequency of 20KHz, accuracy of about 1%

    5 Duty cycle: 0-100%, 1% step

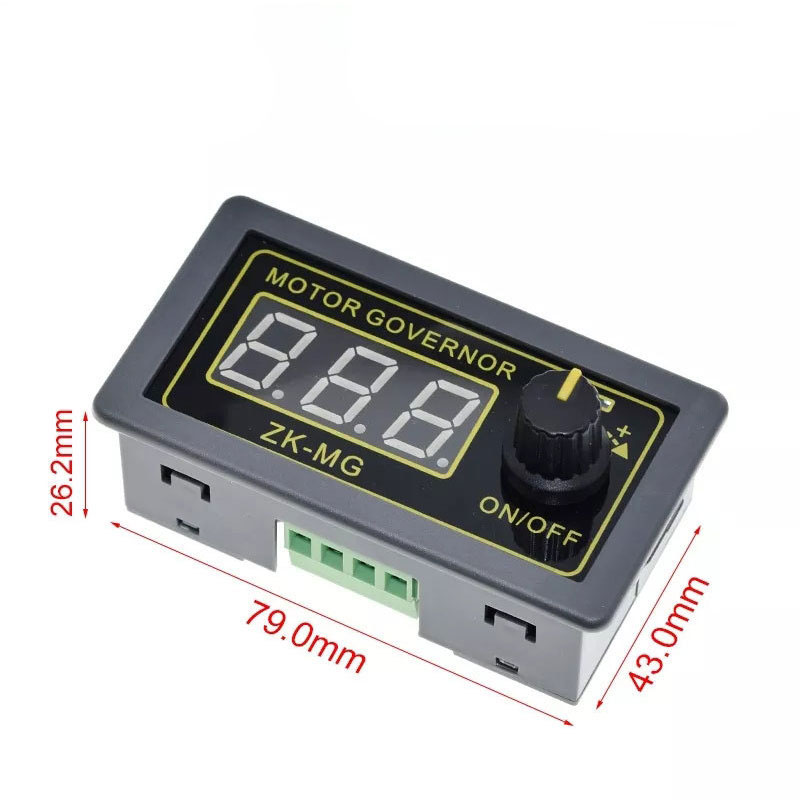

    Product size: 79mm * 43mm * 26mm

    7 Product weight: 41g

    8 Packaging form: paper box packaging
