PWM DC Motor Motor Speed Controller 12V24V36V48V20A High Power DC Controller WaterproofItem NO.: MK00101
-
Customized Requirements
- Quantity
-
-
- Product Name: PWM DC Motor Motor Speed Controller 12V24V36V48V20A High Power DC Controller Waterproof
- Item NO.: MK00101
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 20A , Waterproof , 12V24V36V48V , PWM DC Motor Motor Speed Controller
- Creation Time: 2024-05-27

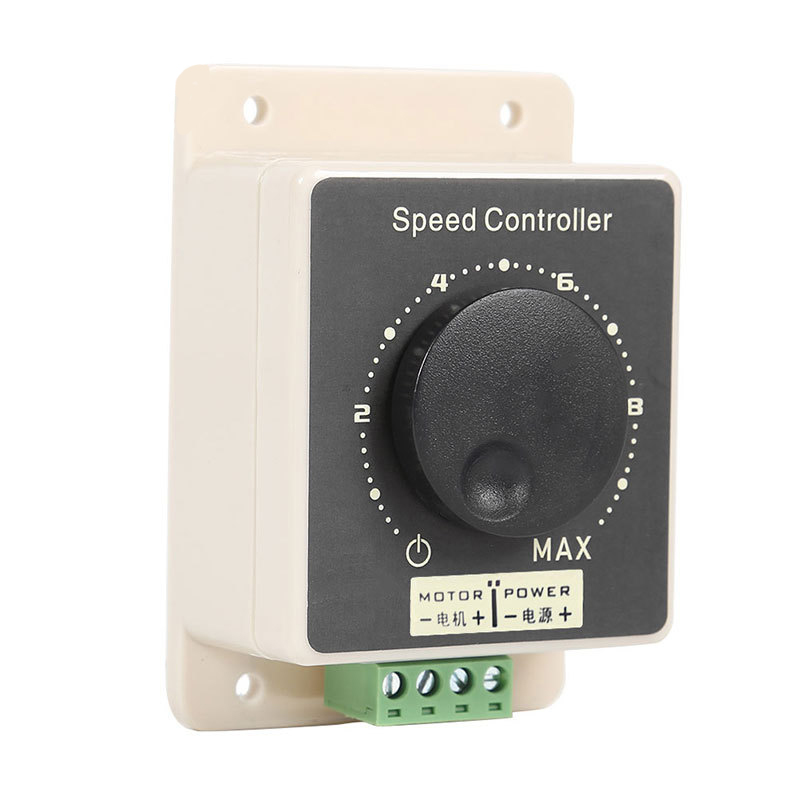

PWM DC Motor Speed Controller 20A
Technical Parameters:

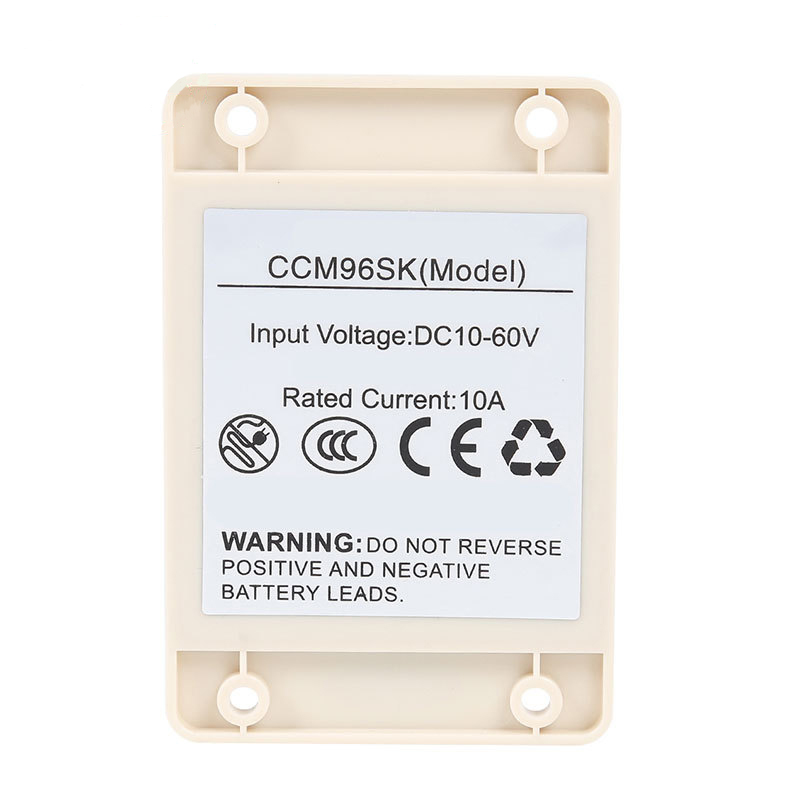

● Model: CCM96SK
● Input voltage: DC 10V-60V
● Control power: 12V * 10A=120W, 24V * 10A=240W
● Rated current: 10A
● Maximum current: 20A
● Speed regulation range: 5% -100%
● PWM frequency: 25KHZ
● Potentiometer: resistance B100K, opening 8mm
● The output voltage is approximately 0-100% of the input voltage

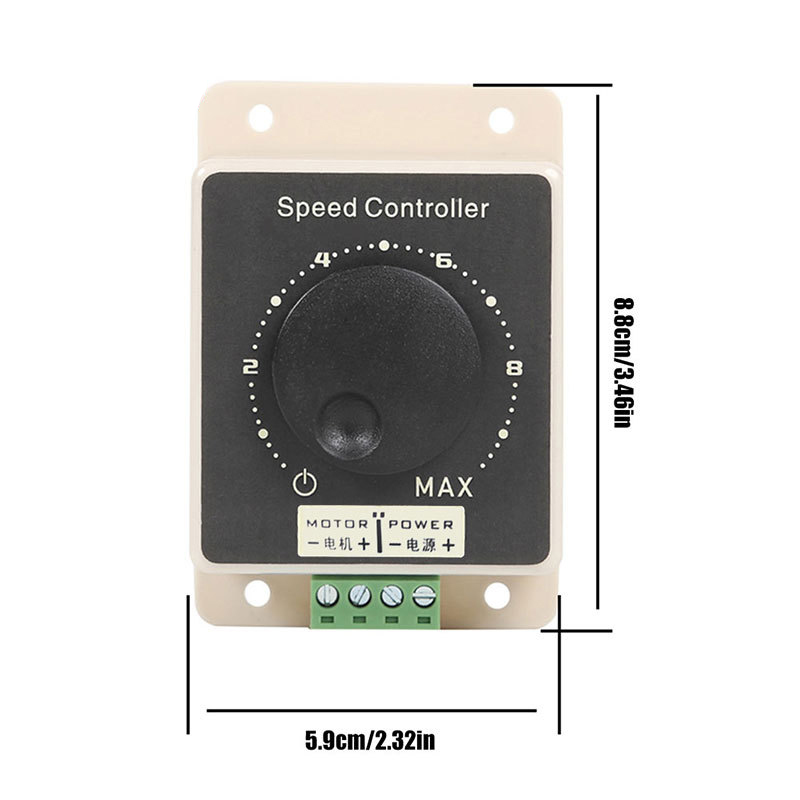

● Size: 88mm * 59mm * 35mm
● Weight: 94g
Precautions:
1. The input of the DC motor governor is DC power, and it cannot be directly connected to AC power (such as household 220 AC power), otherwise it will burn out!!!
2. Do not reverse connect the positive and negative terminals of the DC power supply, otherwise the governor may be damaged.
3. The motor can distinguish between positive and negative, and when the running direction is not consistent with the expected direction, the direction can be changed by adjusting the line sequence.
4. Adjusting the Potentiometer knob can change the duty cycle of the governor output, thus changing the motor speed.
