PWM DC Motor Speed Controller 15A 12V24V36V Controller Overcurrent Overload Stall Protection Speed Control BoardItem NO.: MK02192
-
Customized Requirements
- Quantity
-
-
- Product Name: PWM DC Motor Speed Controller 15A 12V24V36V Controller Overcurrent Overload Stall Protection Speed Control Board
- Item NO.: MK02192
- Weight: 0.1 kg = 0.2205 lb = 3.5274 oz
- Category: Electronic Modules > Power Module
- Tag: 15A , Speed Control Board , PWM DC Motor Speed Controller , 12V24V36V , Controller , Overcurrent Overload Stall Protection
- Creation Time: 2024-05-27

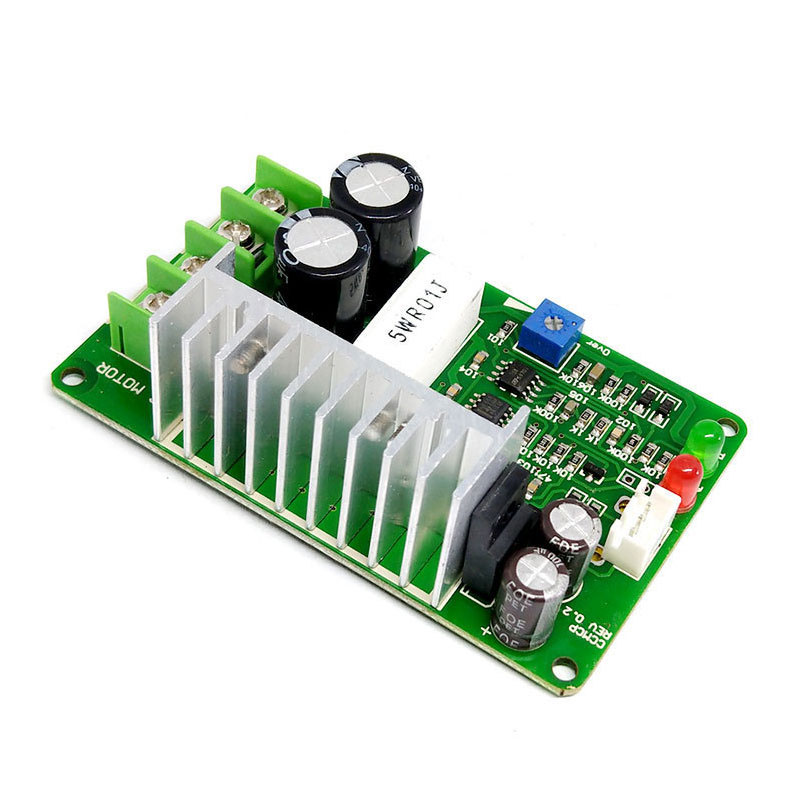

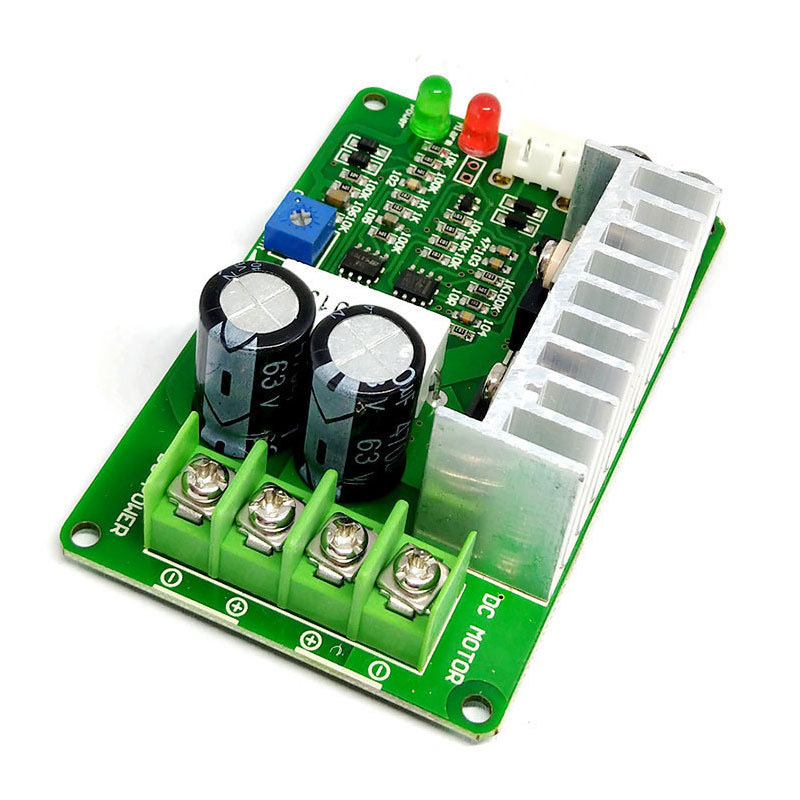

PWM DC Motor Speed Controller 15A
Product Information:
Most DC motor governors on the market are just a PWM generator circuit with a drive power transistor, and even with overcurrent protection, a fuse is added. If the A number of the fuse is large, the fuse is still intact when the motor is blocked or damaged. If the A number of the fuse is small, multiple fuse replacements will occur. Although the fuse is not expensive, most users still need to spend time and effort.
If the default fuse on the governor is 10A, and your motor has a maximum current of 1A, then even if the motor breaks, the governor's fuse will not break! Buyers who have purchased this type of governor cannot replace a 1A fuse in advance! So for general-purpose products, fuses are not reliable.
The new technology has solved this problem. The CCMCP type governor is a brand new product with adjustable current protection, 1-10A, freely set!
Product Technical Parameters:
● Voltage range: DC 10V-40V (recommended for use between DC 12V-36V)
● Current usage: Rated current 10A, maximum current 15A (adjustable within the range of current limiting protection 1A-10A) Note: The factory time limit current adjustment is unified to the minimum position 1A protection (adjustable range of current limiting protection 1A-10A, protection delay about 1 second)
● Speed regulation range: 0-100%
● PWM frequency 21KHz
● With power indicator light and current limiting protection indicator light
● Suitable for motors with 12V less than 120W and 24V less than 200W
● Current regulation: If the red light is on during the motor startup, please turn off the power supply, adjust the adjusting Potentiometer clockwise to the appropriate position, and then power on again. When the Potentiometer is adjusted counterclockwise, the overload protection current is 1A. When the Potentiometer is adjusted clockwise to the maximum, the overload protection current is 10A, and the protection delay is about 1s.
● Product size: 85.5 * 54 * 27 mm
● Net weight: 68g
